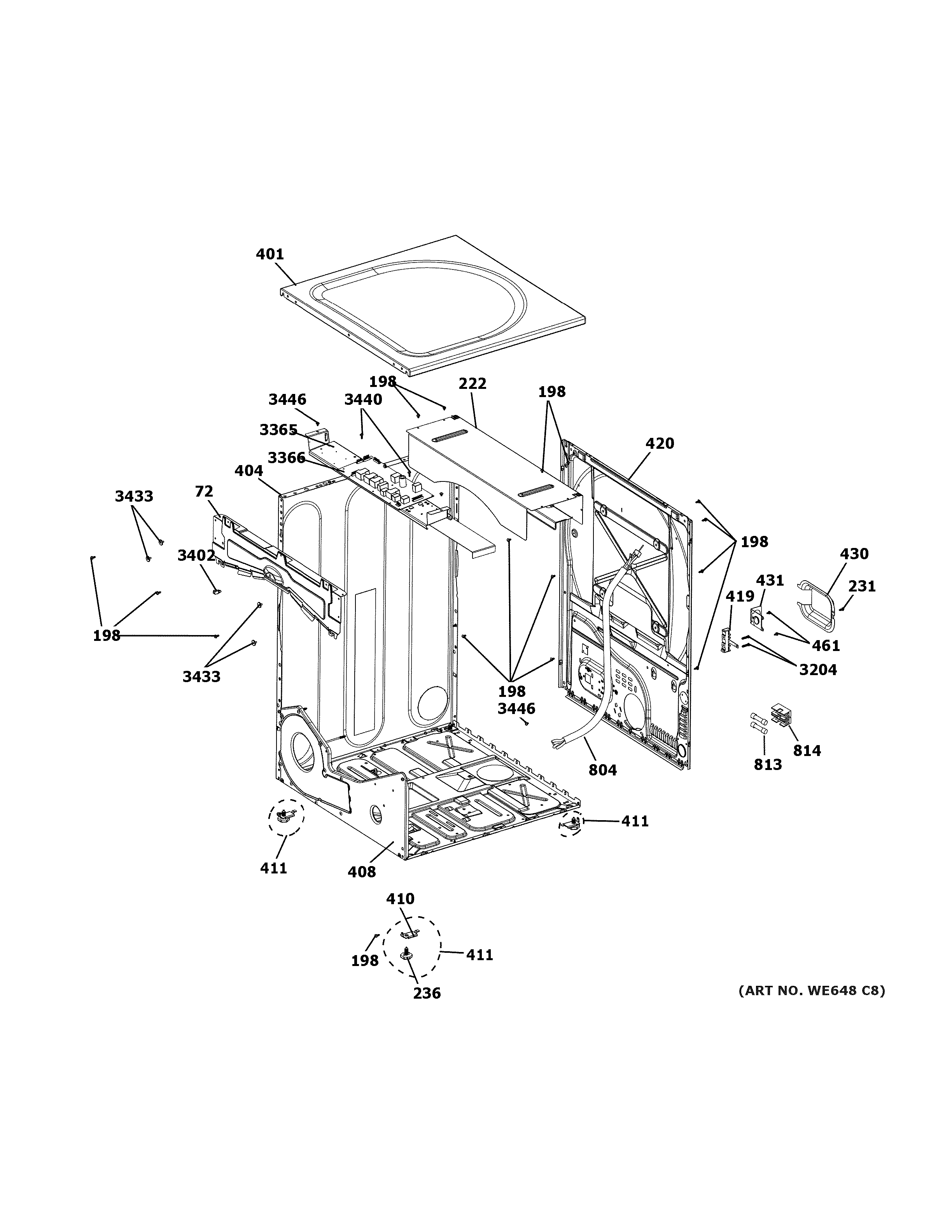

GFDL110EH0WW CABINET & TOP PANEL

GFDL110EH0WW CABINET & TOP PANEL

Written by

in

GFDL110EH0WW CABINET & TOP PANEL

Products

PositionProduct
72WE01M10003 GE Shield Front
198WE01X25535 GE Screw
222WE1M585 GE Rear Plate
231WD02X10057 GE Dishwasher Screw 10-16 x 1
236WE1M642 GE Washer Leveling Leg
401WE20M10004 GE Panel
404WE20M400 GE White Side Panel
408WE20M429 GE Dryer Bottom Chassis
410WE1M528 GE Level Leg Rear Bracket
411WE1M468 GE Leveling Screw Bracket
419WE4M325 GE Dryer Terminal Block and Ground Strap
420WE20X20443 GE Rear Panel
430WE1M1007 GE Terminal Fuse Cover
431WE01X20423 GE Strain Relief Bracket
461WZ5X158D GE Screw Package of 12
804WE15X23360 GE Electrical Harness Assembly
813WE1M1002 GE Washer Fuse
814WE1M1003 GE Fuse Holder
3204WZ4X241D GE Screw Package
3365WE04M10011 GE Washer Main Power Board
3366WE1M864 GE Main Power Board
3402ENCLOSED SCREW GROMMET
3433WE2M278 GE Screw 8-18 AB PNQ2 1/4 S Z
3440WE2M173 GE Screw
3446WE2M223 GE Screw
