GFDN240GL1WW CABINET & TOP PANEL

GFDN240GL1WW CABINET & TOP PANEL

Written by

in

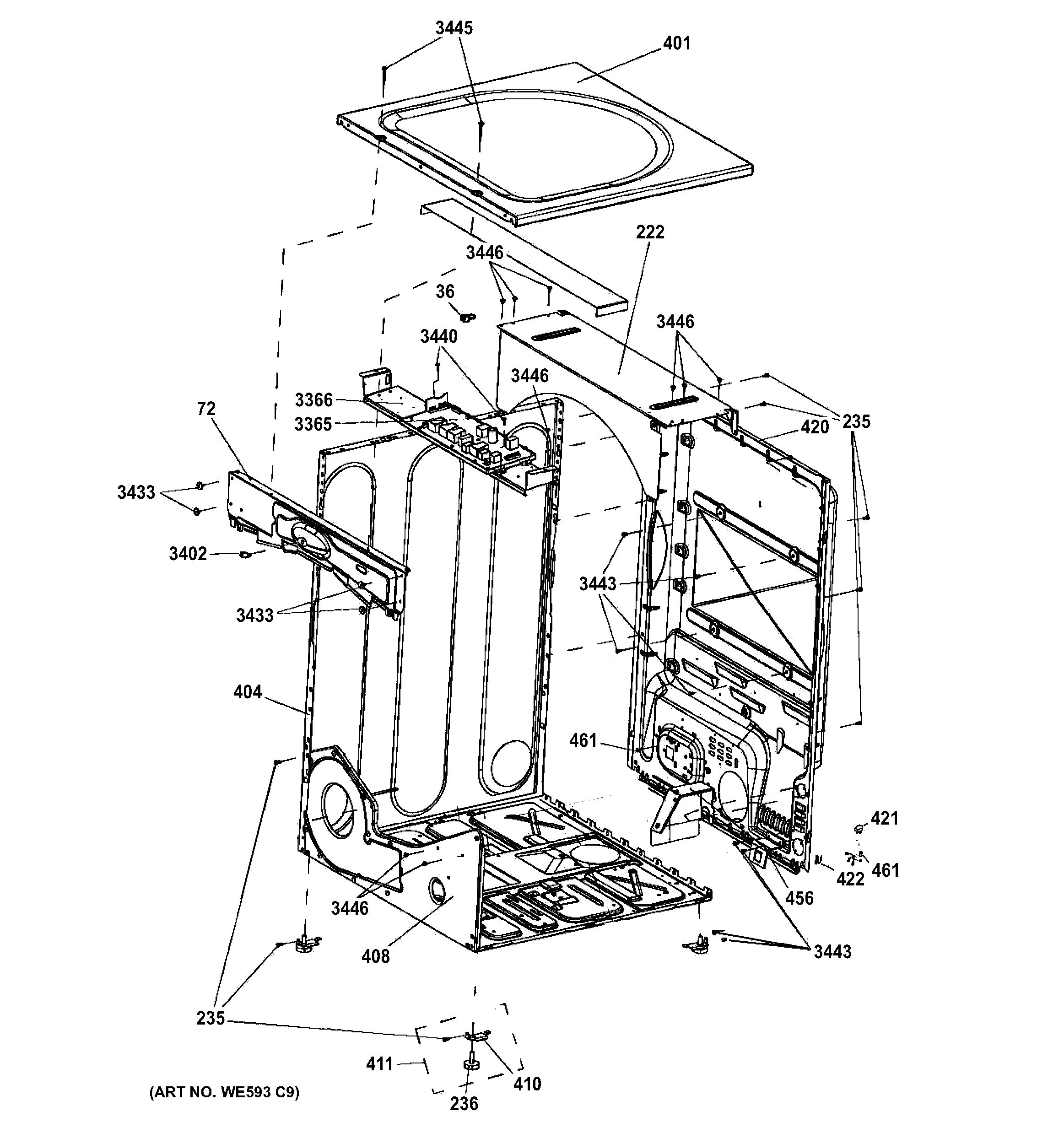

GFDN240GL1WW CABINET & TOP PANEL

Products

PositionProduct
36WD21X10024 GE Dryer Model Selector Connector
72GEN WE1M926
222WE1M585 GE Rear Plate
235WE2X263D GE Screw Package 12 C92
236WE1M642 GE Washer Leveling Leg
401GEN WE20M445
404WE20M400 GE White Side Panel
408WE20M429 GE Dryer Bottom Chassis
410WE1M528 GE Level Leg Rear Bracket
411WE1M468 GE Leveling Screw Bracket
420WE20X20443 GE Rear Panel
421WE26M345 GE Gas Power Cord (120V)
422CLIP CORDSET
456WE1X617 GE Pipe Clamp
461WZ5X158D GE Screw Package of 12
3365WE4M511 GE Main Power Board Assembly
3366WE1M864 GE Main Power Board
3402ENCLOSED SCREW GROMMET
3433WE2M278 GE Screw 8-18 AB PNQ2 1/4 S Z
3440WE2M173 GE Screw
3443WE1M280 GE Screw
3445WE02X25454 GE Screw 10-16 A TRQ2 1-1/4 S
3446WE2M223 GE Screw
