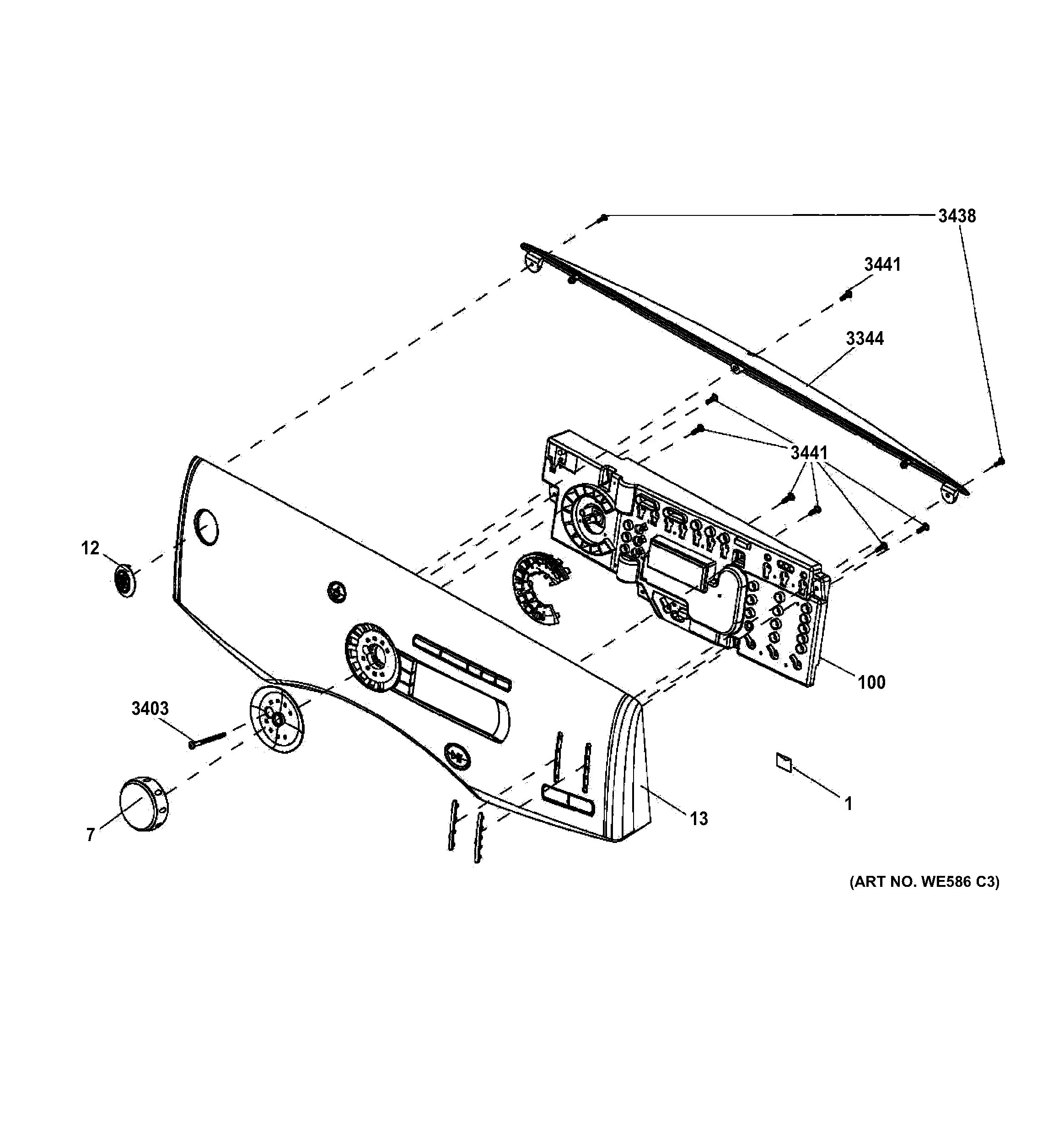

GFDN245EL1MS CONTROL PANEL

GFDN245EL1MS CONTROL PANEL

Written by

in

GFDN245EL1MS CONTROL PANEL

Products

PositionProduct
1GEN 31-16629-2
1WE11M10002 GE Heater Housing
1MINI MANUAL
1GEN 49-90394-2
7KNOB ASM WH
12BADGE (GE) MG
13WE19M1669 GE Control Panel Assembly
100WE4M513 GE User Interface Board Assembly
3344GEN WE19M1659
3403WE2M264 GE Knob Center Screw Assembly
3438SCR 6-16 B PNP 3/8 S ZN
3441WE2M211 GE Front Screw
