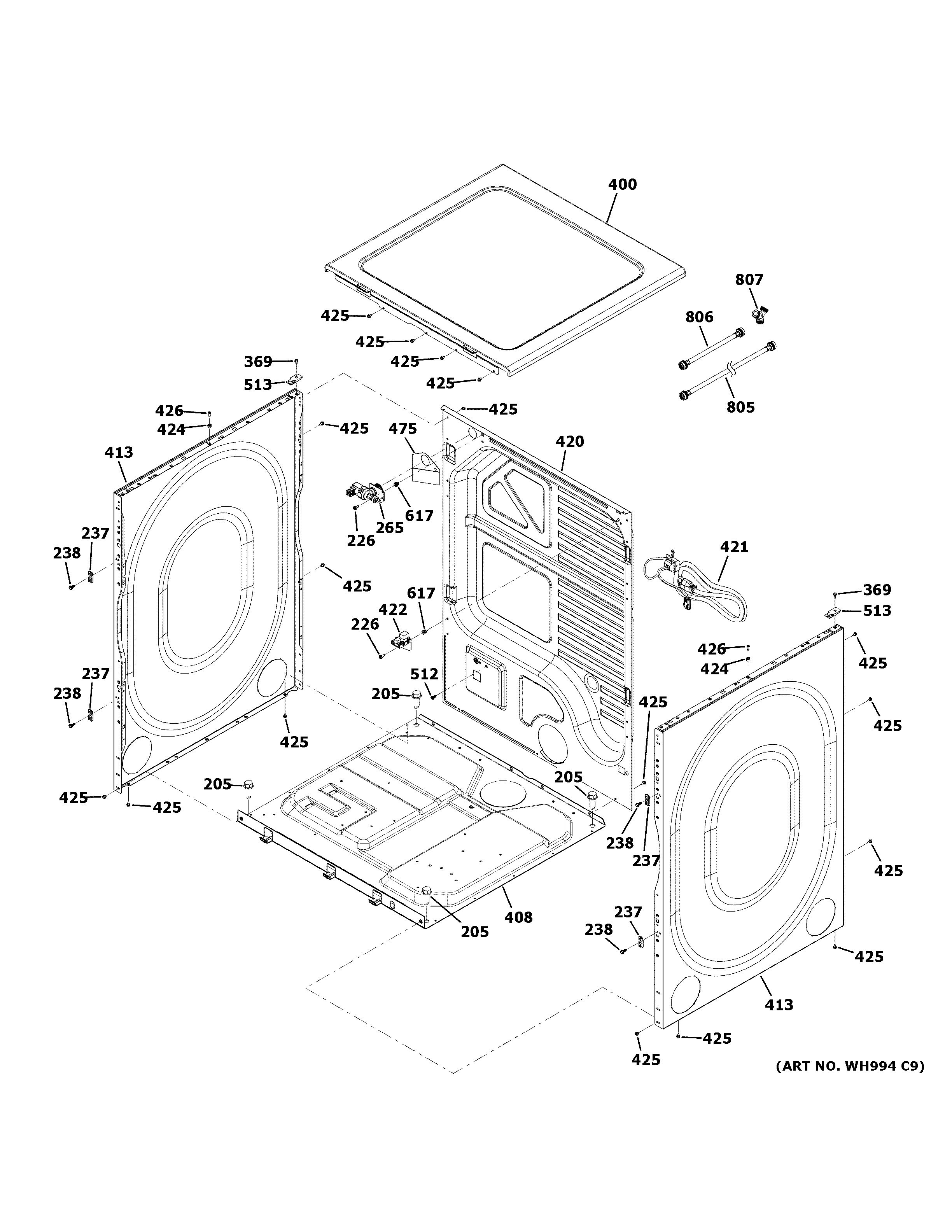

GFDR270GH0WW CABINET & TOP PANEL

GFDR270GH0WW CABINET & TOP PANEL

Written by

in

GFDR270GH0WW CABINET & TOP PANEL

Products

PositionProduct
205WH02X10397 GE Riser Bolt Attachment
226WH2X1205 GE Screw 8-18
237WH01X10733 GE Front Support Pin
238WD02X10151 GE Dishwasher Screw 10-16 AB 43WHEX 5/8
265WE04X10186 GE Steam Valve
369WH2X1217 GE Screw Assembly
400PANEL TOP ASM (WH)
408BASE ASM
413PANEL SIDE (WH)
420PANEL REAR
421WE08X10083 GE Gas Power Cord
422WH12X28437 GE RJ45 Assembly
424WE01X10407 GE Top Panel Bushing
425WE02X10106 GE Screw 8-18 AB HxW 3/8 S
426WB01T10115 GE Oven Screw 1/2" 8-18 AB HW
475WE01X10383 GE Water Valve Shield
512WE02X10107 GE Screw 10-32 GX HXW 7/16 S
513WE01X10408 GE Top Panel Holder
617WR2X8349 GE Screw Grommet
805WH41X10356 GE Intake Hose Assembly
806WH41X10357 GE Intake Hose Assembly
807WE01X10401 GE Y Adapter
