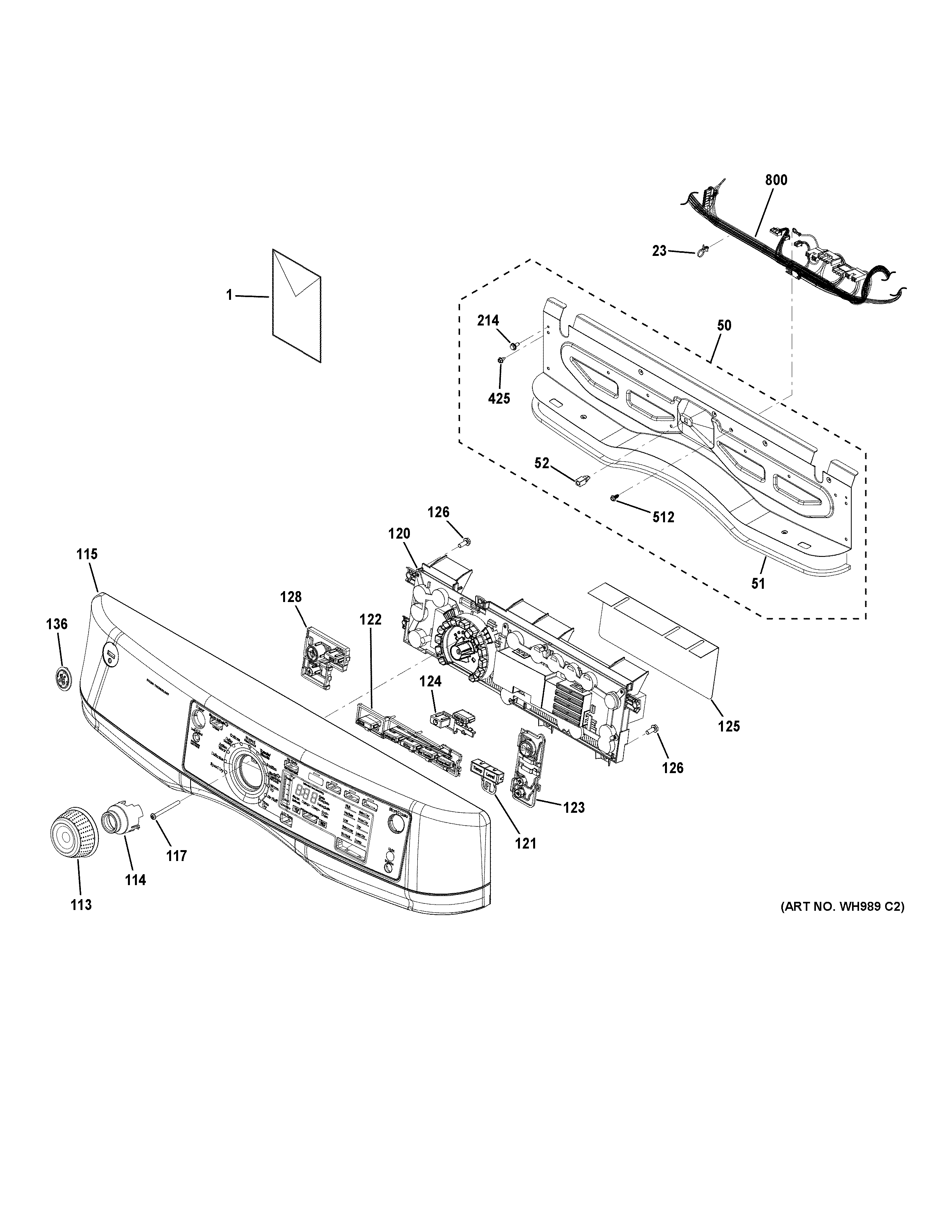

GFDR485GF0RR CONTROLS & BACKSPLASH

Products

PositionProduct
1PM SHEET MINI MANUAL
1PM GUIDE QUICK START
1PM OWNERS MANUAL
23WH01X10704 GE Wire Tie
50WE13X10049 GE Front Control Bracket Assembly
51FAN SEAL
52WE01X10403 GE Grommet
113WH01X10748 GE Dryer Rubber Knob Assembly
114WH01X10743 GE Washer Dryer Knob Retainer
115WE19X10089 GE Control Panel Assembly
117WH02X10408 GE Screw 8-18 AB PNP 2-1/8"
120WE04X23220 GE Dryer PCB Assembly
121WE01X10388 GE Button Tree Assembly-Temp
122WE01X10389 GE Button Tree Assembly
123WE01X10390 GE Button Tree Assembly-Start
124BUTTON TREE ASM-TIME
125WE01X10392 GE Cover UIMC
126WR01X10619 GE Refrigerator Screw
128WE01X10387 GE Power Button Tree Assembly
136WE19M10949 GE Badge
214WH02X10398 GE Screw Type A 10-16 SHLDR
425WE02X10106 GE Screw 8-18 AB HxW 3/8 S
512WE02X10107 GE Screw 10-32 GX HXW 7/16 S
800WE08X10084 GE Gas Main Harness
