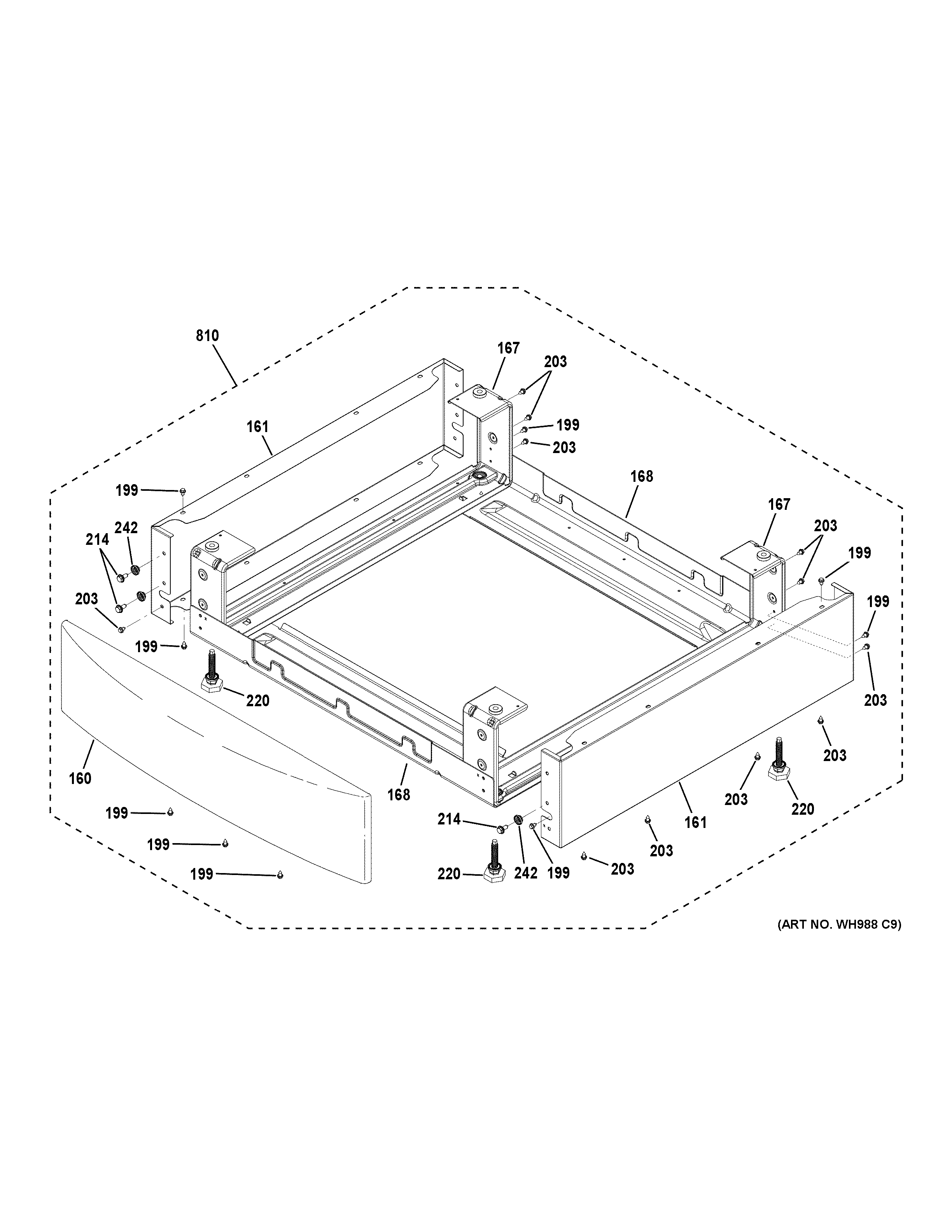

GFDR485GF1RR RISER ASSEMBLYadmin2025-04-26T10:29:46+00:00GFDR485GF1RR RISER ASSEMBLY ProductsPositionProduct160PANEL FRONT RISER ASM RD161WH46X10296 GE Riser Side Panel167WH10X10016 GE Riser Side Bracket Assembly168WH10X10017 GE Riser Cross Bracket Assembly199SCR 10-16 B HXW 3/8 S203WH02X10396 GE Screw 10-16 B HXW 3/8 S214WH02X10398 GE Screw Type A 10-16 SHLDR220WH02X10401 GE Levelling Leg Assembly242BUSH GUIDE PIN810WH10X20638 GE Riser Assembly
