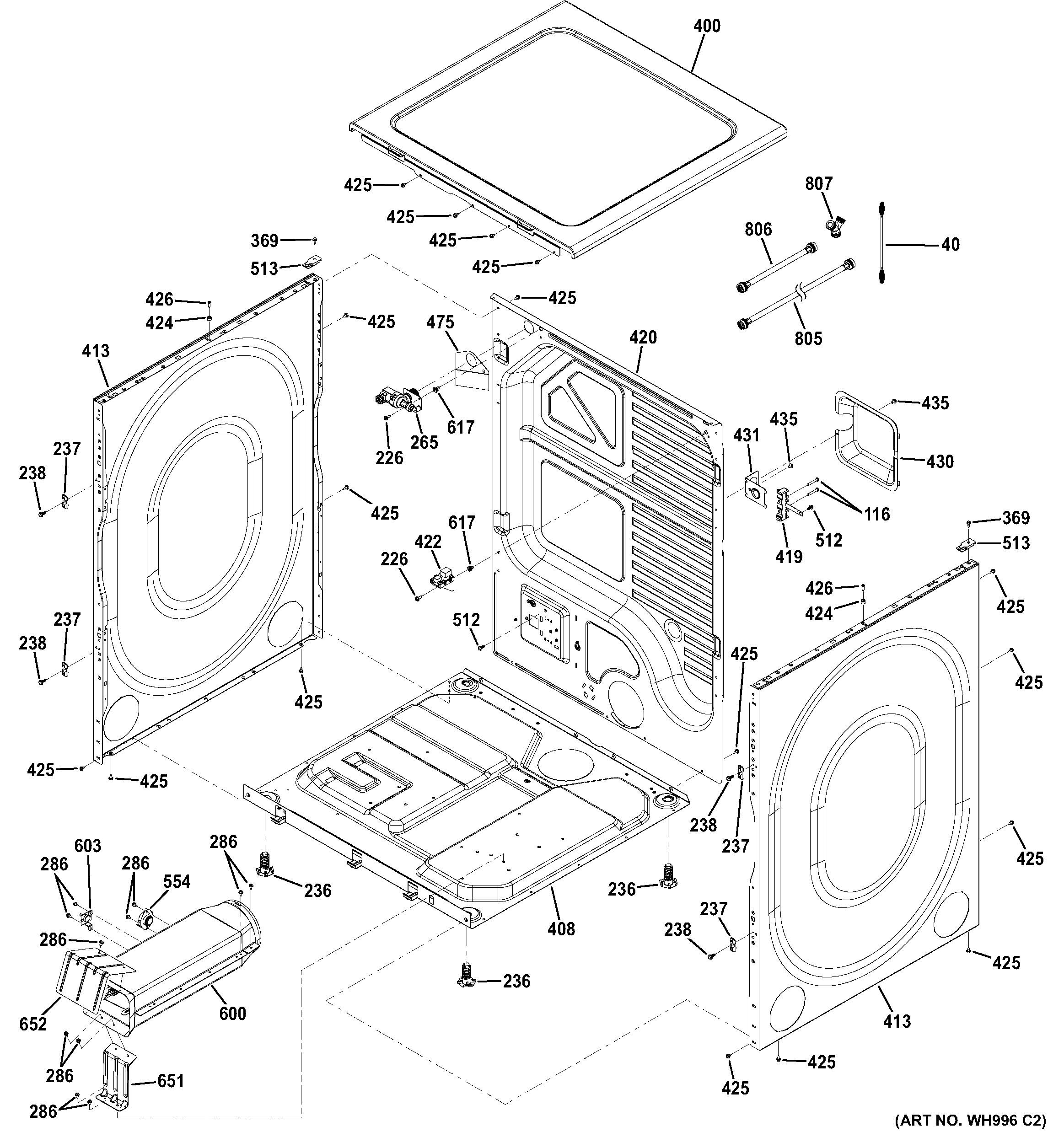

GFDS250EF0WW CABINET & TOP PANEL

GFDS250EF0WW CABINET & TOP PANEL

Written by

in

GFDS250EF0WW CABINET & TOP PANEL

Products

PositionProduct
116WH02X10403 GE Screw 8-18 AB PNP 1-1/4"
226WH2X1205 GE Screw 8-18
238WH01X10733 GE Front Support Pin
265WE04X10186 GE Steam Valve
286WH2X930 GE Screw
369WH2X1217 GE Screw Assembly
400GEN WE20X10147
408WE20X22234 GE Base Assembly
413PANEL SIDE (WH)
419WE04X10193 GE Terminal Block Assembly
420PANEL REAR
422WH12X28437 GE RJ45 Assembly
424WE01X10407 GE Top Panel Bushing
425WE02X10106 GE Screw 8-18 AB HxW 3/8 S
426WB01T10115 GE Oven Screw 1/2" 8-18 AB HW
430WE01X10411 GE Cover Terminal Block
431WE13X10057 GE Strain Relief Bracket
435WH02X10090 GE Screw 8-18 B HXW 5/16 S
475WE01X10383 GE Water Valve Shield
512WE02X10107 GE Screw 10-32 GX HXW 7/16 S
513WE01X10408 GE Top Panel Holder
554WE04X10192 GE Thermostat 2
600WE11X10025 GE Electric Heater Remote Assembly
603WE04X10187 GE High Limit Thermostat
617WR2X8349 GE Screw Grommet
651BRACKET HEATER
652WE13X10058 GE Electric Radiant Shield
805WH41X10356 GE Intake Hose Assembly
806WH41X10357 GE Intake Hose Assembly
807WE01X10401 GE Y Adapter
