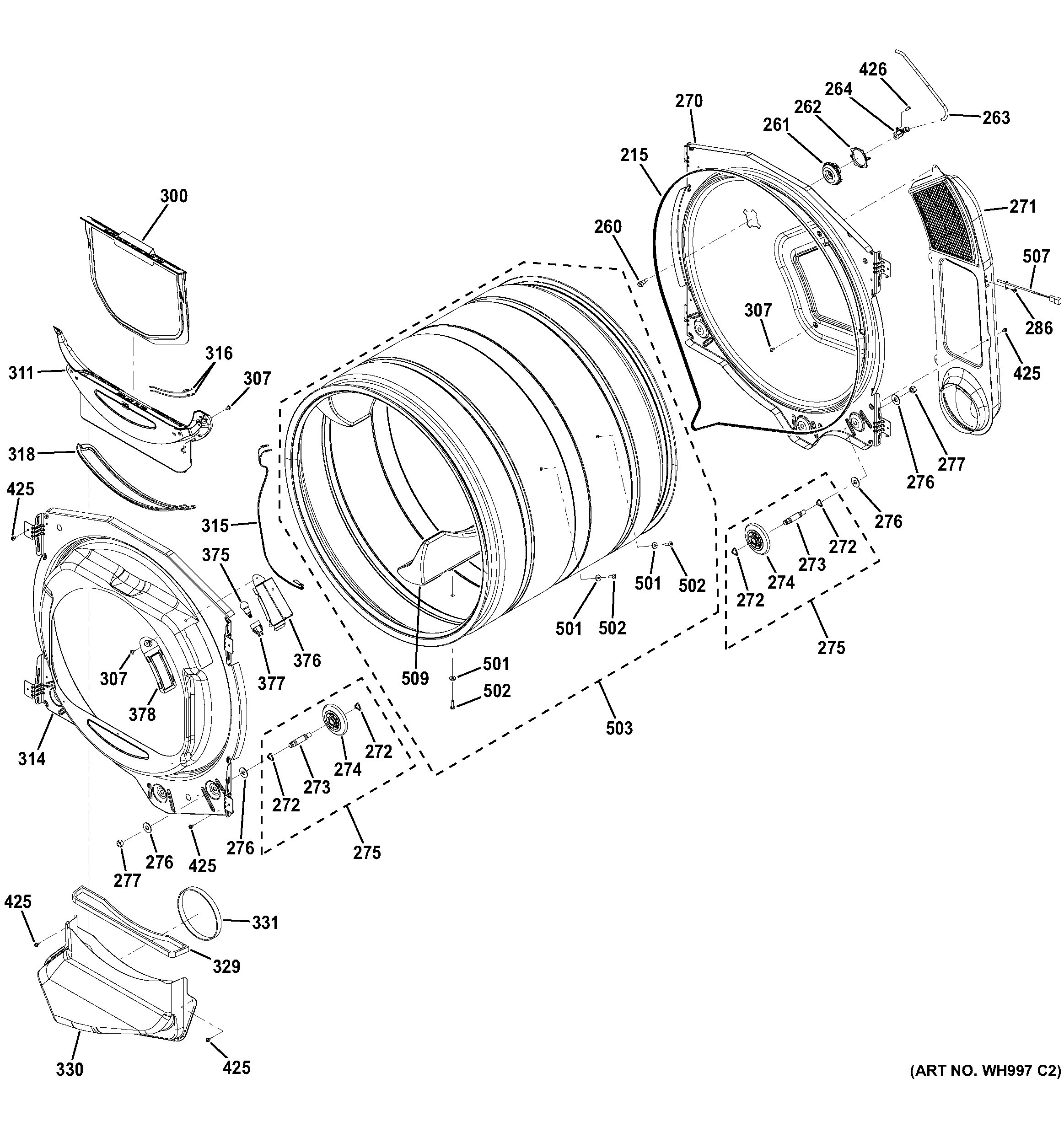

GFDS250EF0WW DRUM

Products

Position	Product
215	WE12X10020 GE Washer Drive Belt
260	WE01X10394 GE Mist Nozzle
261	PANEL TOP ASM (RD)
261	WE01X10396 GE Nozzle Cover
262	WE01X10398 GE Nozzle Cover Retainer
263	WE01X10420 GE Steam Tube
264	WE01X10395 GE Steam Elbow
270	WE20X10162 GE Rear Drum Support
271	WE14X10114 GE Duct Supply Assembly
274	ROLLER ASM WHEEL
276	WE01X10379 GE Dryer Steel Washer
277	WE01X10393 GE Steel Hex Nut
286	WH2X930 GE Screw
300	WE18X20428 GE Lint Screen Assembly
307	WE02X20373 GE Screw 8-18 AB PNT 15/2"
311	WE18X10021 GE Washer Grille Assembly
315	WE08X10087 GE Sensor Rod Harness
316	WE01X22114 GE Sensor Rod
318	WE09X10032 GE Fan Seal
329	WE09X10030 GE Duct Assembly Seal Trap
330	WE18X10022 GE Duct Trap Assembly
331	WE09X10029 GE Fan Seal
375	WE04X10195 GE Lamp
376	WE04X10194 GE Socket Light
377	HOUSING LAMP
378	COVER LIGHT
425	WE02X10106 GE Screw 8-18 AB HxW 3/8 S
426	WB01T10115 GE Oven Screw 1/2" 8-18 AB HW
501	WE01X20693 GE Washer Baffle
502	WH2X1194 GE Screw 10-18 PL
503	WE21X10026 GE Drum Assembly
507	GEN WE04X10181
509	WE14X10112 GE Baffle
