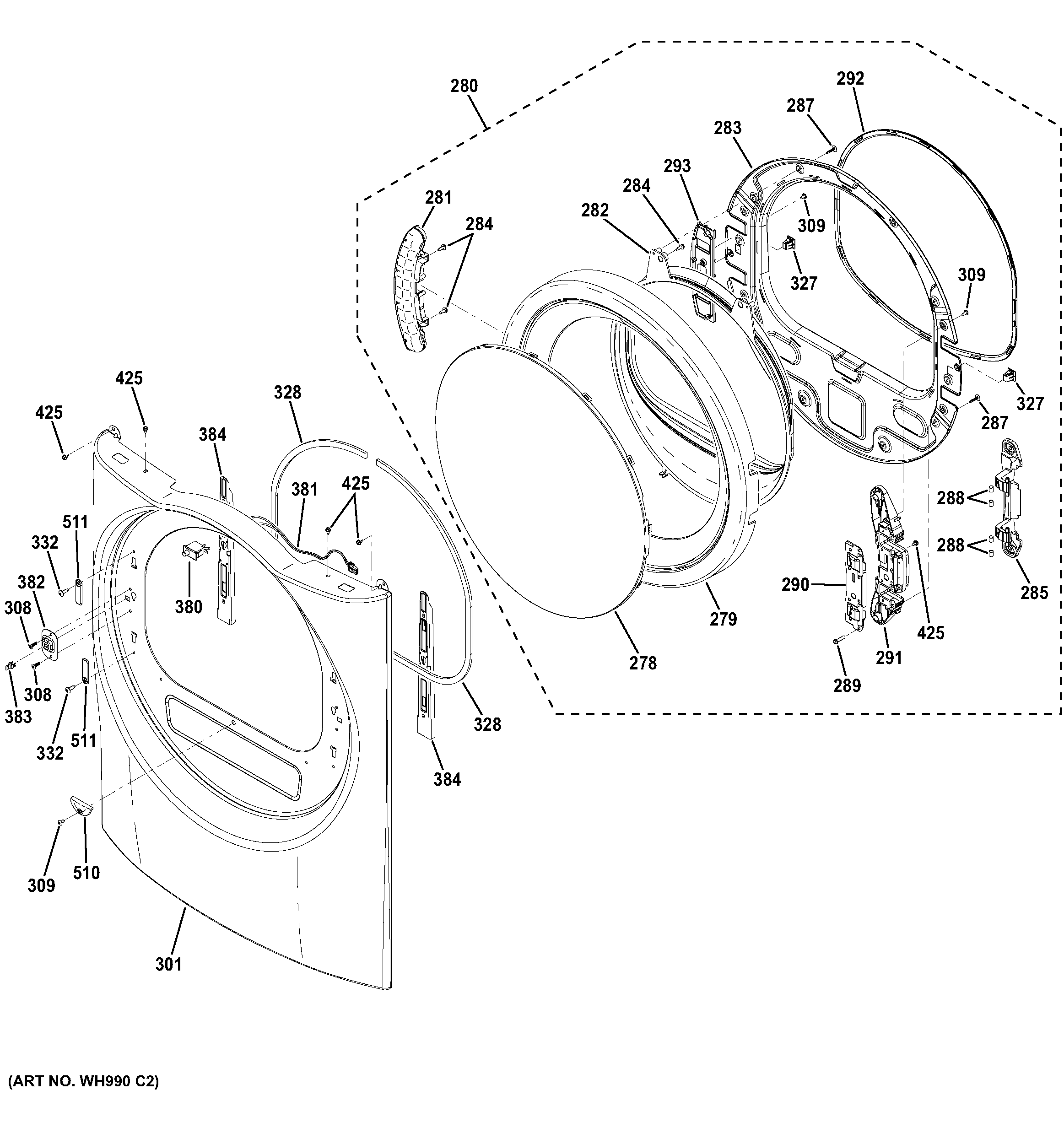

GFDS255EF0MC FRONT PANEL & DOOR

GFDS255EF0MC FRONT PANEL & DOOR

Written by

in

GFDS255EF0MC FRONT PANEL & DOOR

Products

PositionProduct
278WH44X21159 GE Door Cover Protector
279WH46X10284 GE Door Cover
280WE10X10030 GE Door Assembly
282MASK DOOR
283WE10X10029 GE Door Frame and Glass Assembly
285WH01X10723 GE Hinge
287WH02X10394 GE Screw 8-18 AB TRQ 5/8 Stainless Steel
288WH01X10722 GE Hinge Bushing
290WH01X10724 GE Hinge Plate
291WE13X21096 GE Hinge Bracket
293SPACER DOOR
301PANEL FRONT ASM MC
308WR01X10379 GE Refrigerator Hinge Cover Screw
327WE01X10409 GE Door Latch
328WE09X10027 GE Front Panel Seal
332WH02X10139 GE Screw 10-32 B TRT-25 5/8
380WE04X10180 GE Door Switch
381HARNESS SWITCH DOOR
382WE13X10053 GE Striker Bracket
383WE01X10377 GE Door Striker
384GEN WE13X10052
425WE02X10106 GE Screw 8-18 AB HxW 3/8 S
510DOOR GUIDE – GREY
511PLUG PANEL – GREY
