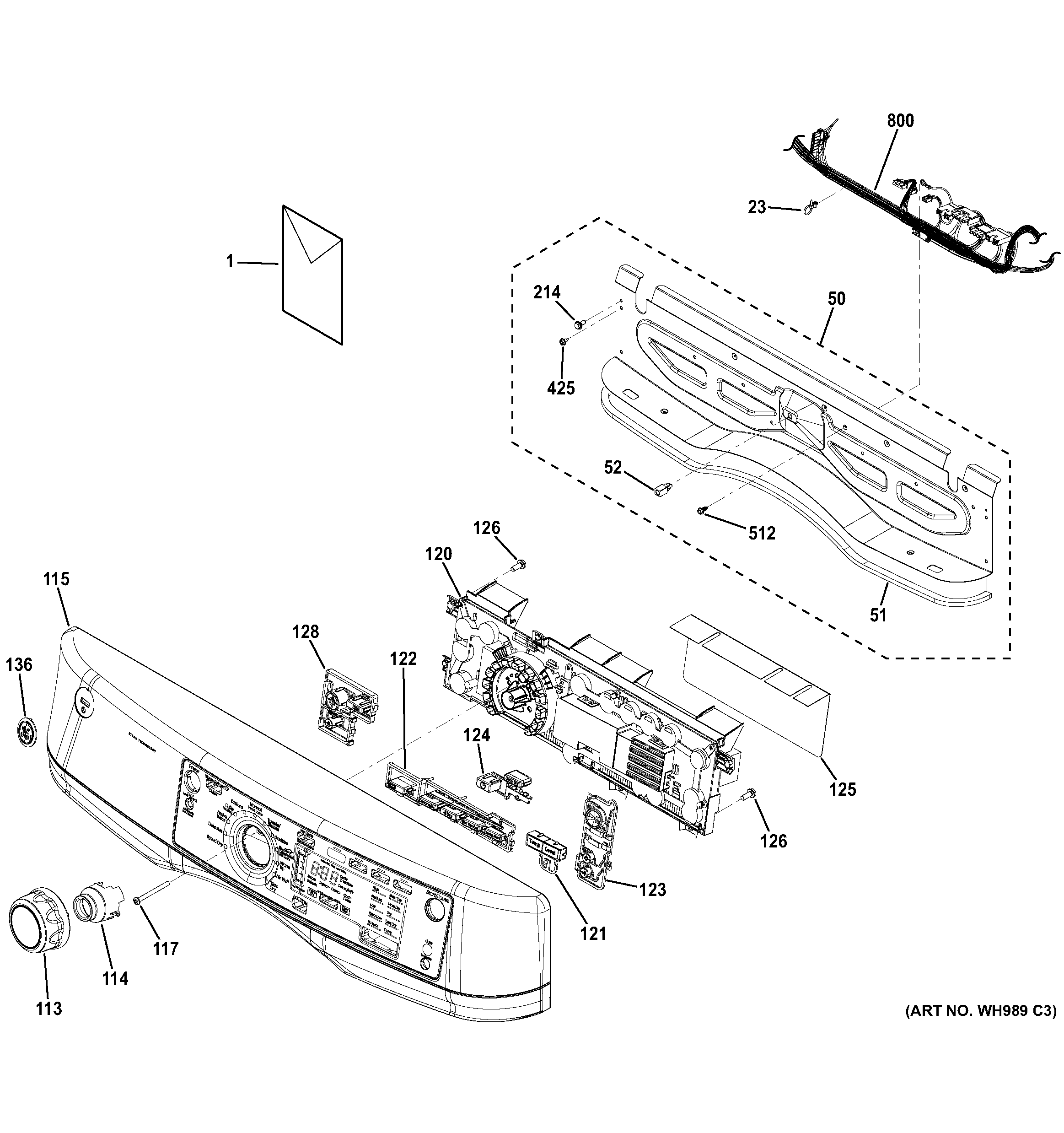

GFDS255EF0RR CONTROL PANEL

GFDS255EF0RR CONTROL PANEL

Written by

in

GFDS255EF0RR CONTROL PANEL

Products

PositionProduct
1GEN 31-16707
1GEN 49-90470P
1GEN 31-16859
23WH01X10704 GE Wire Tie
50WE13X10049 GE Front Control Bracket Assembly
51FAN SEAL
52WE01X10403 GE Grommet
113WE01X10415 GE Knob
114WH01X10743 GE Washer Dryer Knob Retainer
115GEN WE19X10093
117WH02X10408 GE Screw 8-18 AB PNP 2-1/8"
120WE04X23220 GE Dryer PCB Assembly
121WE01X10388 GE Button Tree Assembly-Temp
122GEN WE01X10421
123WE01X10418 GE Button Tree Assembly START
124BUTTON TREE ASM-TIME
125WE01X10392 GE Cover UIMC
128WE01X10387 GE Power Button Tree Assembly
214WH02X10398 GE Screw Type A 10-16 SHLDR
425WE02X10106 GE Screw 8-18 AB HxW 3/8 S
512WE02X10107 GE Screw 10-32 GX HXW 7/16 S
800WE08X22857 GE Electric Main Harness
