GFDS350GL0WW CABINET & TOP PANEL

GFDS350GL0WW CABINET & TOP PANEL

Written by

in

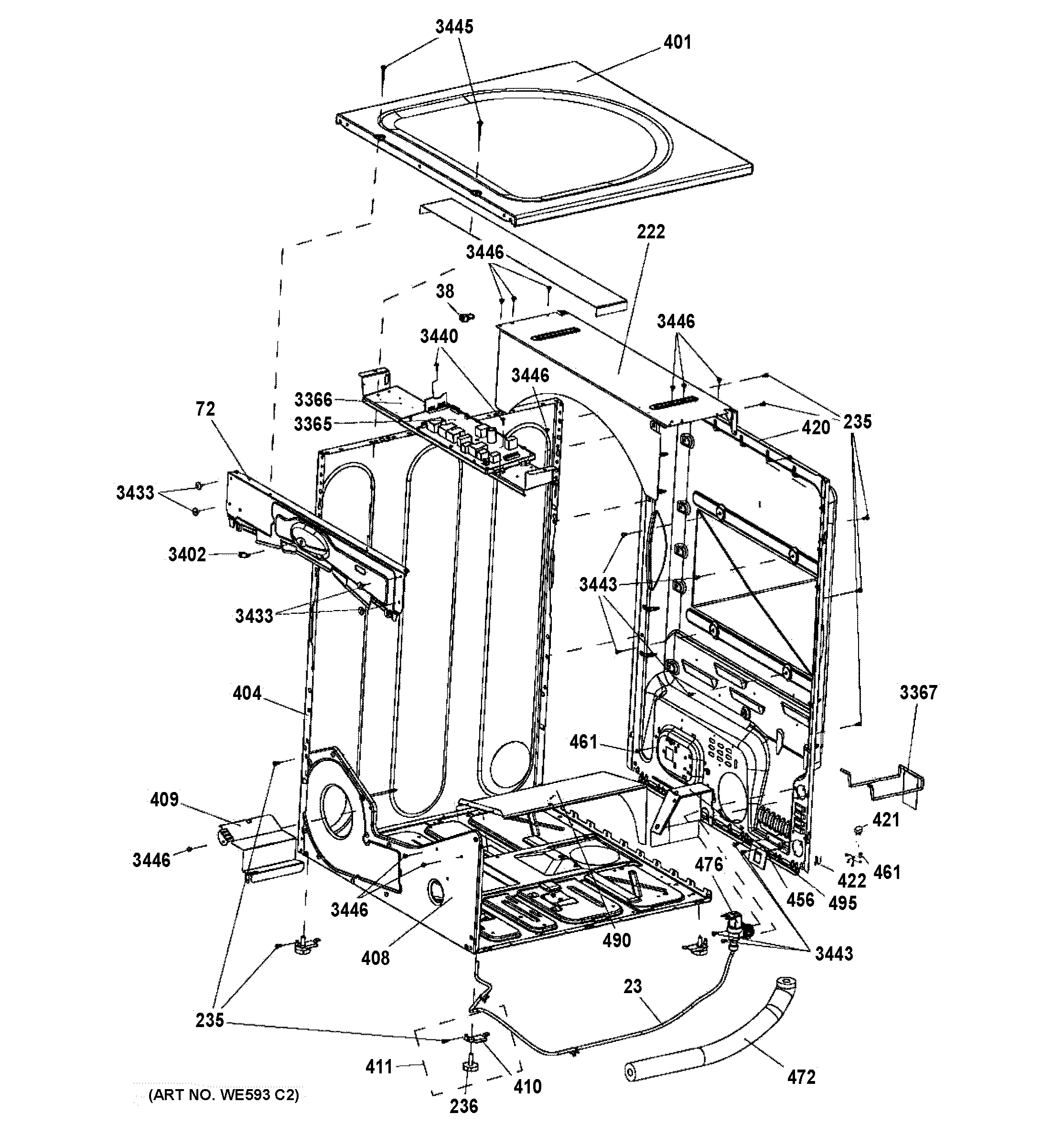

GFDS350GL0WW CABINET & TOP PANEL

Products

PositionProduct
23TUBE WATER FRONT
38WD21X10024 GE Dryer Model Selector Connector
72GEN WE1M926
222GEN WE20M476
235WE2X263D GE Screw Package 12 C92
236WE1M642 GE Washer Leveling Leg
401GEN WE20M445
404WE20M400 GE White Side Panel
408WE20M429 GE Dryer Bottom Chassis
409SHIELD THERMOSTAT
410WE1M528 GE Level Leg Rear Bracket
411WE1M468 GE Leveling Screw Bracket
420WE20M381 GE Rear Panel 7.5 CF
421WE26M345 GE Gas Power Cord (120V)
422CLIP CORDSET
456WE1X617 GE Pipe Clamp
461WZ5X158D GE Screw Package of 12
472WE1M948 GE Dryer Water Tube Sleeve
476WE4M503 GE Water Valve
490SHIELD-GAS VALVE
495WE1M933 GE Dryer Water Valve Shield
3365WE4M511 GE Main Power Board Assembly
3366WE1M864 GE Main Power Board
3367GEN WE1M587
3402ENCLOSED SCREW GROMMET
3433WE2M278 GE Screw 8-18 AB PNQ2 1/4 S Z
3440WE2M173 GE Screw
3443WE1M280 GE Screw
3445WE02X25454 GE Screw 10-16 A TRQ2 1-1/4 S
3446WE2M223 GE Screw
