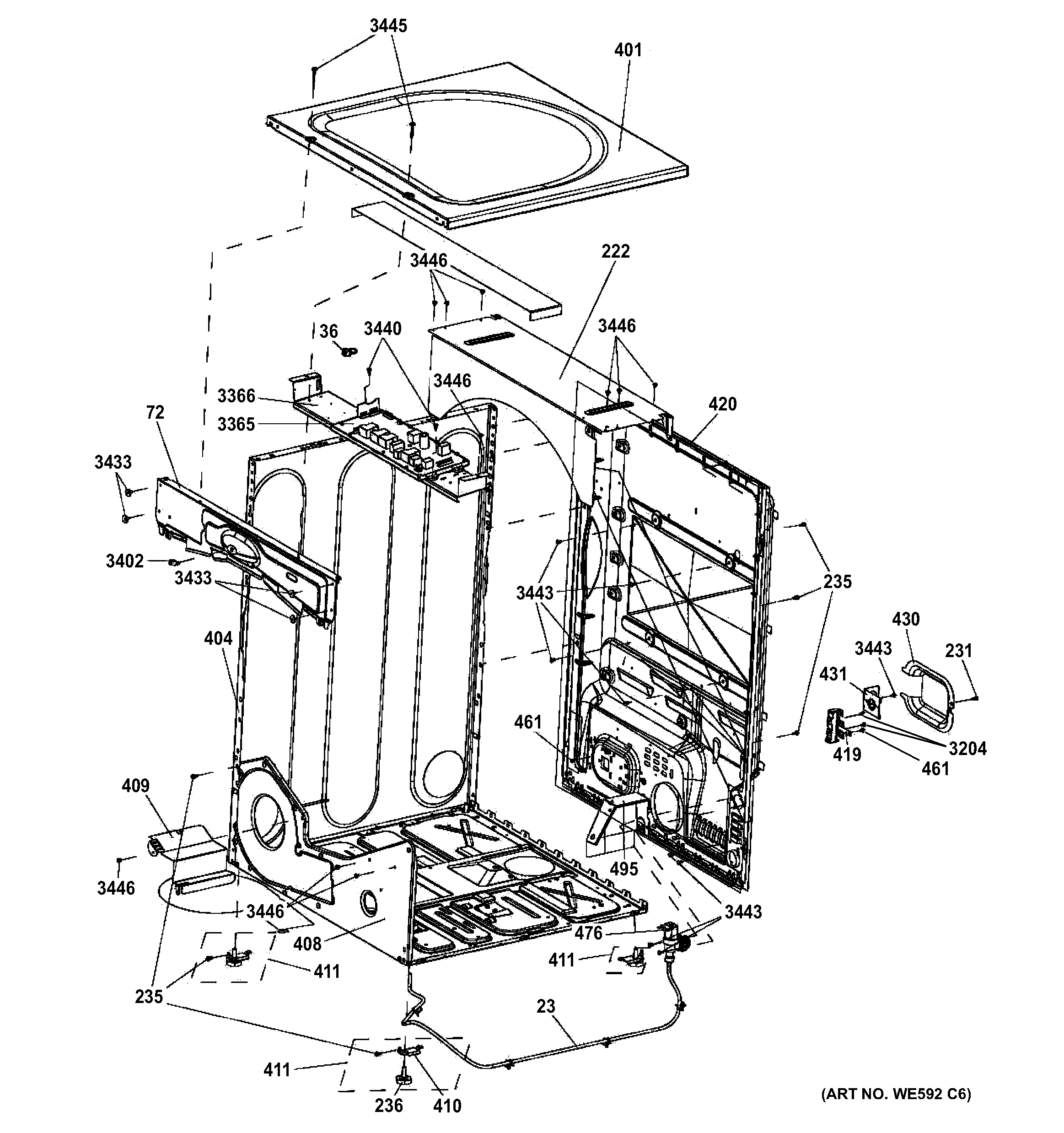

GFDS355EL1MS CABINET & TOP PANEL

GFDS355EL1MS CABINET & TOP PANEL

Written by

in

GFDS355EL1MS CABINET & TOP PANEL

Products

PositionProduct
23TUBE WATER FRONT
36GEN WD21X10035
72GEN WE1M926
222GEN WE20M476
231WD02X10057 GE Dishwasher Screw 10-16 x 1
235WE2X263D GE Screw Package 12 C92
236WE1M642 GE Washer Leveling Leg
401GEN WE20M448
404GEN WE20M446
408WE20M429 GE Dryer Bottom Chassis
409SHIELD THERMOSTAT
410WE1M528 GE Level Leg Rear Bracket
411WE1M468 GE Leveling Screw Bracket
419WE4M325 GE Dryer Terminal Block and Ground Strap
420WE20M381 GE Rear Panel 7.5 CF
430WE1M1102 GE Washer Cover Terminal Block
431WE01X20423 GE Strain Relief Bracket
461WZ5X158D GE Screw Package of 12
476WE4M503 GE Water Valve
495WE1M933 GE Dryer Water Valve Shield
3204WZ4X241D GE Screw Package
3365WE4M511 GE Main Power Board Assembly
3366WE1M864 GE Main Power Board
3402ENCLOSED SCREW GROMMET
3433WE2M278 GE Screw 8-18 AB PNQ2 1/4 S Z
3440WE2M173 GE Screw
3443WE1M280 GE Screw
3445WE02X25454 GE Screw 10-16 A TRQ2 1-1/4 S
3446WE2M223 GE Screw
