GFE24JGKAFBB DISPENSER DOOR

GFE24JGKAFBB DISPENSER DOOR

Written by

in

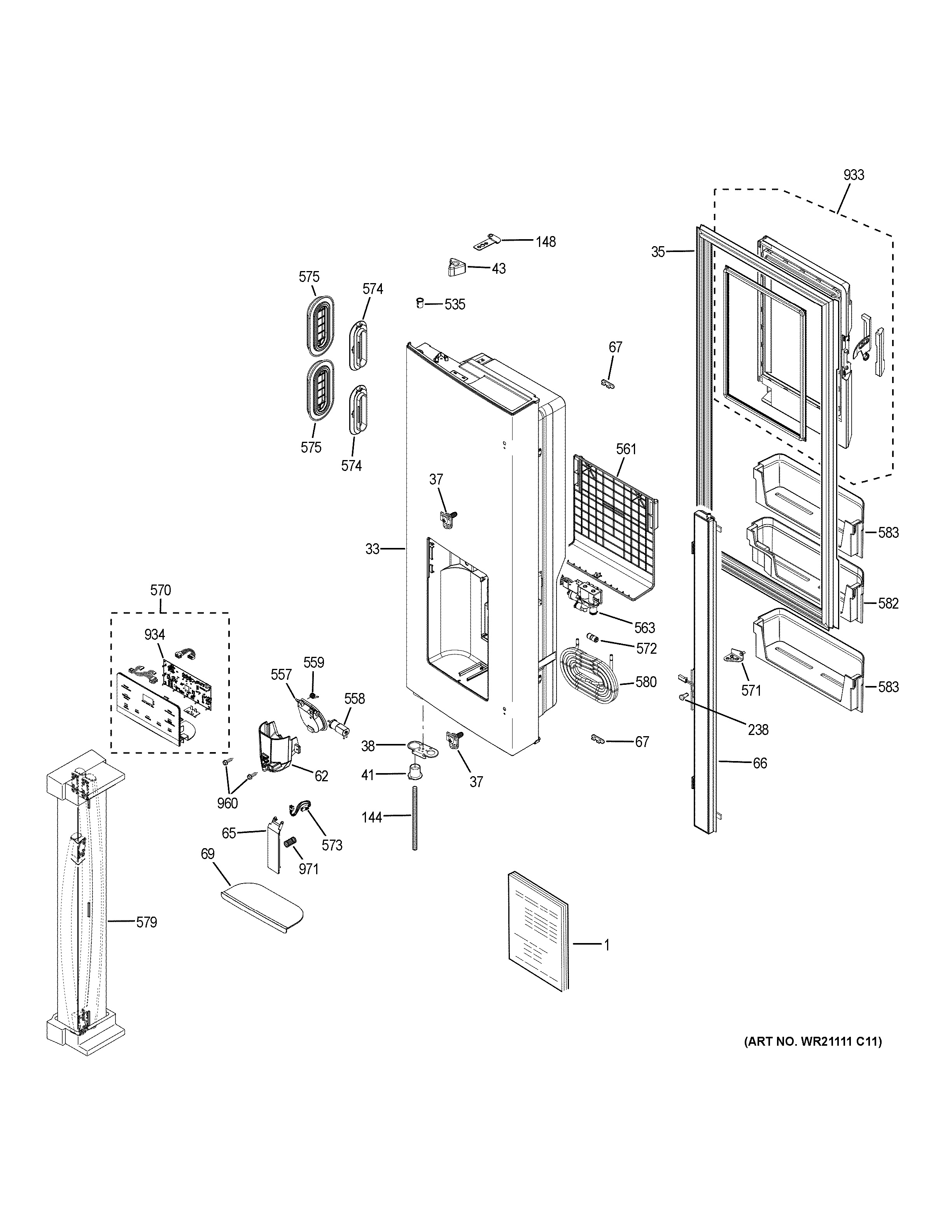

GFE24JGKAFBB DISPENSER DOOR

Products

PositionProduct
1PM MINI WIRING MANUAL
1PM USE AND CARE MANUAL
33WR78X25630 GE Refrigerator Door Foam Assembly Left Hand BB
35WR14X40082 GE Refrigerator Gray Door Gasket
37FASTNER HANDLE ASM
38STOP DOOR
41HINGE BUSHING BB
43WR02X25634 GE Refrigerator Black Cam Closure
62FUNNEL ICE
65PADDLE ASM BB
66ARTICULATING MULLION ASM
67WR02X24994 GE Door Bumper
69WR17X25629 GE Drip Tray
144WR02X13488 GE Refrigerator Spring Water Conduit
148WR13X10972 GE Refrigerator Hinge Top Door Icebox
238WR01X10065 GE Screw
535WR02X24999 GE Refrigerator Hinge Bushing
557WR17X25006 GE Refrigerator Duct Door Assembly
558WR60X10344 GE Refrigerator Duct Door Motor
559WR01X25007 GE Refrigerator Duct Door Spring
561COVER WATER TANK
563WR57X25054 GE Refrigerator Water Valve
570WR55X25631 GE Refrigerator Control Display Assembly BB
571WR13X10973 GE Refrigerator Hinge Bottom Door Icebox
572WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
573WR14X25057 GE Refrigerator Switch Paddle Assembly
574WR14X25061 GE Refrigerator Collar Gasket
575WR14X25060 GE Refrigerator Port Gasket
579WR12X25626 GE Refrigerator Black Pack Handle Kit Assembly
580WR17X25028 GE Refrigerator Cold Water Tank
582WR71X38292 GE Refrigerator Dispenser Door Bin
583WR71X38293 GE Refrigerator Middle Dispenser Door Bin
933WR17X25244 GE Refrigerator Door Ice Box Assembly
934WR55X25265 GE Refrigerator Board Main Combined HMI
960WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
971WR01X25538 GE Refrigerator Spring Paddle
