GFE24JGKBFWW DISPENSER DOOR

GFE24JGKBFWW DISPENSER DOOR

Written by

in

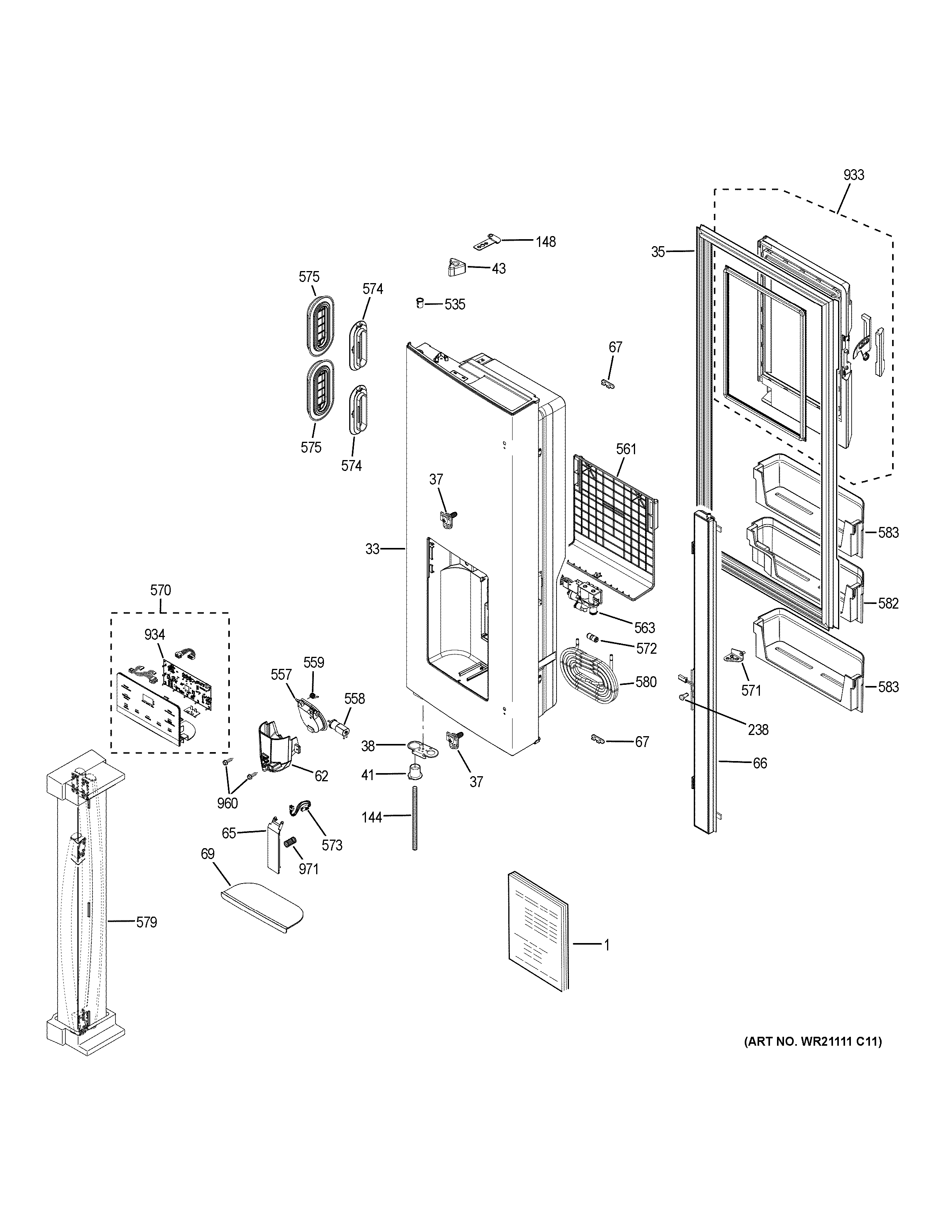

GFE24JGKBFWW DISPENSER DOOR

Products

PositionProduct
1PM MINI WIRING MANUAL
1PM USE AND CARE MANUAL
33WR78X25609 GE Refrigerator Left Hand Door Foam Assembly
35WR14X40083 GE Refrigerator Door Gasket
37FASTNER HANDLE ASM
38STOP DOOR
41HINGE BUSHING BB
43WR02X25611 GE Refrigerator Cam Closure
62FUNNEL ICE WW
65WR17X25620 GE Refrigerator Paddle
66WR17X25613 GE Refrigerator Articulating Mullion Assembly
67BUMPER DOOR WW
69TRAY DRIP WW
144WR02X13488 GE Refrigerator Spring Water Conduit
148WR13X10972 GE Refrigerator Hinge Top Door Icebox
238WR01X10065 GE Screw
535WR02X24999 GE Refrigerator Hinge Bushing
557WR17X25006 GE Refrigerator Duct Door Assembly
558WR60X10344 GE Refrigerator Duct Door Motor
559WR01X25007 GE Refrigerator Duct Door Spring
561COVER WATER TANK
563WR57X25054 GE Refrigerator Water Valve
570WR55X25608 GE Refrigerator Control Display Assembly WW
571WR13X10973 GE Refrigerator Hinge Bottom Door Icebox
572WR02X25048 GE Refrigerator 1/4 Union Connector
573WR14X25057 GE Refrigerator Switch Paddle Assembly
574WR14X25061 GE Refrigerator Collar Gasket
575WR14X25060 GE Refrigerator Port Gasket
579PK HANDLE KIT ASM WW
580WR17X25028 GE Refrigerator Cold Water Tank
582WR71X38292 GE Refrigerator Dispenser Door Bin
583WR71X38293 GE Refrigerator Middle Dispenser Door Bin
933WR17X25244 GE Refrigerator Door Ice Box Assembly
934WR55X29376 GE Refrigerator HMI Main Board
960WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
971WR01X25538 GE Refrigerator Spring Paddle
