GFE24JGKFFBB FREEZER SECTION

GFE24JGKFFBB FREEZER SECTION

Written by

in

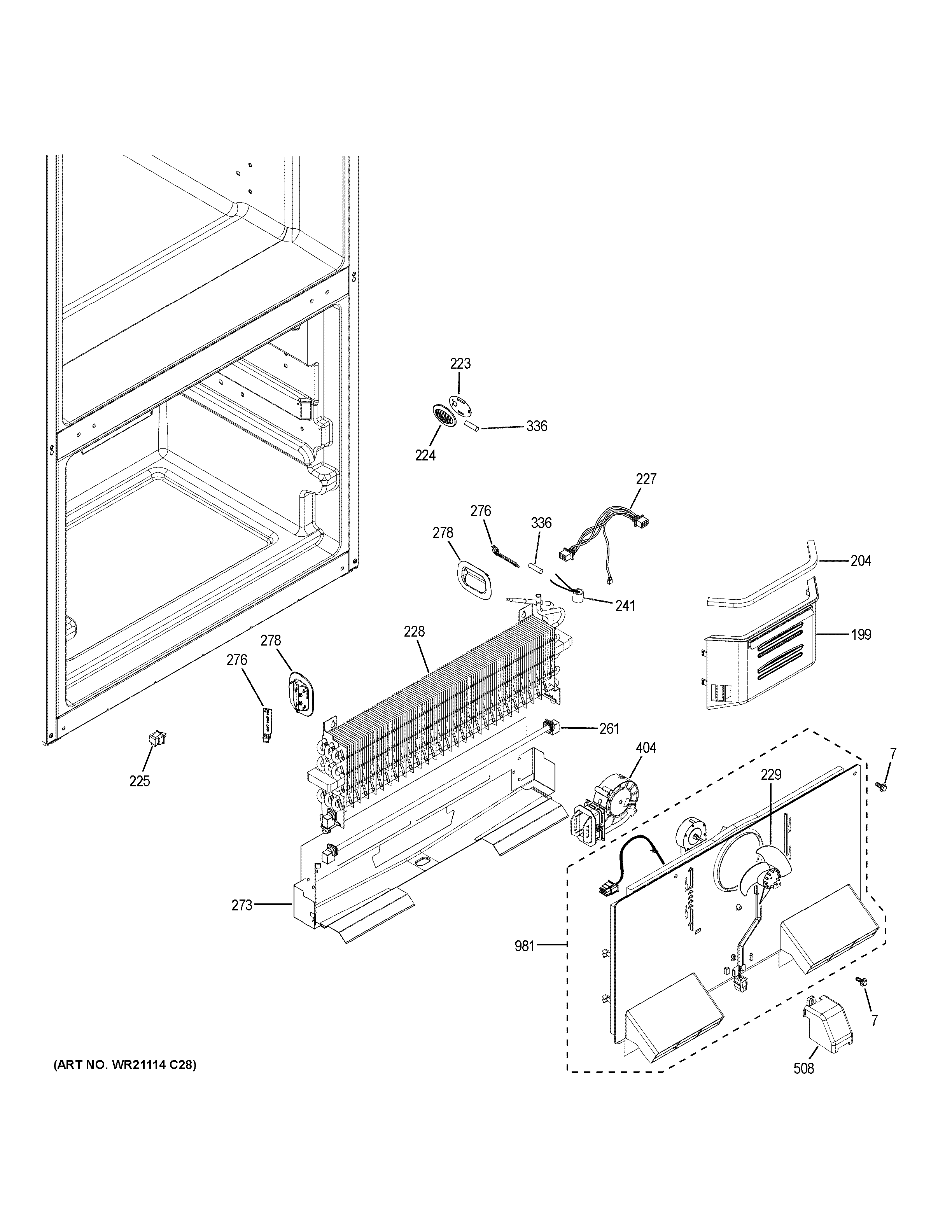

GFE24JGKFFBB FREEZER SECTION

Products

PositionProduct
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
199WR17X40007 GE Refrigerator Evaporator Cover & Fan
204WR14X24804 GE Refrigerator Adhesive Foam Strip
223WR02X10668 GE Refrigerator Shunt Sensor
224WR02X10647 GE Refrigerator Grille Sensor
225WR23X37285 GE Light Switch
227WR55X28649 GE Refrigerator Evaporator Harness
228WR87X24995 GE Refrigerator Low Side Assembly
229EVAPORATOR FAN BLADE
241THERMOSTAT DEF
261HEATER DEF ASM
273WR17X24814 GE Drain Assembly Trough
276WR55X24870 GE Refrigerator Board LED Light Assembly
278WR02X38285 GE Light Shield
336WR55X10025 GE Refrigerator Temperature Sensor
404WR60X45065 GE Icemaker Fan with Gasket
508WR02X40125 GE Refrigerator Connector Cover
981WR49X40249 GE Refrigerator Evaporator Cover & Fan
