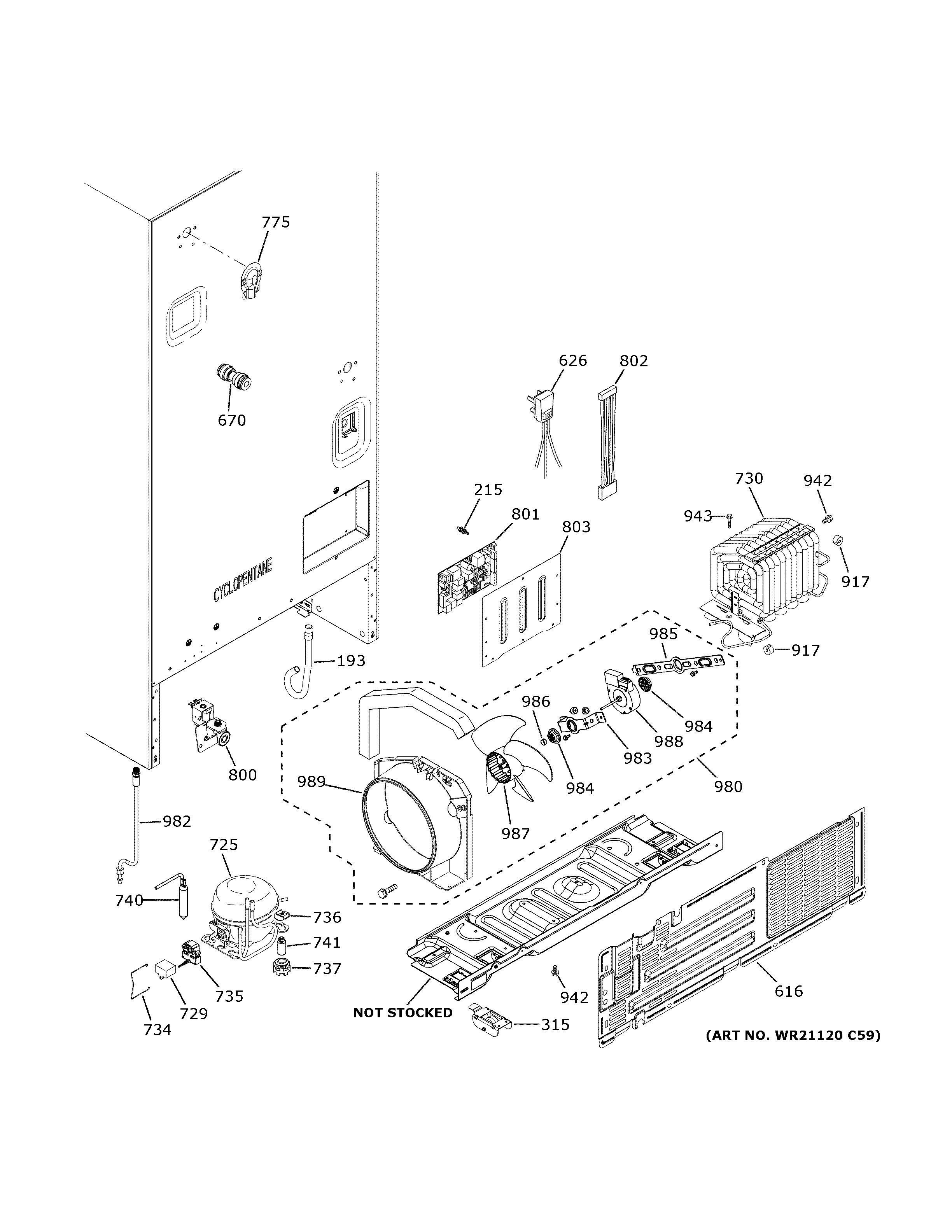

GFE24JGKTFWW MACHINE COMPARTMENTadmin2025-04-26T10:32:47+00:00GFE24JGKTFWW MACHINE COMPARTMENT ProductsPositionProduct193TUBE DRAIN215WR02X10663 GE Refrigerator Standoff315WR02X24943 GE Refrigerator Mobility Back Assembly616WR82X10103 GE Refrigerator Access Cover626WR23X30131 GE Refrigerator Lower Cabinet Harness670WR02X13738 GE Refrigerator Coupler Straight 1/4725WR87X43267 GE Single Speed Compressor Kit729WR55X24064 GE Refrigerator Run Capacitor730WR87X32326 GE Refrigerator L-Fin Al Condenser 10 Pass734WR02X22564 GE Clip Retainer Combo735WR07X10131 GE Refrigerator Overload736CLIP737WR02X40305 GE Grommet740WR87X30875 GE Refrigerator R600 Dryer with Red Cap741WR1X1779 GE Refrigerator Stud Mounting Compressor775WR17X37725 GE Water Line Cover800VALVE & GUARD ASM801BOARD T MAIN BF VS802GEN WR23X10503803WR02X40325 GE Control Board Cover917WR02X13573 GE Refrigerator Sound Damper942WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S943SCR 10-16 B HXW 1/4 S980WR60X29573 GE Refrigerator Condenser Fan & Housing982WR02X13774 GE Refrigerator Tube Lead983WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)984WR02X10520 GE Refrigerator Fan Motor Grommet985WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)986WR02X12149 GE Refrigerator Ring987WR60X24484 GE Refrigerator Condenser Fan Blade988WR60X10209 GE Refrigerator DC Condenser Fan Motor989SHROUD CONDENSER
