GFE24JGKWFBB FREEZER SECTION

GFE24JGKWFBB FREEZER SECTION

Written by

in

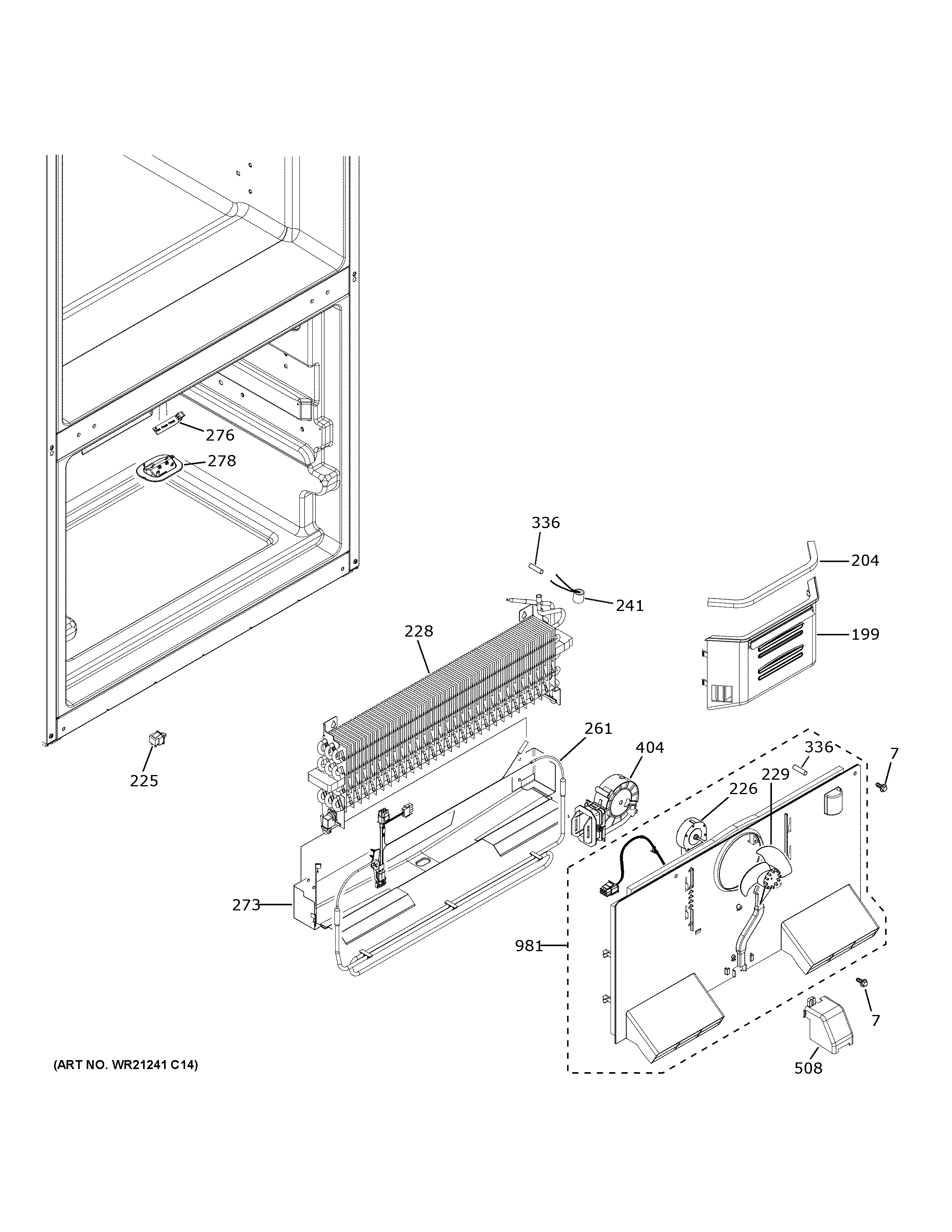

GFE24JGKWFBB FREEZER SECTION

Products

PositionProduct
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
199WR17X40007 GE Refrigerator Evaporator Cover & Fan
204WR14X24804 GE Refrigerator Adhesive Foam Strip
225WR23X39269 GE Light Switch
226MOTER DC EVAP FAN
228WR85X40008 GE Refrigerator Evaporator
229EVAPORATOR FAN BLADE
241THERMOSTAT DEF
261WR51X39489 GE Defrost Heater and Harness
273WR17X24814 GE Drain Assembly Trough
276WR55X24870 GE Refrigerator Board LED Light Assembly
278WR02X38285 GE Light Shield
336WR55X10025 GE Refrigerator Temperature Sensor
404WR60X45065 GE Icemaker Fan with Gasket
508WR02X40125 GE Refrigerator Connector Cover
981WR49X40245 GE Evaporator Cover & Fan
