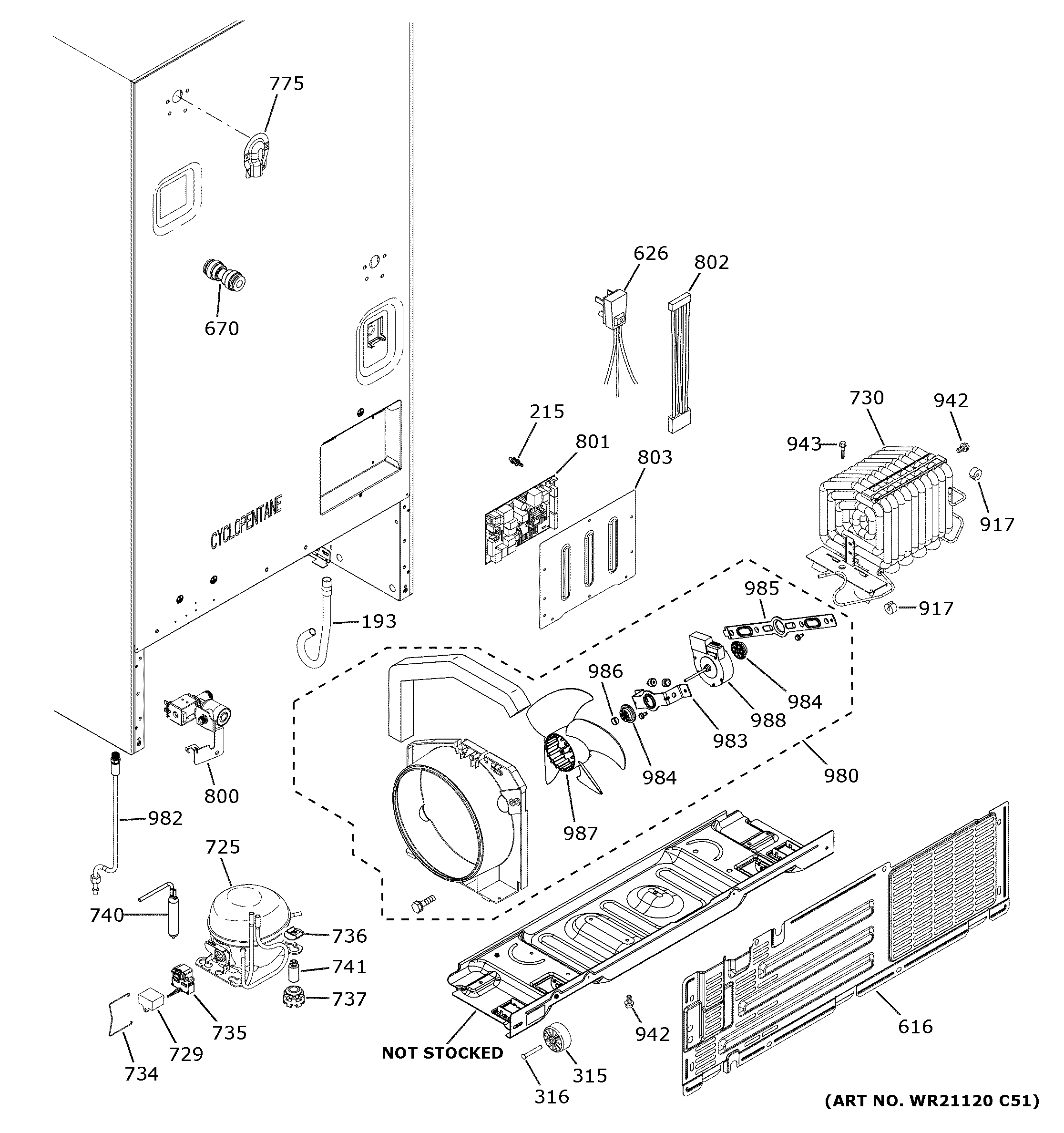

GFE26JGMXFBB MACHINE COMPARTMENT

GFE26JGMXFBB MACHINE COMPARTMENT

Written by

in

GFE26JGMXFBB MACHINE COMPARTMENT

Products

PositionProduct
193WR02X30155 GE Refrigerator Drain Tube
215WR02X10663 GE Refrigerator Standoff
315WR02X30159 GE Refrigerator Mobility Wheel
316WR02X30160 GE Refrigerator Mobility Wheel Pin
616WR82X22767 GE Refrigerator Access Cover Assembly
626WR23X30131 GE Refrigerator Lower Cabinet Harness
670WR02X13738 GE Refrigerator Coupler Straight 1/4
725SINGLE SPEED COMPRESSOR KIT
729WR55X24064 GE Refrigerator Run Capacitor
730WR87X41927 GE Condenser 10-Pass
734WR02X26153 GE Refrigerator Clip Retainer
735WR08X31586 GE Refrigerator Overload PTCR Combo
736CLIP
737WR02X40305 GE Grommet
740WR87X30875 GE Refrigerator R600 Dryer with Red Cap
741WR1X1779 GE Refrigerator Stud Mounting Compressor
775WR17X37725 GE Water Line Cover
800VALVE & GUARD ASM
801BOARD T MAIN BF VS
802WR55X11054 GE Refrigerator Harness Board INDIV.
803WR02X40325 GE Control Board Cover
917WR02X13573 GE Refrigerator Sound Damper
942WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
943SCR 10-16 B HXW 1/4 S
980WR60X29573 GE Refrigerator Condenser Fan & Housing
982WR02X13774 GE Refrigerator Tube Lead
983WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
984WR02X12008 GE Refrigerator Evaporator Fan Grommet
985WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
986WR02X12149 GE Refrigerator Ring
987WR60X24484 GE Refrigerator Condenser Fan Blade
988WR60X10209 GE Refrigerator DC Condenser Fan Motor
