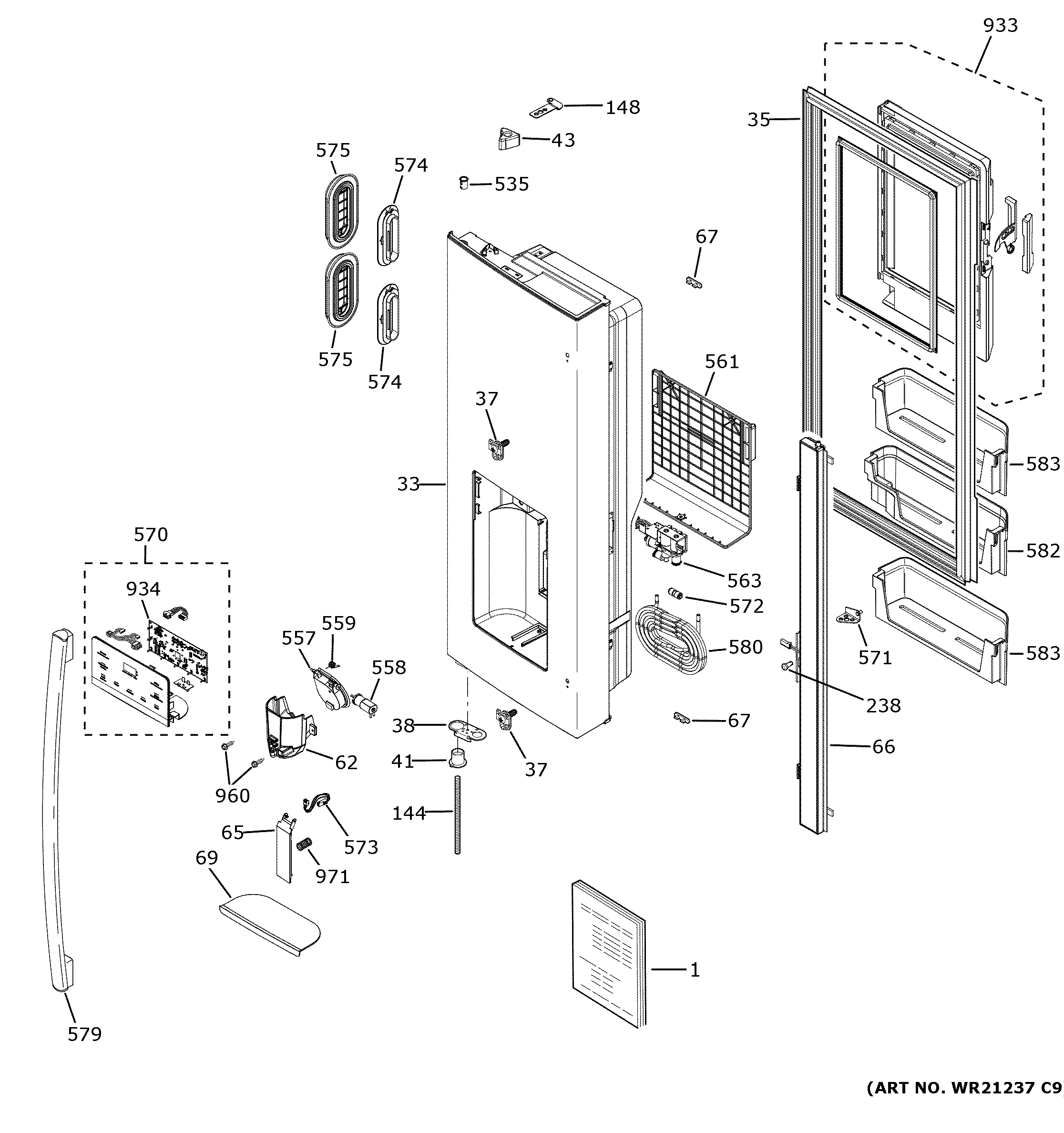

GFE26JMMKFES DISPENSER DOOR

GFE26JMMKFES DISPENSER DOOR

Written by

in

GFE26JMMKFES DISPENSER DOOR

Products

PositionProduct
1PM USE AND CARE MANUAL
1PM MINI MANUAL AND WIRING
33WR78X30295 GE Refrigerator Fresh Food Door
35WR14X30117 GE Refrigerator French Door Gasket Dorian GR
37FASTNER HANDLE ASM
38STOP DOOR
41HINGE BUSHING BB
43WR02X24998 GE Refrigerator Cam Closure DG
62FUNNEL ICE ES
65WR17X26164 GE Refrigerator Paddle and Skin Assembly
66ARTICULATING MULLION ASM
67BUMPER DOOR DG
69WR17X30296 GE Refrigerator Slate Drip Tray
144WR02X13488 GE Refrigerator Spring Water Conduit
148WR13X10972 GE Refrigerator Hinge Top Door Icebox
238WR01X10065 GE Screw
535WR02X24999 GE Refrigerator Hinge Bushing
557WR17X25006 GE Refrigerator Duct Door Assembly
558WR60X10344 GE Refrigerator Duct Door Motor
559WR01X25007 GE Refrigerator Duct Door Spring
561COVER WATER TANK
563WR57X25054 GE Refrigerator Water Valve
570WR55X30297 GE Refrigerator Display Control Slate
571WR13X10973 GE Refrigerator Hinge Bottom Door Icebox
572WR02X25048 GE Refrigerator 1/4 Union Connector
573WR14X25057 GE Refrigerator Switch Paddle Assembly
574WR14X25061 GE Refrigerator Collar Gasket
575WR14X25060 GE Refrigerator Port Gasket
579WR12X34305 GE Refrigerator Stainless Steel Door Handle
580WR17X25028 GE Refrigerator Cold Water Tank
582WR71X38292 GE Refrigerator Dispenser Door Bin
583WR71X38293 GE Refrigerator Middle Dispenser Door Bin
933WR17X25244 GE Refrigerator Door Ice Box Assembly
934WR55X30493 GE Refrigerator Board Main Combined HMI
960WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
971WR01X25538 GE Refrigerator Spring Paddle
