GFE26JYMWFFS DISPENSER DOOR

GFE26JYMWFFS DISPENSER DOOR

Written by

in

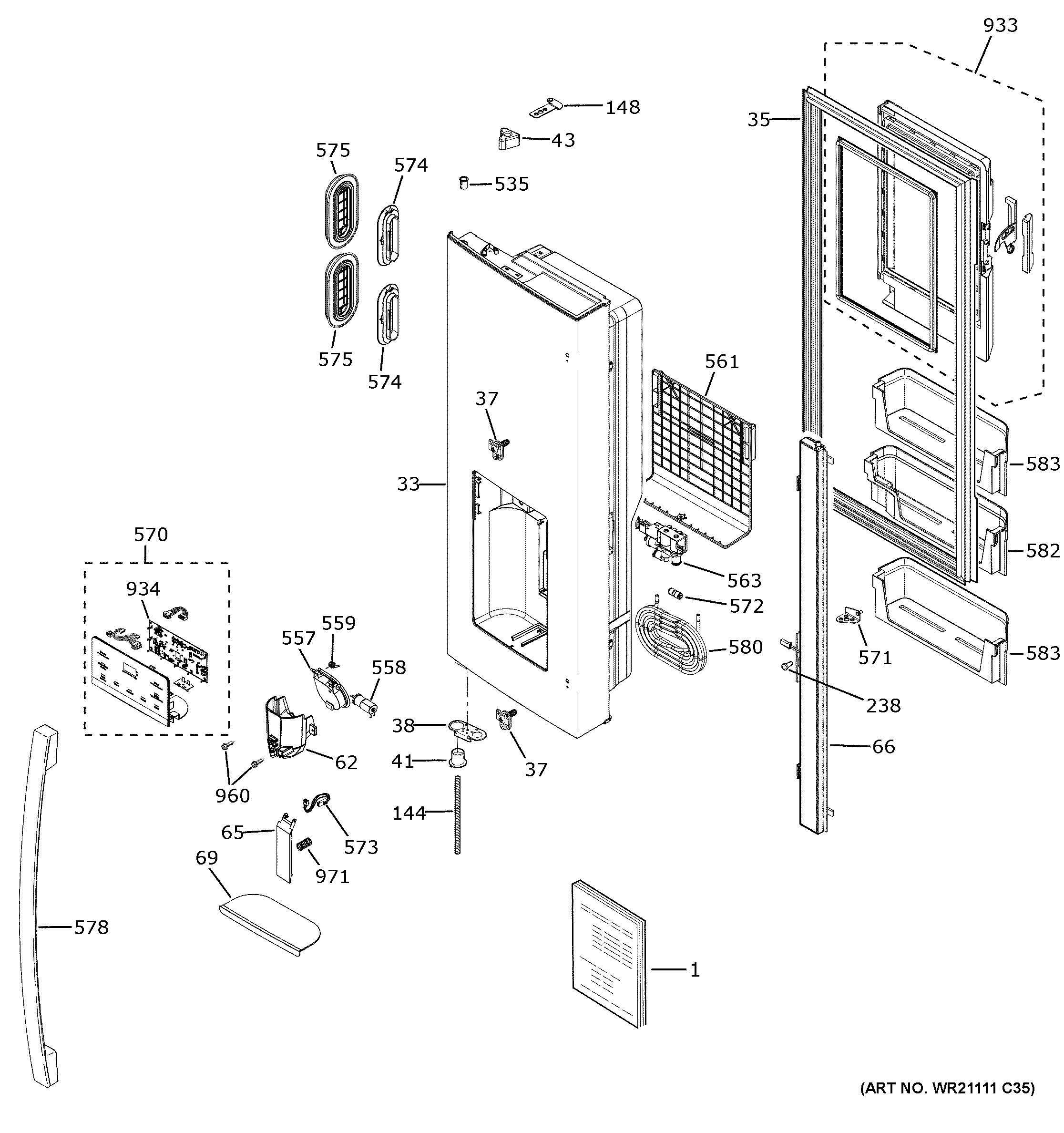

GFE26JYMWFFS DISPENSER DOOR

Products

PositionProduct
1PM MINI MANUAL AND WIRING
1PM QUICK OWNERS MANUAL
33WR78X39306 GE Refrigerator Left Hand Door
35WR14X30117 GE Refrigerator French Door Gasket Dorian GR
37FASTNER HANDLE ASM
38STOP DOOR
41HINGE BUSHING BB
43WR02X24998 GE Refrigerator Cam Closure DG
62FUNNEL ICE SS
65WR17X26164 GE Refrigerator Paddle and Skin Assembly
66ARTICULATING MULLION ASM
69WR17X30120 GE Refrigerator Drip Tray
144WR02X13488 GE Refrigerator Spring Water Conduit
148WR13X10972 GE Refrigerator Hinge Top Door Icebox
238WR01X10065 GE Screw
535WR02X24999 GE Refrigerator Hinge Bushing
557WR17X25006 GE Refrigerator Duct Door Assembly
558WR60X10344 GE Refrigerator Duct Door Motor
559WR01X25007 GE Refrigerator Duct Door Spring
561COVER WATER TANK
563WR57X45267 GE Water Valve
570WR55X35785 GE Refrigerator Stainless Steel Control Display Assembly
571WR13X10973 GE Refrigerator Hinge Bottom Door Icebox
572WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
573WR14X25057 GE Refrigerator Switch Paddle Assembly
574WR14X25061 GE Refrigerator Collar Gasket
575WR14X25060 GE Refrigerator Port Gasket
578WR12X36385 GE Refrigerator Stainless Steel Handle
580WR17X25028 GE Refrigerator Cold Water Tank
582WR71X38293 GE Refrigerator Middle Dispenser Door Bin
583WR71X38292 GE Refrigerator Dispenser Door Bin
933WR17X25244 GE Refrigerator Door Ice Box Assembly
934WR55X35530 GE Refrigerator Board Main Combined HMI
960WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
971WR01X25538 GE Refrigerator Spring Paddle
