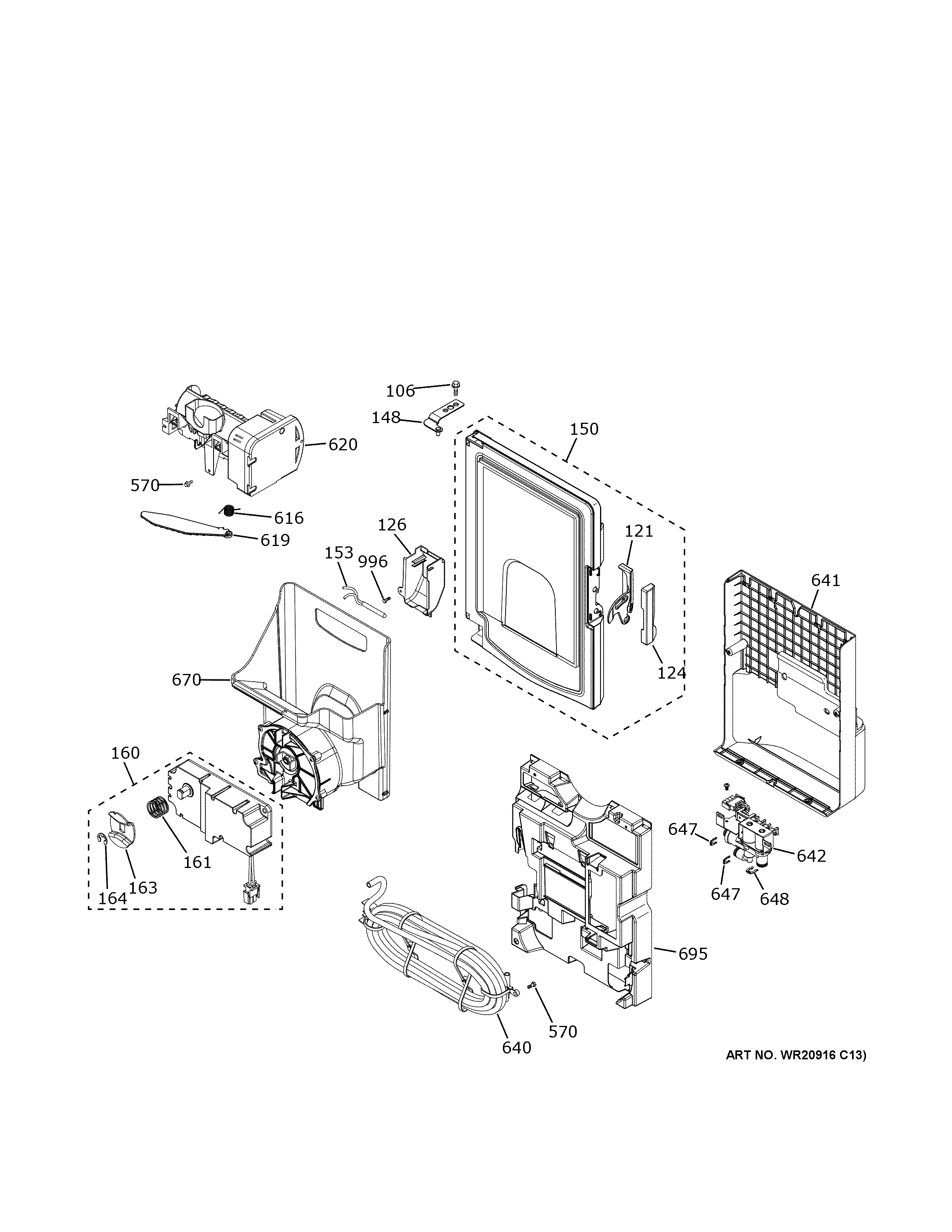

GFE28GYNJFS ICE MAKER & DISPENSER

GFE28GYNJFS ICE MAKER & DISPENSER

Written by

in

GFE28GYNJFS ICE MAKER & DISPENSER

Products

PositionProduct
106WR02X36719 GE Screw Flat 3.9-1.4 Ab 20 16 S
121LATCH ICEBOX DOOR
124WR02X23032 GE Refrigerator Cover
126ICE BOX THERMISTOR COVER
148WR13X10972 GE Refrigerator Hinge Top Door Icebox
150WR78X26087 GE Refrigerator Icebox Door Assembly
153WR55X10025 GE Refrigerator Temperature Sensor
160WR60X32568 GE Refrigerator Auger Motor
161WR02X13645 GE Refrigerator Clutch Spring Assembly
163WR02X13647 GE Refrigerator Clutch Coupling AM
164WR02X13648 GE Refrigerator E-Clip
570WR02X36721 GE Screw St4.0-1.4 Ab Ihxwt20 20
616WR01X11033 GE Refrigerator Spring Feeler Arm
619WR29X10110 GE Refrigerator IM Feeler Arm
620ICEMAKER
640WR17X27627 GE Refrigerator Cold Water Coil
641WR13X24981 GE Refrigerator Cover Valve and Tank Assembly
642DUAL WATER VALVE
647WR01X11041 GE Refrigerator Quick Clip Connector 1/4
648WR01X11040 GE Refrigerator Quick Clip Connect 5/16
670WR30X10174 GE Refrigerator Ice Bucket and Crusher
695WR13X25912 GE Refrigerator Housing Tray Valve Tank
996WR02X36717 GE Screw St4.8-1.6 Ab Trt20 19 S
