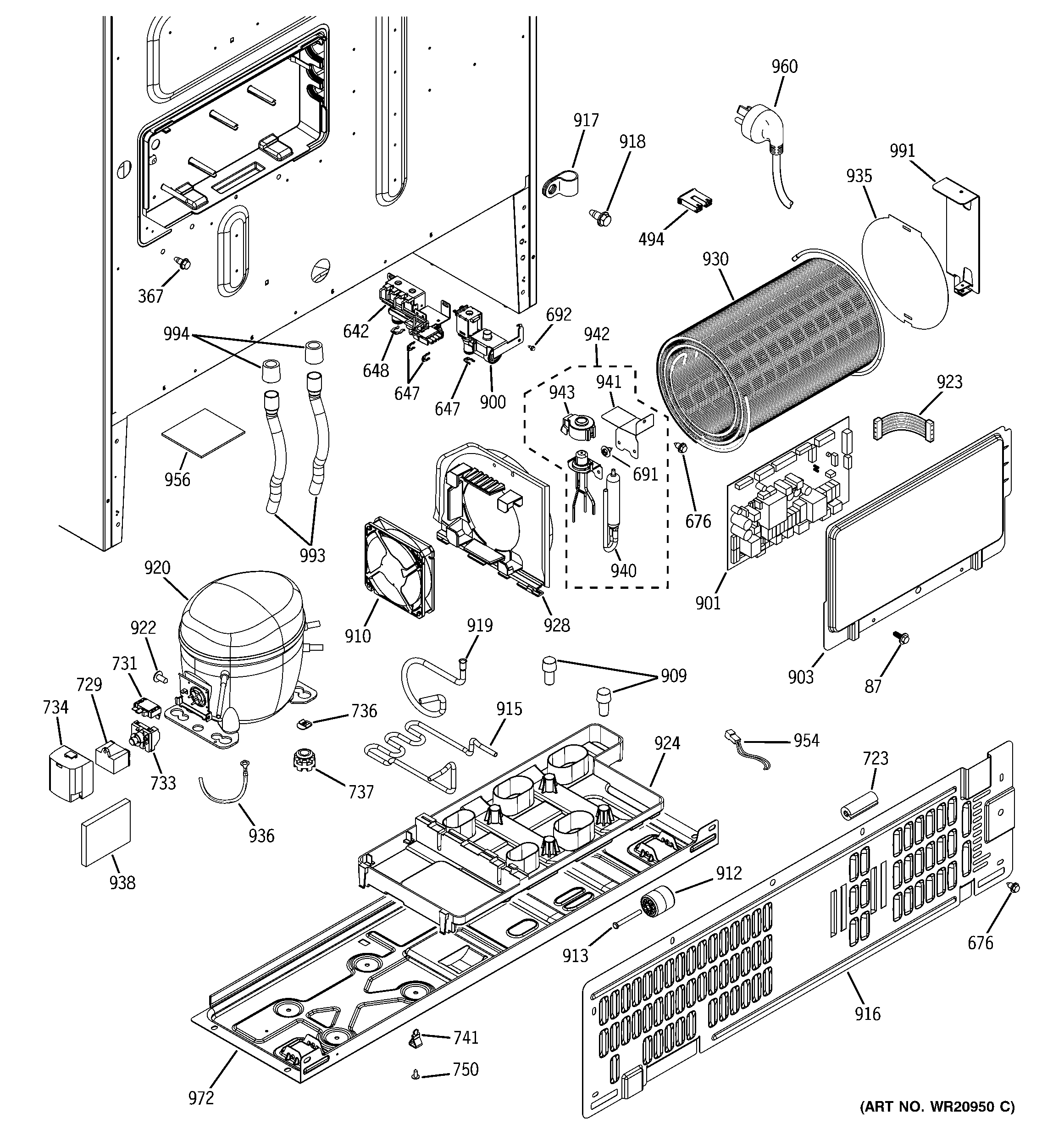

GFE29HGDABB MACHINE COMPARTMENT

GFE29HGDABB MACHINE COMPARTMENT

Written by

in

GFE29HGDABB MACHINE COMPARTMENT

Products

PositionProduct
87WZ4X241D GE Screw Package
494WD1X1459 GE Dishwasher Insulation Housing
642DUAL WATER VALVE
647WR01X11041 GE Refrigerator Quick Clip Connector 1/4
648WR01X11040 GE Refrigerator Quick Clip Connect 5/16
676WD2X5166 GE Dishwasher Screw
691SCR 12-24TT BHT20 .700 S
692SCREW
692WR01X10593 GE Refrigerator Screw 8-18 AB IHXW 3/4 S
723WR14X10055 GE Refrigerator Slit Grommet Tubing
729WR55X24064 GE Refrigerator Run Capacitor
731OVERLOAD
733WR07X10083 GE Refrigerator Start Relay
734GEN WR02X10556
736WR2X8583 GE Refrigerator Clip
737WR02X22869 GE Refrigerator Grommet
741WR1X1779 GE Refrigerator Stud Mounting Compressor
750WR1X1786 GE Refrigerator Screw
900WATER VALVE ISO ASSM
901BOARD ASM MAIN REFLASHED
903WR02X25126 GE Refrigerator Mainboard Cover
909WR02X13668 GE Condenser Support
910WR60X10358 GE Refrigerator Condenser Fan Motor Assembly
912WR02X13685 GE Refrigerator Wheel
913WR01X11008 GE Refrigerator Axle Wheel
915JUMPER COMP DISCHARGE
916WR82X37208 GE Refrigerator Rear Access Cover
917CLAMP TUBE
918SCR 8-32 GX IHXW 3/8 S
918WR01X10602 GE Refrigerator Screw 8-32 AB IHWS 3/8 S
919TUBE SUCTION JUMPER
920WR87X20798 GE Refrigerator High Side Assembly
922WR01X11038 GE Screw 8-32 Tapping Pan 5/8"
923HARNESS PERSONALITY
924PAN DRAIN
928WR17X13046 GE Refrigerator Plenum Condenser Fan Assembly
930WR84X10115 GE Refrigerator Condenser Assembly Formed
935WR17X13045 GE Refrigerator Baffle Condenser Air
936HARNESS GROUND
938BLANKET ACOUSTIC
940DRYER FILTER
941BRACKET PRI VALVE BODY
9423WAY VALVE DRYER ASM
942BODY 3 WAY VALVE
943VALVE BODY ASM
956WR02X13713 GE Refrigerator Mastic Pad
960WR23X10744 GE Refrigerator Power Cord
972BASE COMPRESSOR
991WR02X13622 GE Refrigerator Condenser Bracket
993WR02X28554 GE Refrigerator Drain Tube and Valve
994CHECK VALVE
