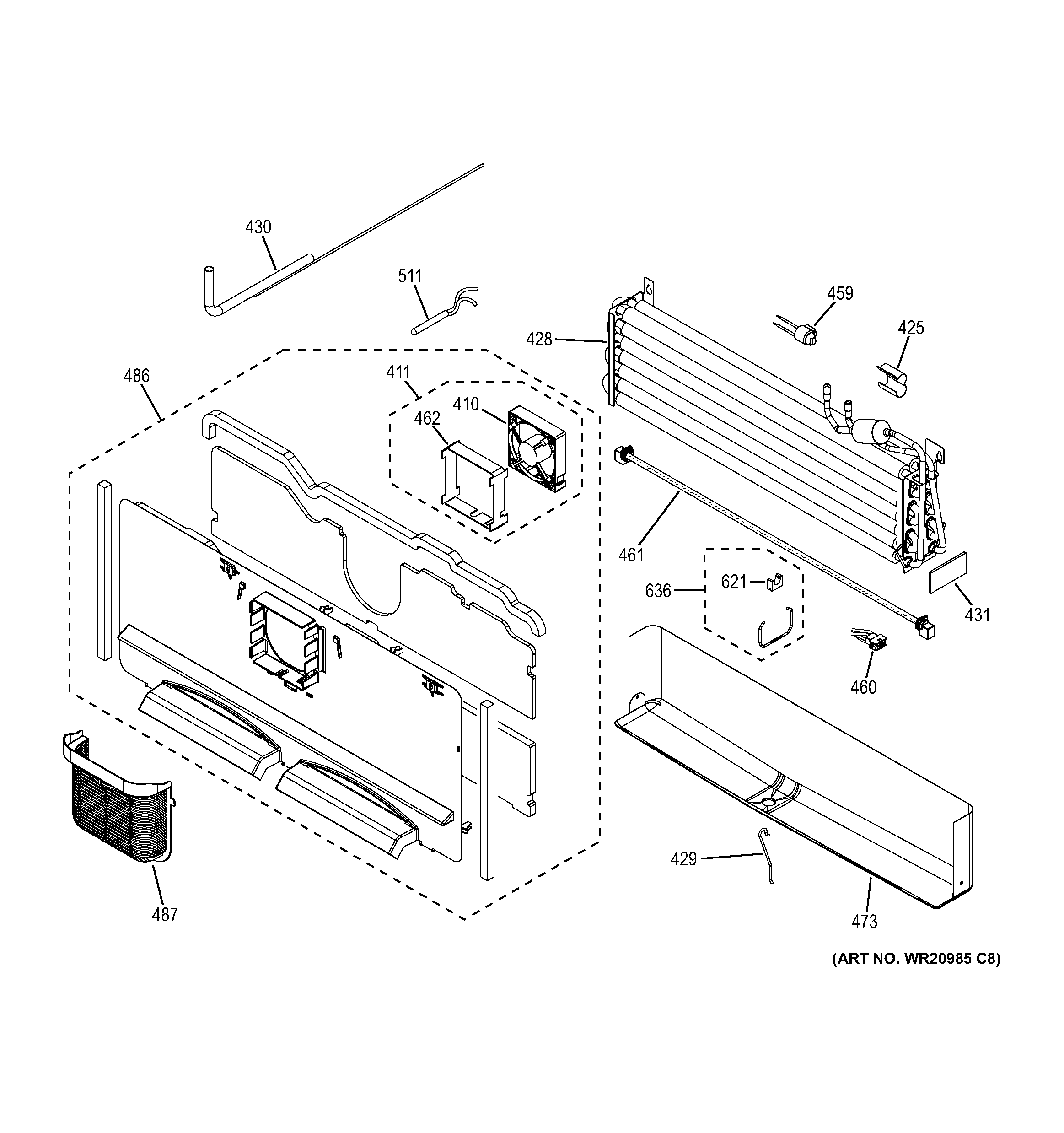

GFE29HMDDES FREEZER SECTION

GFE29HMDDES FREEZER SECTION

Written by

in

GFE29HMDDES FREEZER SECTION

Products

PositionProduct
87WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
410FAN MOTOR DC FZ EVAP
411WR60X10352 GE Refrigerator Fan and Felt Assembly
425WR02X10879 GE Refrigerator Evaporator Thermistor Clip
428WR87X36102 GE Refrigerator Freezer Evaporator with Heater
429WR51X10134 GE Refrigerator Heater Condition
430WR84X10113 GE Refrigerator Tube Repair Assembly
431WR02X13725 GE Refrigerator Block Evaporator Seal
459THERMOSTAT DEFROST FZ
460HEATER HARNESS FZ W/TCO
461HEATER DEF ASM FZ
462WR02X13734 GE Refrigerator Tape Felt
473WR17X13080 GE Refrigerator Drain Trough
486WR17X35667 GE Refrigerator Freezer Evaporator Cover
487WR17X35246 GE Refrigerator Freezer Fan Cover
511WR55X10025 GE Refrigerator Temperature Sensor
621WR02X10518 GE Refrigerator Element Holder
636WR02X13678 GE Refrigerator Holder Element Assembly
685WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
704WR01X11061 GE Refrigerator Screw 8-18 HI/LO HWX 3/4
705WR02X13731 GE Refrigerator Front Fan Gasket
709REFRIGERATOR FRESH FOOD FAN BO
710WR60X26866 GE Refrigerator Evaporator Fan Motor Assembly
711WR24X10289 GE Refrigerator Damper Gasket MP
720WR17X22149 GE Refrigerator Duct Tower Assembly
721WR17X13243 GE Refrigerator Diverter & Badge Assembly
728WR87X36103 GE Refrigerator Evaporator
730WR17X13091 GE Refrigerator Trough Drain
739WR51X10133 GE Heater Conduit
756WR17X13048 GE Fan Connector Cover
757HEATER HARNESS FF
761WR51X10132 GE Refrigerator Heater Defrost
799WR17X13142 GE Refrigerator Evaporator Cover Assembly
