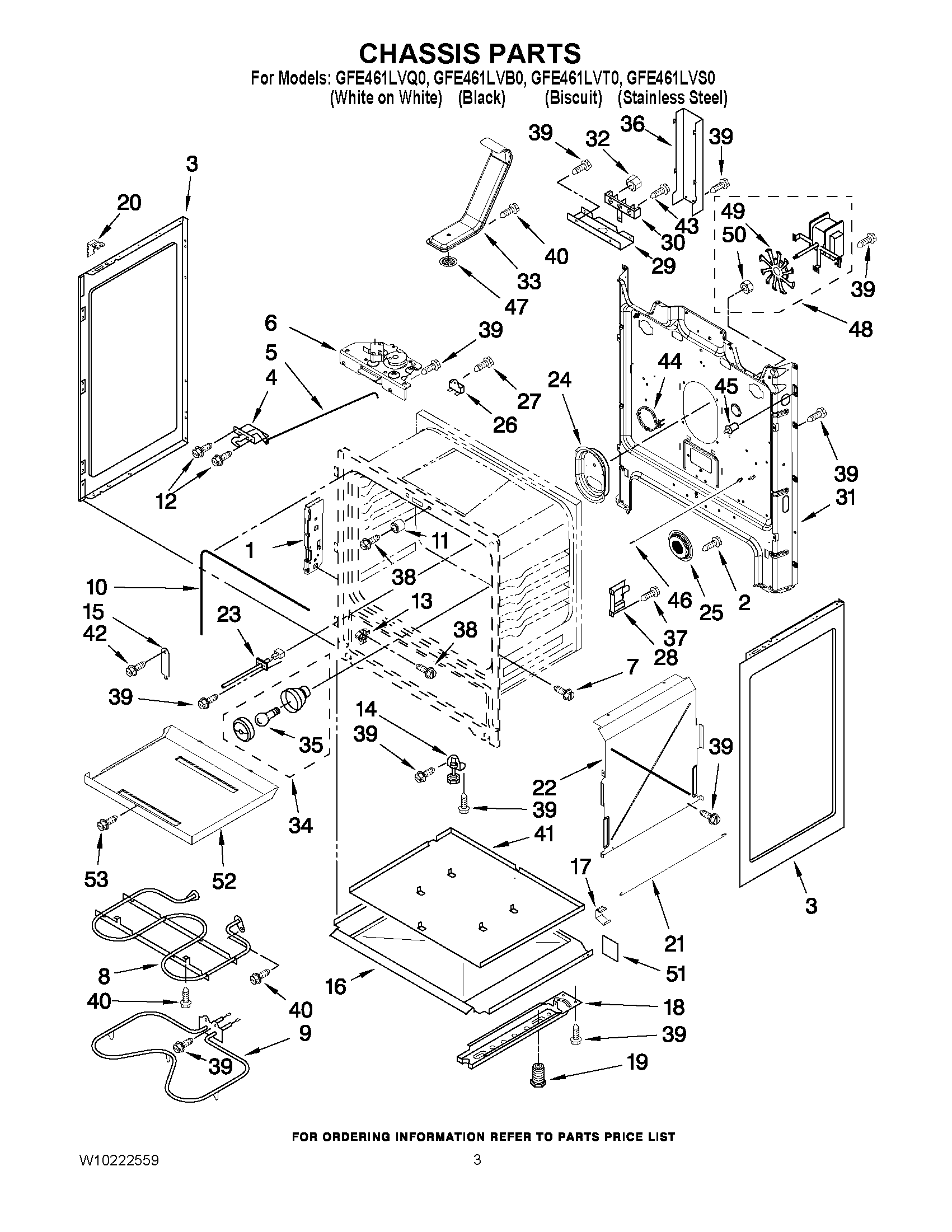

GFE461LVB0 03 – CHASSIS PARTS

GFE461LVB0 03 – CHASSIS PARTS

Written by

in

GFE461LVB0 03 – CHASSIS PARTS

Products

PositionProduct
NIW11684918 Whirlpool Insulation
NIW10326347 Whirlpool Insulation
NIWPW10208653 Whirlpool Insulation
1W10647259 Whirlpool Hinge Receiver
2WP4449809 Whirlpool Screw
3W11730303 Whirlpool Side Panel
3W10162246 Whirlpool Side Panel
3WPW10575396 Whirlpool Side Panel
4WP9761013 Whirlpool Door Latch
5Rod, Latch
6WPW10107820 Whirlpool Door Latch
7WPW10067840 Whirlpool Screw
8W10856603 Whirlpool Broil Element
9WP9755770 Whirlpool Bake Element
10W11542153 Whirlpool Door Gasket
11W10877054 Whirlpool Spacer Assembly
12W11169708 Whirlpool Screw
13WPW10114344 Whirlpool Drawer Glide
14WP3196037 Whirlpool Leveling Foot
159761517 Whirlpool Oven Clip Assembly
16W10134121 Whirlpool Insulation Tray
17W10137382 Whirlpool Clip
18WPW10306546 Whirlpool Base Rail
19WPW10058460 Whirlpool Appliance Levelling Leg
20W10183541 Whirlpool Clip Assembly
21W10465685 Whirlpool Retainer Assembly
22W10450380 Whirlpool Retainer
23WPW10181986 Whirlpool Oven Sensor
24W10134126 Whirlpool Cover
25WPW10134124 Whirlpool Fan Cover
26WP3196548 Whirlpool Thermal Fuse
273196172 Whirlpool Oven Screw
28W10404688 Whirlpool Bracket Support
29W11728255 Whirlpool Service Bracket
30WPW10245259 Whirlpool Terminal Block
31Back, Main
32Nut
33WPW10134285 Whirlpool Vent Tube
34W11594027 Whirlpool Range Oven Light Socket
35RANGE ONLY 40W 120V APPL BULB
36WPW10326122 Whirlpool Black Cover
37WP3196175 Whirlpool Screw
38WP3400832 Whirlpool Screw
39SCREW
40WP3196154 Whirlpool Screw Assembly
41W10134125 Whirlpool Retainer Clip
42W10777162 Whirlpool Screw
43WP3400016 Whirlpool Screw Assembly
44WP9760769 Whirlpool Element Assembly
45WP9757262 Whirlpool Light Switch
469757239 Whirlpool Oven Door Rod
479761301 Whirlpool Oven Screen
48W11582241 Whirlpool Convection Fan
49W10758272 Whirlpool Convection Fan
50NUT
51W10646923 Whirlpool Insulator
52W10183712 Whirlpool Bake Tray
53WP3196174 Whirlpool Screw
