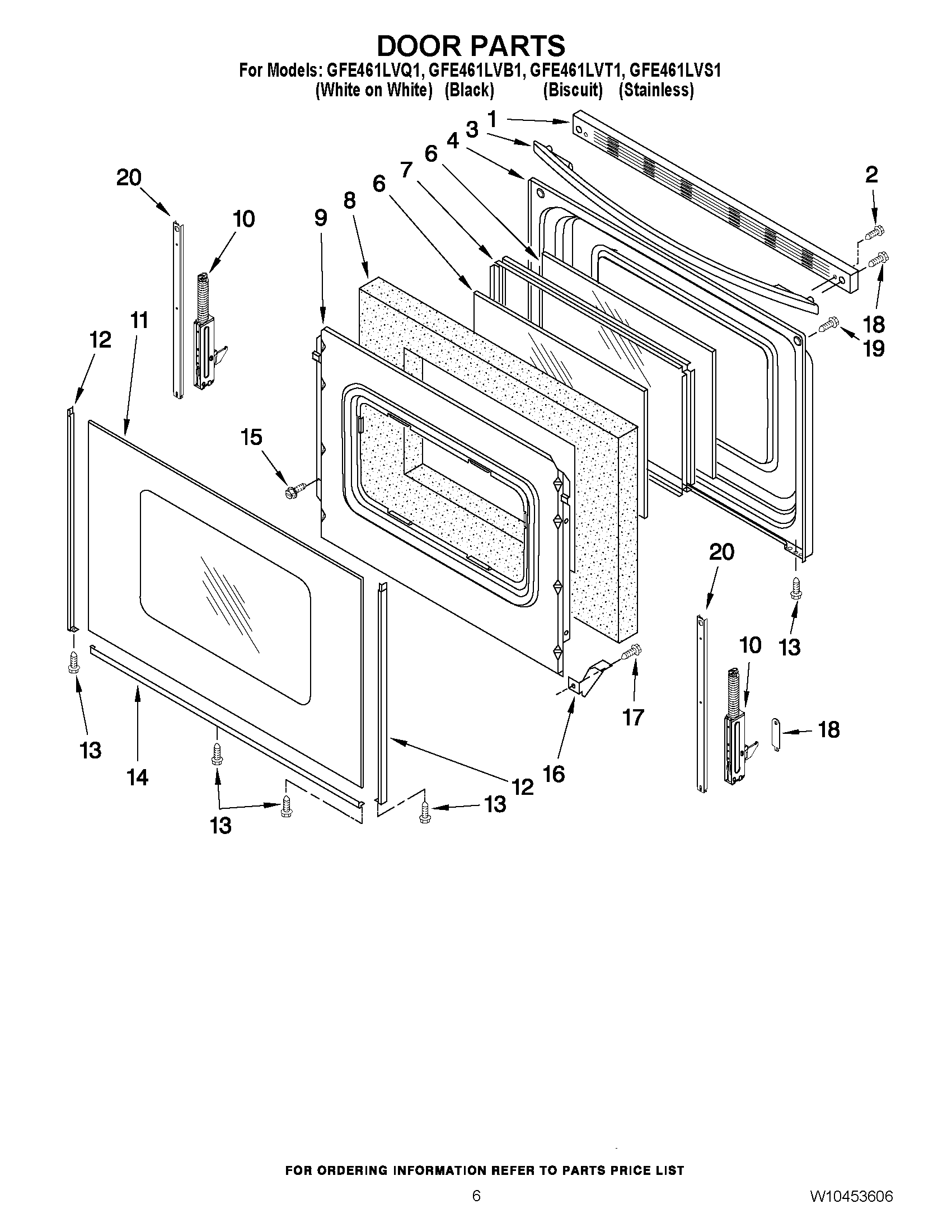

GFE461LVS1 05 – DOOR PARTS

Products

Position	Product
1	W10817433 Whirlpool Vent Trim
1	TRIM-VENT
1	WPW10310923 Whirlpool Vent Trim
2	W10817436 Whirlpool Screw
3	WPW10144883 Whirlpool Door Handle
3	WPW10323589 Whirlpool Door Handle
3	W10817434 Whirlpool Door Handle
3	HANDLE, DOOR (BISCUIT)
4	WP9761344 Whirlpool Door Liner
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
10	WPW10299227 Whirlpool Range Door Hinge
11	WPW10118454 Whirlpool Door Outer Glass White
11	Glass, Outer Door (Biscuit)
11	WPW10118455 Whirlpool Door Glass Assembly
12	WP8523166 Whirlpool Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	W10761014 Whirlpool Right Door Trim
12	8184858 Whirlpool Door Trim
12	WP8523173 Whirlpool Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	WP8523172 Whirlpool Left Door Trim
13	W10491985 Whirlpool Screw
14	WP8523178 Whirlpool Door Trim
14	WP8523175 Whirlpool Door Trim Assembly
14	WP8523177 Whirlpool Door Trim Assembly
15	WPW10031790 Whirlpool Screw
16	W10137382 Whirlpool Clip
17	WP3196175 Whirlpool Screw
18	CLIP, DR MNTG
19	W10777162 Whirlpool Screw
20	W11502236 Whirlpool Door Trim
