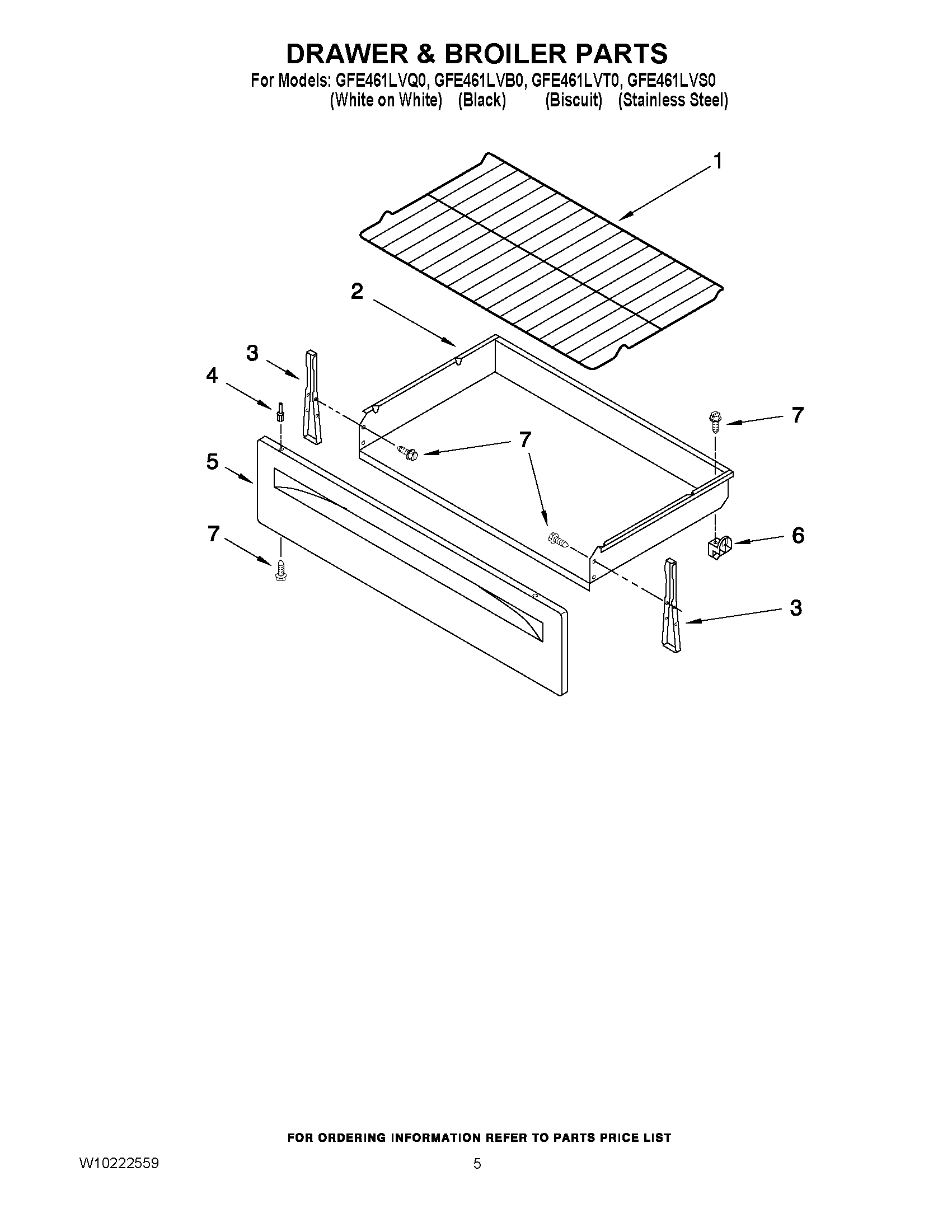

GFE461LVT0 04 – DRAWER & BROILER PARTS

GFE461LVT0 04 – DRAWER & BROILER PARTS

Written by

in

GFE461LVT0 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1RACK-OVEN
2DRAWER, STORAGE
3WPW10462912 Whirlpool Bracket Mounting
4WP3196814 Whirlpool Rivet
4WP3196813 Whirlpool Rivet
5W11219377 Whirlpool Drawer Panel
5W11230488 Whirlpool Drawer Panel
5W11230476 Whirlpool Drawer Panel
5DRAWER FRONT (STAINLESS)
6WP8053334 Whirlpool Drawer Glide
7WP3400832 Whirlpool Screw
