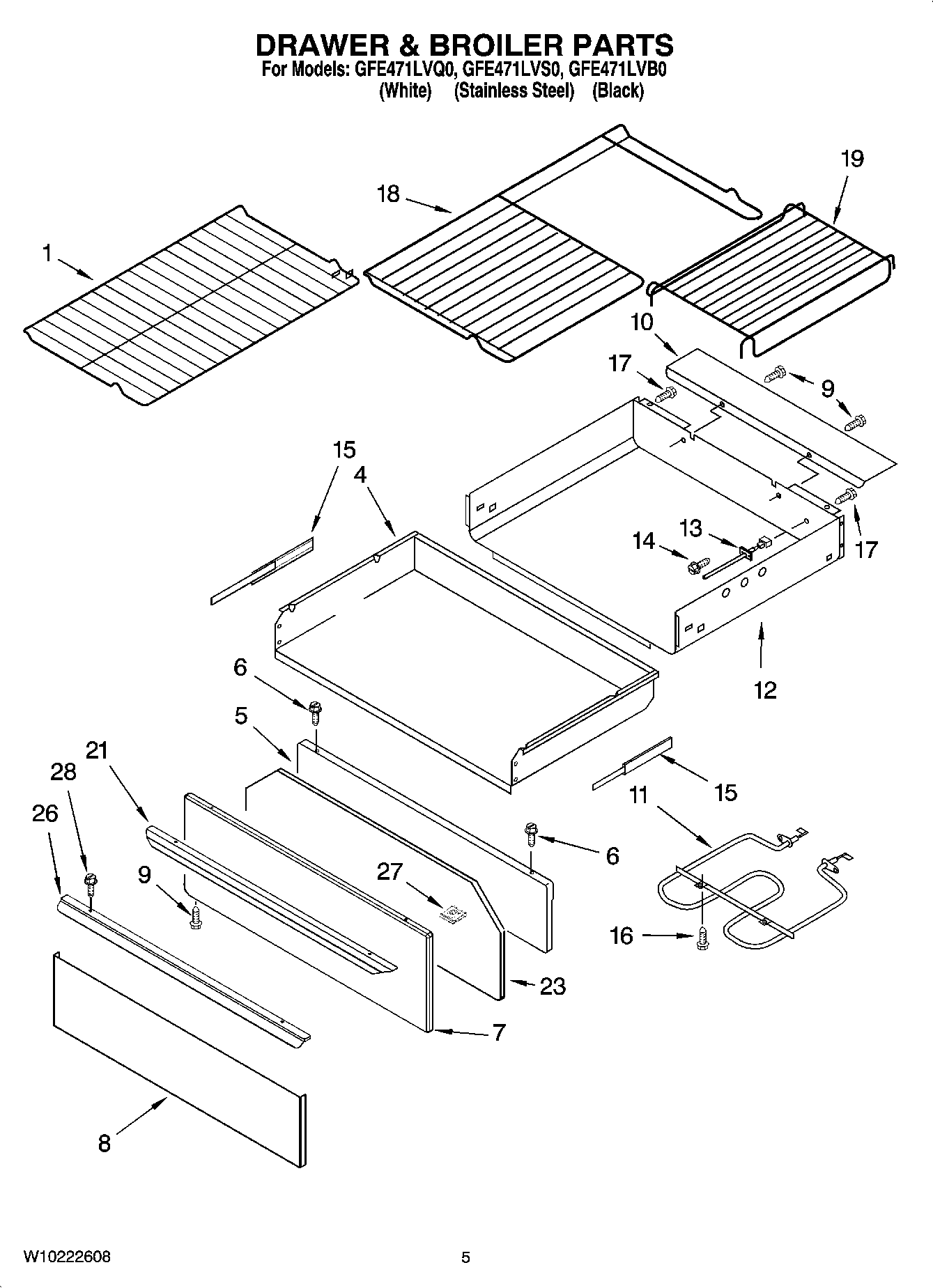

GFE471LVB0 04 – DRAWER & BROILER PARTS

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
4	Drawer, Warming
5	Panel, Inner
6	Screw (White)
6	WP3196567 Whirlpool Screw
7	Panel, Drawer Frnt (Black)
7	Panel, Drawer Frnt (White)
8	PANEL (SS MODEL)
9	WP3400832 Whirlpool Screw
10	Heat Shield, Element
11	Element, Warming
12	Enclosure, Drawer
13	WPW10131827 Whirlpool Sensor
14	WPY706189 Whirlpool Stove Screw
15	Slide, Drawer (Left Hand)
15	Slide, Drawer (Right Hand)
16	WP3196174 Whirlpool Screw
17	SCREW
18	WP8274021 Whirlpool Oven Rack
19	WP8274022 Whirlpool Oven Rack
21	Handle (White)
21	Handle (Black)
23	Insulation
26	Handle (SS Model)
27	WP9781235 Whirlpool Clip
28	WPW10031790 Whirlpool Screw
