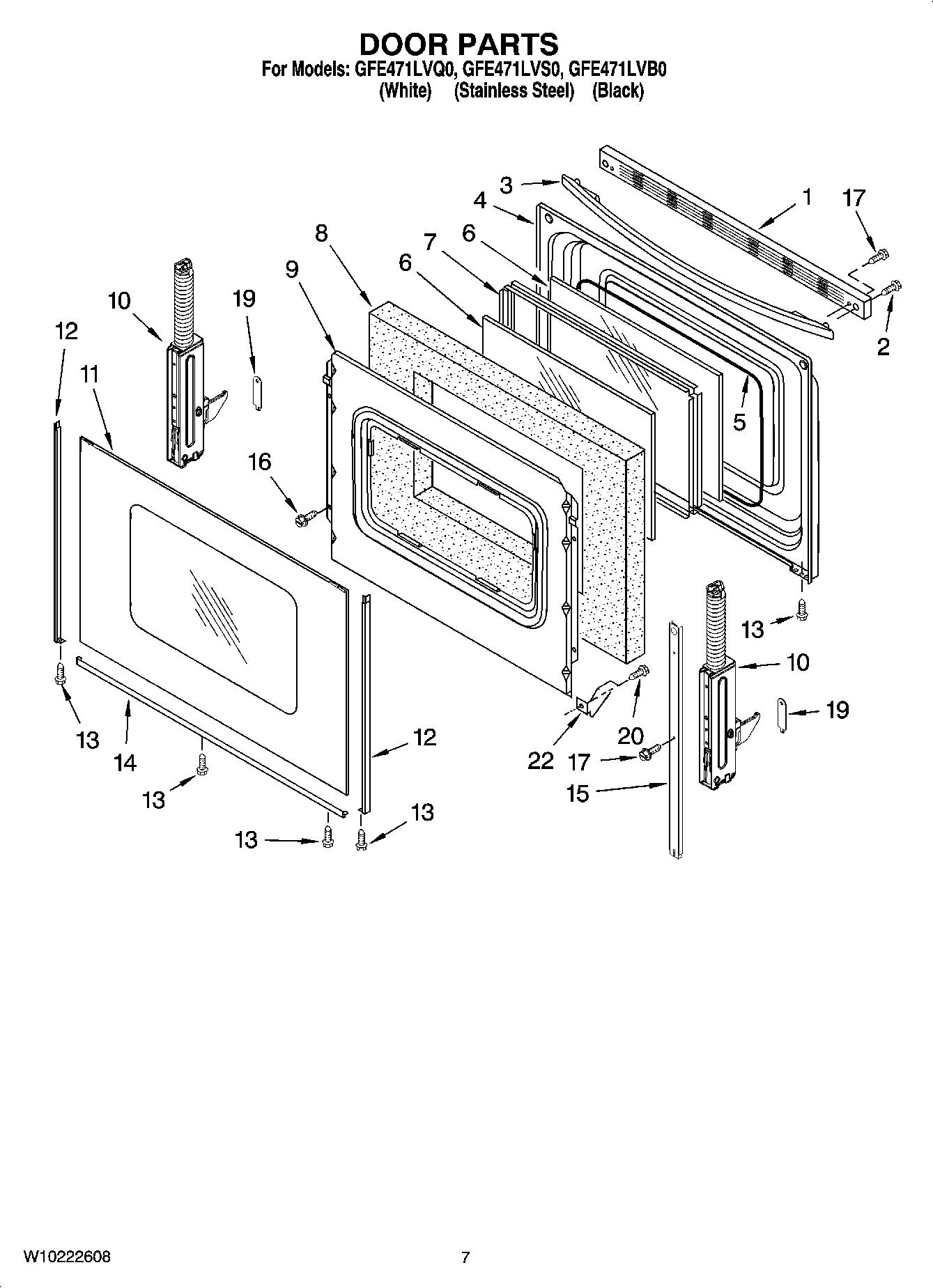

GFE471LVB0 05 – DOOR PARTS, OPTIONAL PARTS
Written by
in
GFE471LVB0 05 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
WPL ARI148647A
3184020 Whirlpool Oven Wire
Grease
W10174461 Whirlpool Wire Harness
WP3196154 Whirlpool Screw Assembly
W10465644 Whirlpool Wire Harness
W10256890 Whirlpool Wire Harness
W11134592 Whirlpool Wire Harness
W10170247 Whirlpool Wire Harness
Harness,Wire (Sensor/Dr Switch)
Harness, Wire (Warming Drawer)
WPL ARI148642A
WPL ARI148643A
WPL ARI148644A
WPL ARI148645A
WPL ARI148646A
8212471 Whirlpool Oven Paint
WPL 799832
WPW10208653 Whirlpool Insulation
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
285006 Whirlpool Spray
FOIL, ALUMINUM OVEN (18“ X 25 )
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
511873 Whirlpool Refrigerator Paint
W11447673 Whirlpool Range Tip Anchor
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
1
TRIM-VENT
1
W10817433 Whirlpool Vent Trim
2
W10817436 Whirlpool Screw
3
WPW10144883 Whirlpool Door Handle
3
W10817434 Whirlpool Door Handle
3
WPW10323589 Whirlpool Door Handle
4
WP9761344 Whirlpool Door Liner
5
Seal, Window
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
W10347466 Whirlpool Door Hinge
11
WPW10118454 Whirlpool Door Outer Glass White
11
WPW10118455 Whirlpool Door Glass Assembly
11
WPW10330077 Whirlpool Door Glass
12
WP8523172 Whirlpool Left Door Trim
12
W10761018 Whirlpool Dishwasher Left Door Trim
12
WP8523166 Whirlpool Door Trim
12
8184858 Whirlpool Door Trim
12
W10761014 Whirlpool Right Door Trim
13
W10491985 Whirlpool Screw
14
WP8523175 Whirlpool Door Trim Assembly
14
WP8523177 Whirlpool Door Trim Assembly
15
W11502236 Whirlpool Door Trim
16
WPW10031790 Whirlpool Screw
17
WPW10200660 Whirlpool Range Oven Door Handle Screw
19
9761517 Whirlpool Oven Clip Assembly
20
WP3196175 Whirlpool Screw
22
W10137382 Whirlpool Clip
←
