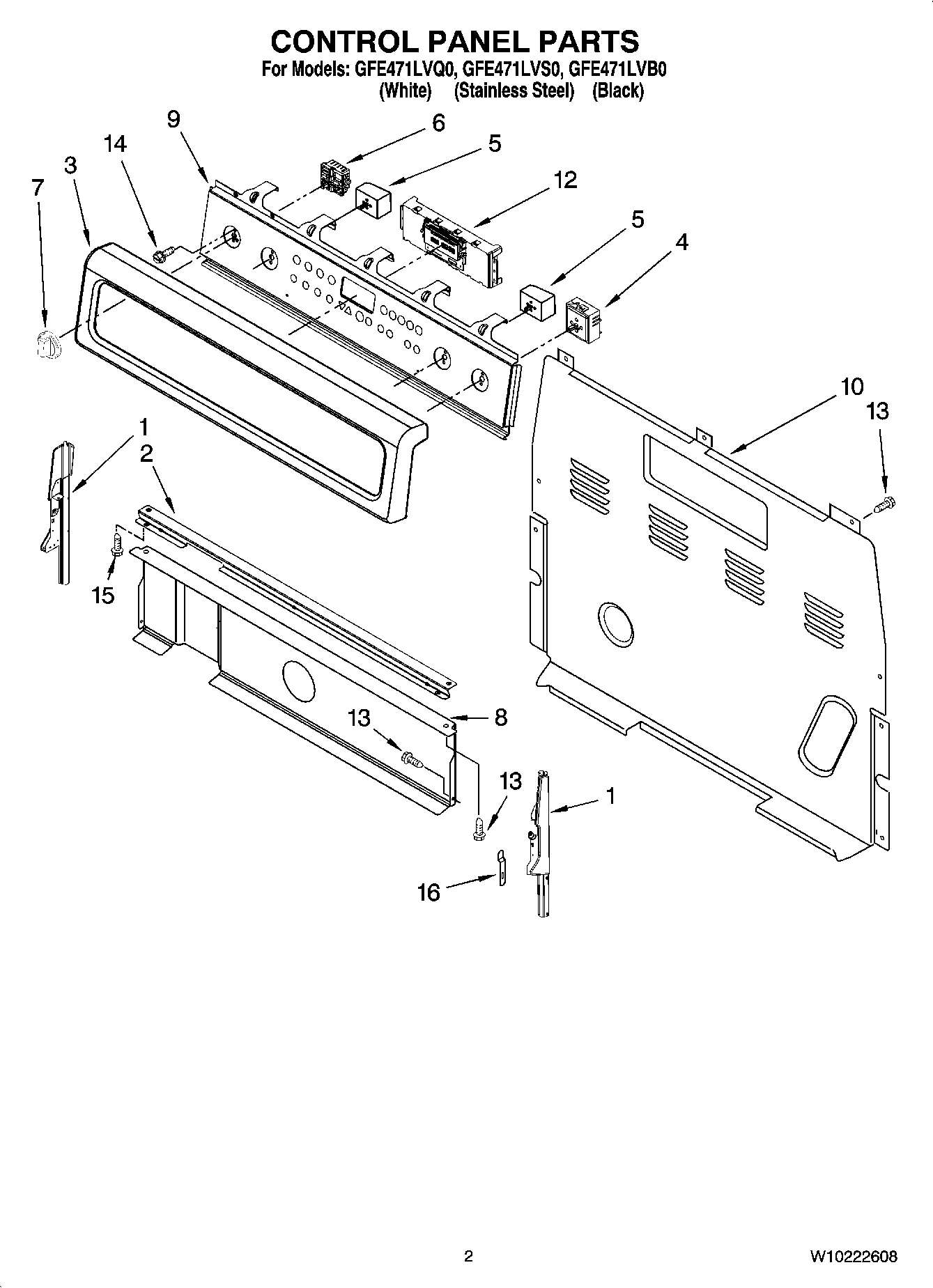

GFE471LVQ0 02 – CONTROL PANEL PARTS
Written by
in
GFE471LVQ0 02 – CONTROL PANEL PARTS
Products
Position
Product
1
W11219665 Whirlpool Panel Endcap
1
W11219370 Whirlpool Endcap Panel
1
W11219365 Whirlpool Panel Endcap
1
W11219664 Whirlpool Endcap Panel
2
W10525121 Whirlpool Control Bracket
3
Panel, Control (White)
3
Panel, Control (Black)
3
Panel, Control (Stainless)
4
WPW10149355 Whirlpool Infinite Switch
5
WP3149404 Whirlpool Oven Surface Element Switch
6
WPW10169580 Whirlpool Infinite Switch
7
W10154955 Whirlpool Knob Assembly
7
KNOB, INFINITE (BLACK)
8
W10134247 Whirlpool Heat Shield
9
W10224761 Whirlpool Membrane Switch
9
W10224760 Whirlpool Membrane Switch Assembly
10
WP8272473 Whirlpool Rear Cover
12
Control, Range
13
SCREW
14
WP3400882 Whirlpool Screw
15
WP3400832 Whirlpool Screw
15
3196166 Whirlpool Screw
16
3196200 Whirlpool Clip
←
