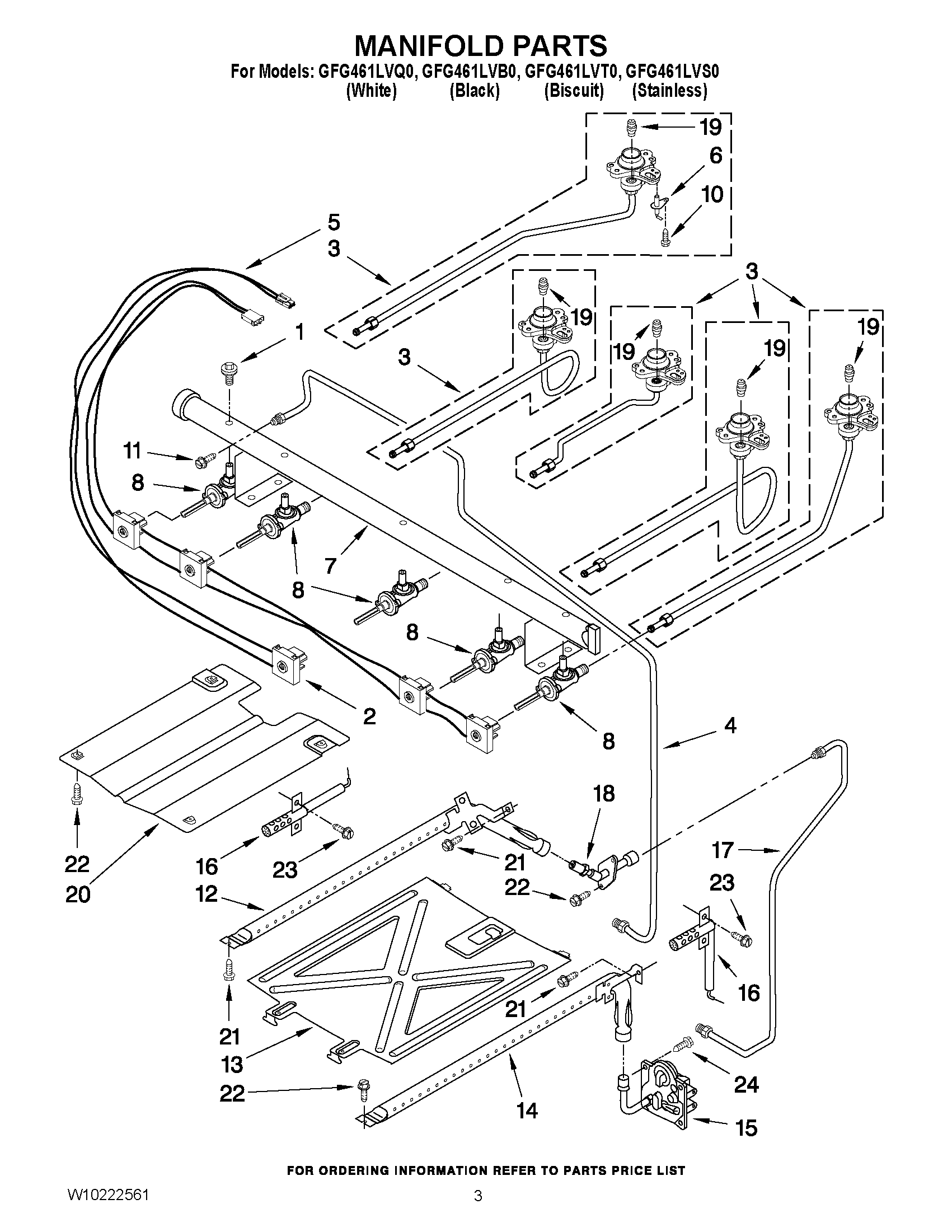

GFG461LVB0 03 – MANIFOLD PARTS

GFG461LVB0 03 – MANIFOLD PARTS

Written by

in

GFG461LVB0 03 – MANIFOLD PARTS

Products

PositionProduct
NISPUD-ORFCE
1WP8273096 Whirlpool Screw
2Harness, Switch
3W10216416 Whirlpool Orifice Holder
3Tubing, Burner W/Orifice (Left Rear)
3W10216420 Whirlpool Orifice Holder
3Tubing, Burner W/Orifice (Center)
3Tubing, Burner W/Orifice (Right Rear)
4Tubing (Manifold to Regulator)
5WPW10295998 Whirlpool Wire Harness
6WPW10216419 Whirlpool Surface Igniter
7Pipe, Manifold
8WP9757218 Whirlpool Burner Valve
8Valve (Right Rear)
8WPW10170204 Whirlpool Burner Valve
10WP8273062 Whirlpool Screw
11Bolt
12WP8054078 Whirlpool Broiler Burner
13WPW10184491 Whirlpool Burner Baffle
14WP9758078 Whirlpool Oven Burner
15WPW10293048 Whirlpool Gas Valve
16WP9758079 Whirlpool Oven Igniter
16WP8054129 Whirlpool Oven Igniter
17Tubing (Broiler Fitting To Valve)
18Fitting, Broiler
19WPW10170510 Whirlpool Orifice
19WPW10170507 Whirlpool Orifice
19W10853607 Whirlpool Orifice
19WPW10170508 Whirlpool Orifice Spud
19WPW10170506 Whirlpool Orifice Spud
20W10137062 Whirlpool Burner Baffle
213196265 Whirlpool Oven Screw
22SCREW
23W11684507 Whirlpool Screw
24WP3400016 Whirlpool Screw Assembly
