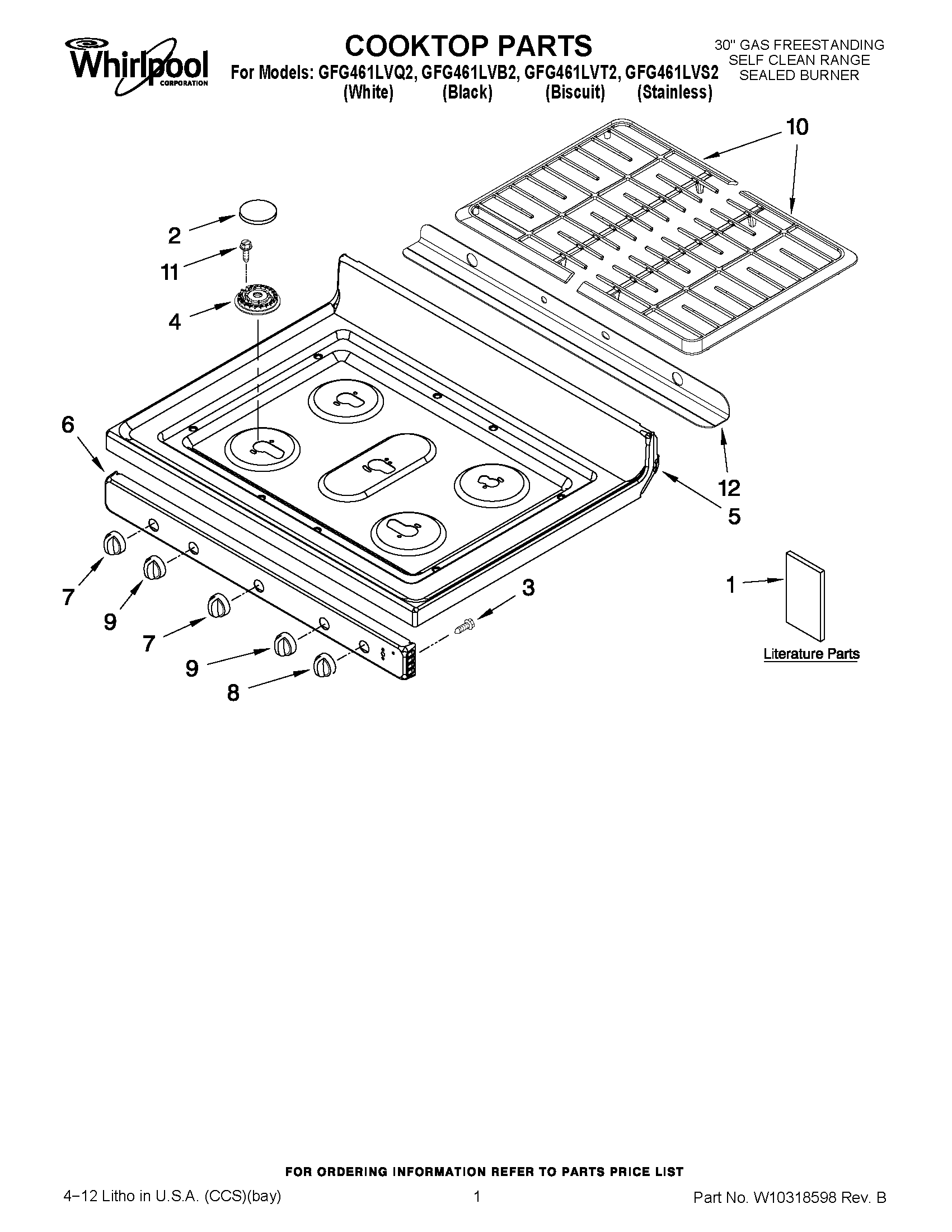

GFG461LVB2 01 – COOKTOP PARTS

Products

Position	Product
1	Tech Sheet (French)
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	Anti-Tip Template (English/Spanish)
1	Anti-Tip Template (English/French)
1	Installation Instructions
1	Tech Sheet (English)
1	Use & Care Guide
2	WPW10183372 Whirlpool Burner Cap
2	WPW10183374 Whirlpool Burner Cap
3	WP3196557 Whirlpool Screw
4	WPW10406878 Whirlpool Burner Base (16K)
4	WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
4	WPW10406243 Whirlpool Burner Head Auxiliary 6K
5	Cooktop (White)
5	Cooktop (Black)
5	Cooktop (Biscuit)
6	Panel, Manifold (Stainless)
6	Panel, Manifold (Biscuit)
6	Panel, Manifold (Black)
6	Panel, Manifold (White)
7	W10160650 Whirlpool Knob
7	WPW10160648 Whirlpool Knob
7	WPW10160649 Whirlpool Knob
8	W10134132 Whirlpool Knob
8	WPW10134130 Whirlpool Knob
8	WPW10134131 Whirlpool Knob
9	KNOB,POWERBURNER (WHITE)
9	WPW10134134 Whirlpool Knob
9	W10134135 Whirlpool Knob
10	KIT, BURNER GRATE (GREY)
10	KIT, BURNER GRATE (BLACK)
11	WP3368921 Whirlpool Screw
12	DEFLECTOR, FLUE (WHITE)
12	DEFLECTOR, FLUE (BLACK)
12	Deflector, Flue (Biscuit)
