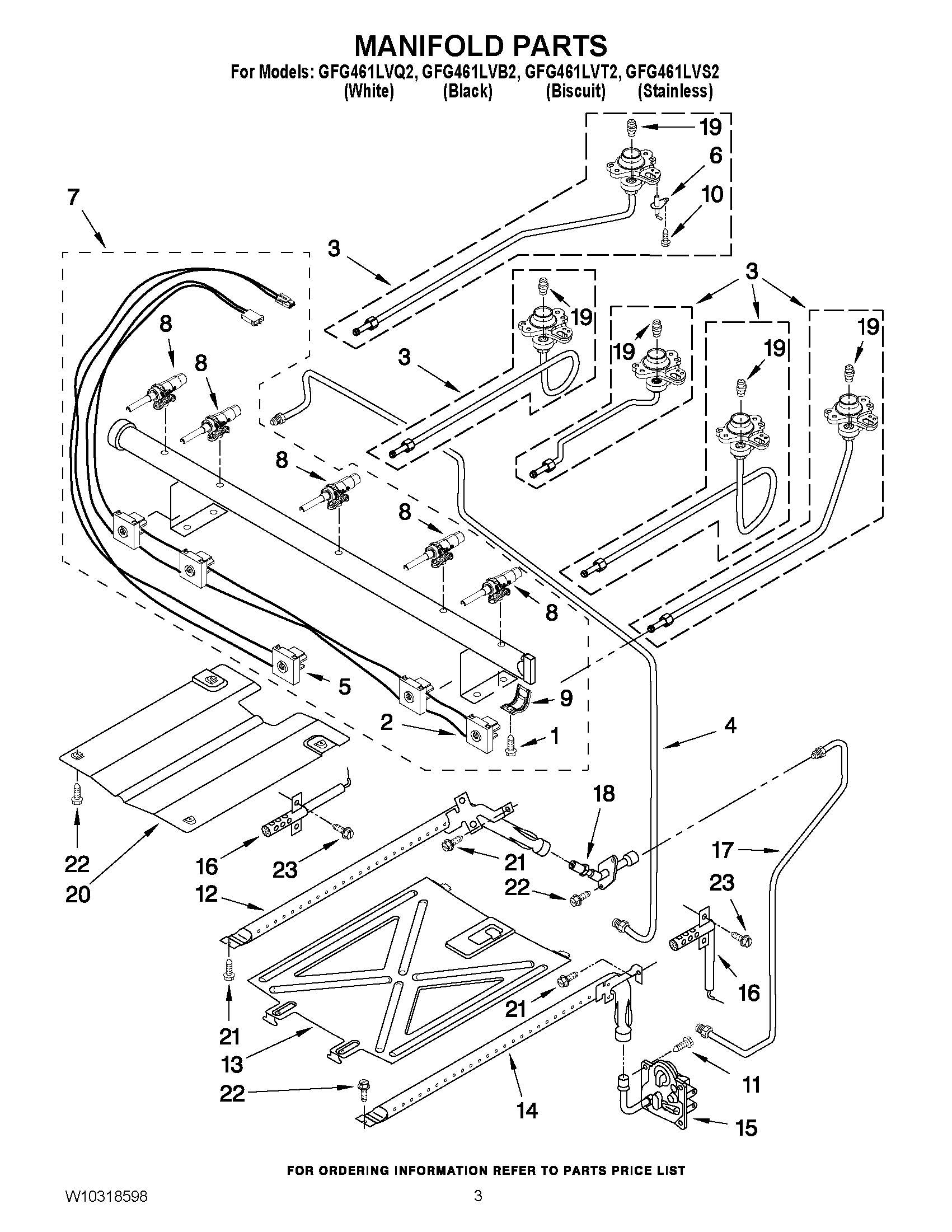

GFG461LVB2 03 – MANIFOLD PARTS

GFG461LVB2 03 – MANIFOLD PARTS

Written by

in

GFG461LVB2 03 – MANIFOLD PARTS

Products

PositionProduct
NISPUD-ORFCE
1W10295997 Whirlpool Screw
2WPW10295998 Whirlpool Wire Harness
3WPW10157415 Whirlpool Orifice Holder
3TUBING, BURNER W/ORIFICE (LEFT REAR (9.5 K))
3WPW10157419 Whirlpool Orifice Holder
3Tubing, Burner W/Orifice (Right Front)
3HOLDER, ORIFICE ((LF) 15K)
4TUBING (MANIFOLD TO REGULATOR)
5W10303698 Whirlpool Wire Harness
6WPW10216419 Whirlpool Surface Igniter
7W10314239 Whirlpool Manifold Pipe
8WPW10279615 Whirlpool Burner Valve
8WPW10279614 Whirlpool Burner Valve
8W10279613 Whirlpool Burner Valve
8WPW10247744 Whirlpool Burner Valve
9W10949105 Whirlpool Mounting Bracket
10WP8273062 Whirlpool Screw
11WP3400016 Whirlpool Screw Assembly
12WP8054078 Whirlpool Broiler Burner
13WPW10184491 Whirlpool Burner Baffle
14WP9758078 Whirlpool Oven Burner
15WPW10293048 Whirlpool Gas Valve
16WP9758079 Whirlpool Oven Igniter
16WP8054129 Whirlpool Oven Igniter
17Tubing (Broiler Fitting To Valve)
18Fitting, Broiler
19WPW10170510 Whirlpool Orifice
19WPW10170507 Whirlpool Orifice
19W10853607 Whirlpool Orifice
19WPW10170508 Whirlpool Orifice Spud
19WPW10170506 Whirlpool Orifice Spud
20W10137062 Whirlpool Burner Baffle
213196265 Whirlpool Oven Screw
22SCREW
23W11684507 Whirlpool Screw
