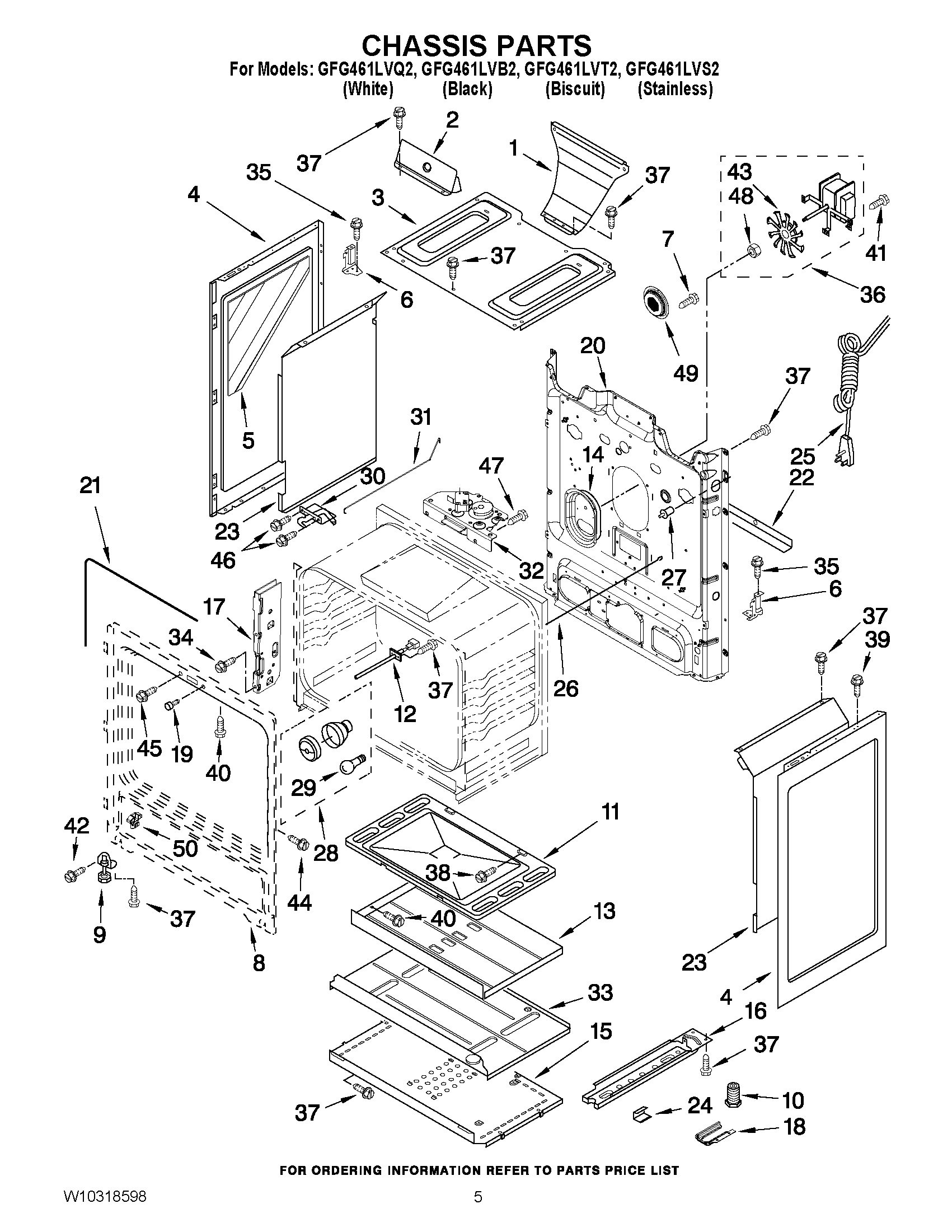

GFG461LVB2 04 – CHASSIS PARTS

GFG461LVB2 04 – CHASSIS PARTS

Written by

in

GFG461LVB2 04 – CHASSIS PARTS

Products

PositionProduct
NIW11688737 Whirlpool Insulation
NIW11684915 Whirlpool Insulation
1W11457094 Whirlpool Oven Flue
2WP8272747 Whirlpool Heat Shield
3W11379351 Whirlpool Burner Box
4WPW10575396 Whirlpool Side Panel
4W11730303 Whirlpool Side Panel
4W10162246 Whirlpool Side Panel
5W10182346 Whirlpool Insulation Assembly
68523249 Whirlpool Oven Support Bracket
7WP3196154 Whirlpool Screw Assembly
8CABINET (NOT A SERVICEABLE PART)
9WP3196037 Whirlpool Leveling Foot
10WPW10058460 Whirlpool Appliance Levelling Leg
11WP3195097 Whirlpool Oven Bottom
12WPW10181986 Whirlpool Oven Sensor
138053967 Whirlpool Oven Heat Baffle
14W10134126 Whirlpool Cover
158053968 Whirlpool Oven Heat Shield
16WPW10306546 Whirlpool Base Rail
17W10647259 Whirlpool Hinge Receiver
18W11447673 Whirlpool Range Tip Anchor
19W10877054 Whirlpool Spacer Assembly
20Back, Main
21W11542153 Whirlpool Door Gasket
22Brace, Main Back
239761449 Whirlpool Oven Retainer
239761448 Whirlpool Oven Retainer
24W10137382 Whirlpool Clip
25WP9757891 Whirlpool Power Cord
269757239 Whirlpool Oven Door Rod
27WP9757262 Whirlpool Light Switch
28W11594027 Whirlpool Range Oven Light Socket
29RANGE ONLY 40W 120V APPL BULB
30WP9761013 Whirlpool Door Latch
31W10078370 Whirlpool Latch Rod
32WPW10107820 Whirlpool Door Latch
338053969 Whirlpool Heat Shield
34W10777162 Whirlpool Screw
35WP3196557 Whirlpool Screw
36W11676354 Whirlpool Range Convection Fan
38Screw
393196166 Whirlpool Screw
40SCREW
41WP4449809 Whirlpool Screw
43W10758272 Whirlpool Convection Fan
44WP7101P246-60 Whirlpool Screw
45WP3400832 Whirlpool Screw
46W11169708 Whirlpool Screw
47W10491985 Whirlpool Screw
48NUT
49WPW10134124 Whirlpool Fan Cover
50WPW10114344 Whirlpool Drawer Glide
