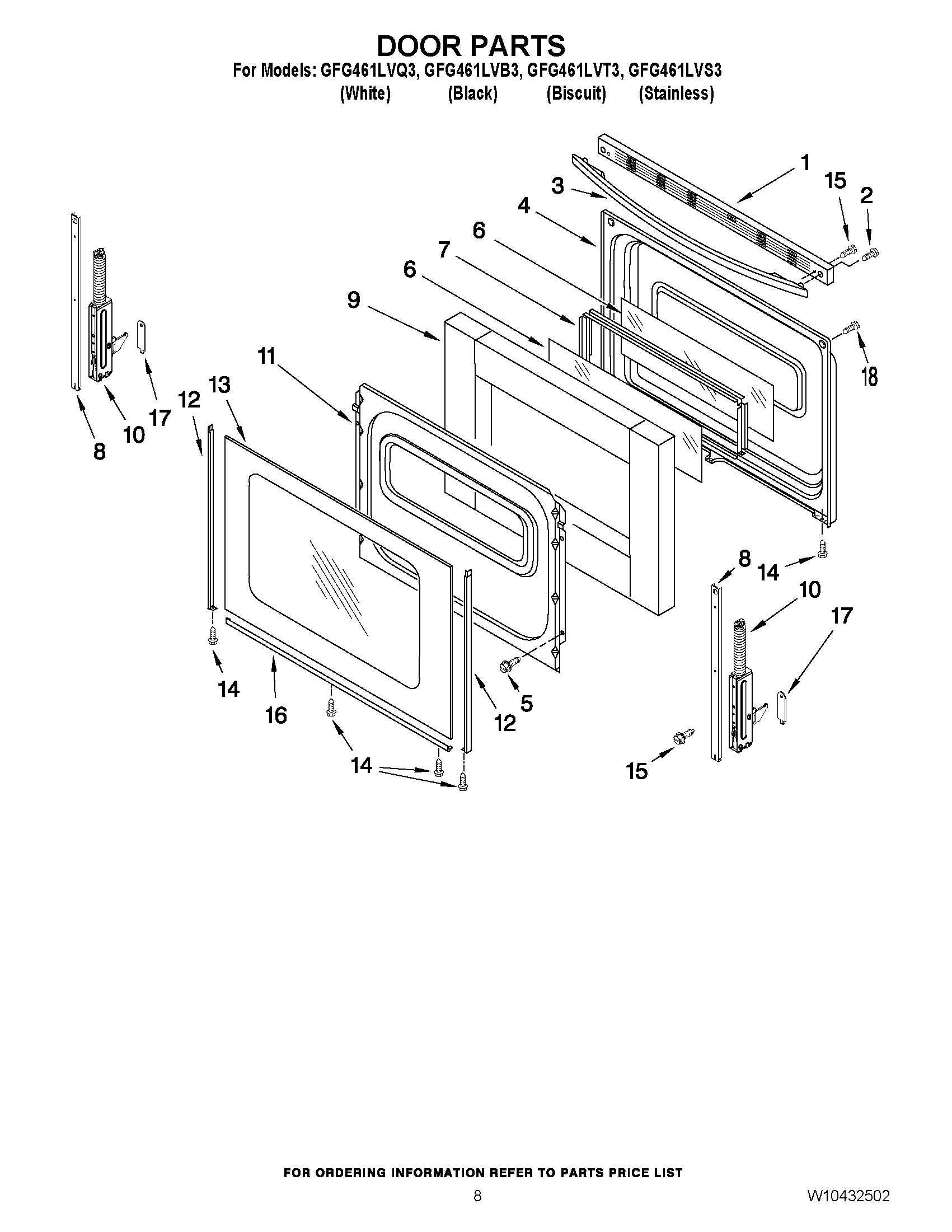

GFG461LVB3 06 – DOOR PARTS

Products

Position	Product
1	TRIM-VENT
1	W10817433 Whirlpool Vent Trim
1	WPW10310923 Whirlpool Vent Trim
2	W10817436 Whirlpool Screw
3	WPW10323589 Whirlpool Door Handle
3	W10817434 Whirlpool Door Handle
3	HANDLE, DOOR (BISCUIT)
3	WPW10144883 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	W11502236 Whirlpool Door Trim
9	WPW10278991 Whirlpool Insulation
10	WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
10	WPW10299227 Whirlpool Range Door Hinge
11	W11539580 Whirlpool Retainer
12	WP8523173 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	WP8523166 Whirlpool Door Trim
13	WPW10118455 Whirlpool Door Glass Assembly
13	WPW10118454 Whirlpool Door Outer Glass White
13	WPW10330077 Whirlpool Door Glass
13	Glass, Outer Door (Biscuit)
14	W10491985 Whirlpool Screw
15	W10777162 Whirlpool Screw
16	WP8523178 Whirlpool Door Trim
16	WP8523177 Whirlpool Door Trim Assembly
16	WP8523175 Whirlpool Door Trim Assembly
17	9761517 Whirlpool Oven Clip Assembly
18	WPW10200660 Whirlpool Range Oven Door Handle Screw
