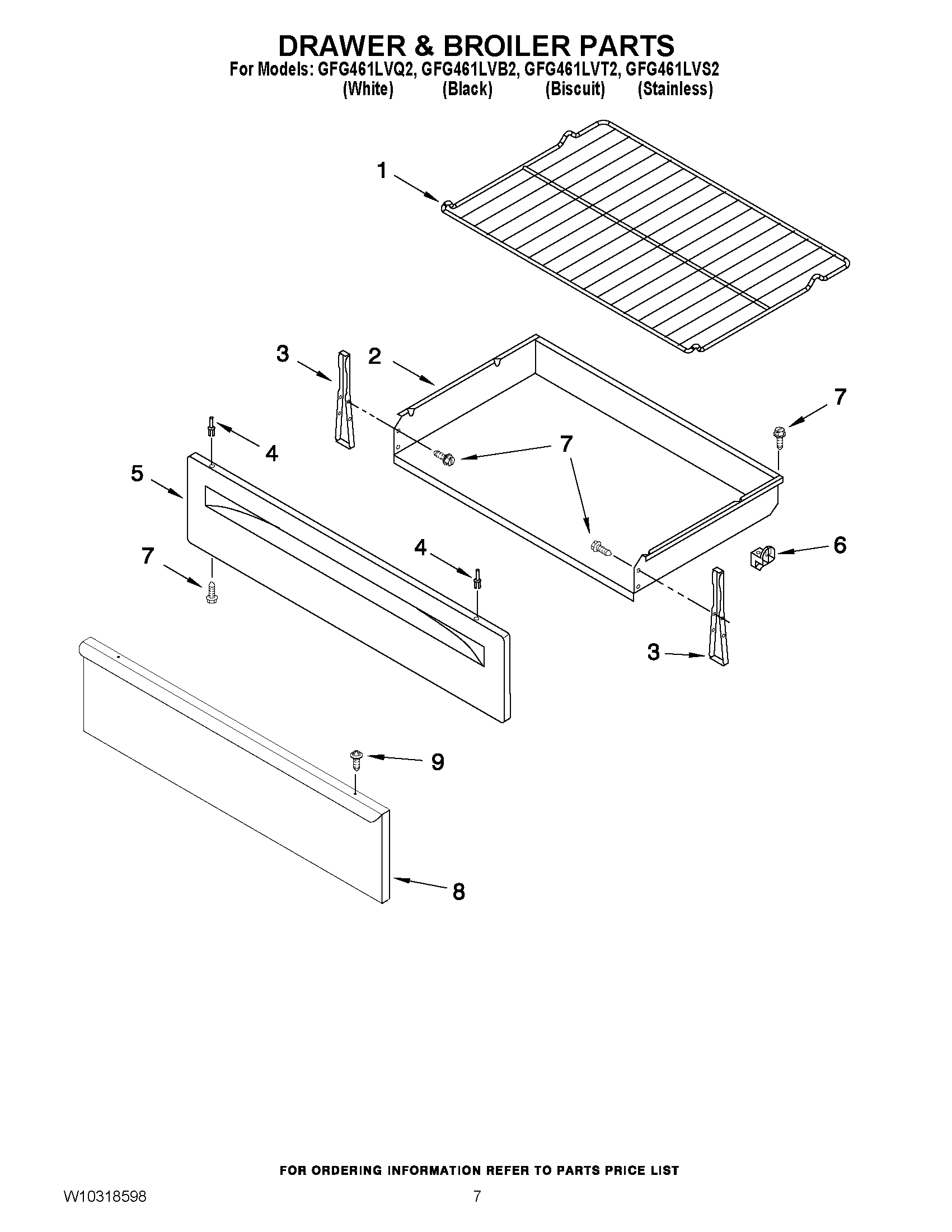

GFG461LVQ2 05 – DRAWER & BROILER PARTS

Products

PositionProduct
1RACK-OVEN
2DRAWER, STORAGE
3Bracket, Drawer
3BRKT-MNTG
4WP3196813 Whirlpool Rivet
4WP3196814 Whirlpool Rivet
5Panel, Drawer Front (Biscuit)
5W11230490 Whirlpool Drawer Panel
5W11230486 Whirlpool Drawer Panel
6WP8053334 Whirlpool Drawer Glide
7WP3196175 Whirlpool Screw
8PANEL, DRAWER (STAINLESS ONLY)
9Screw
