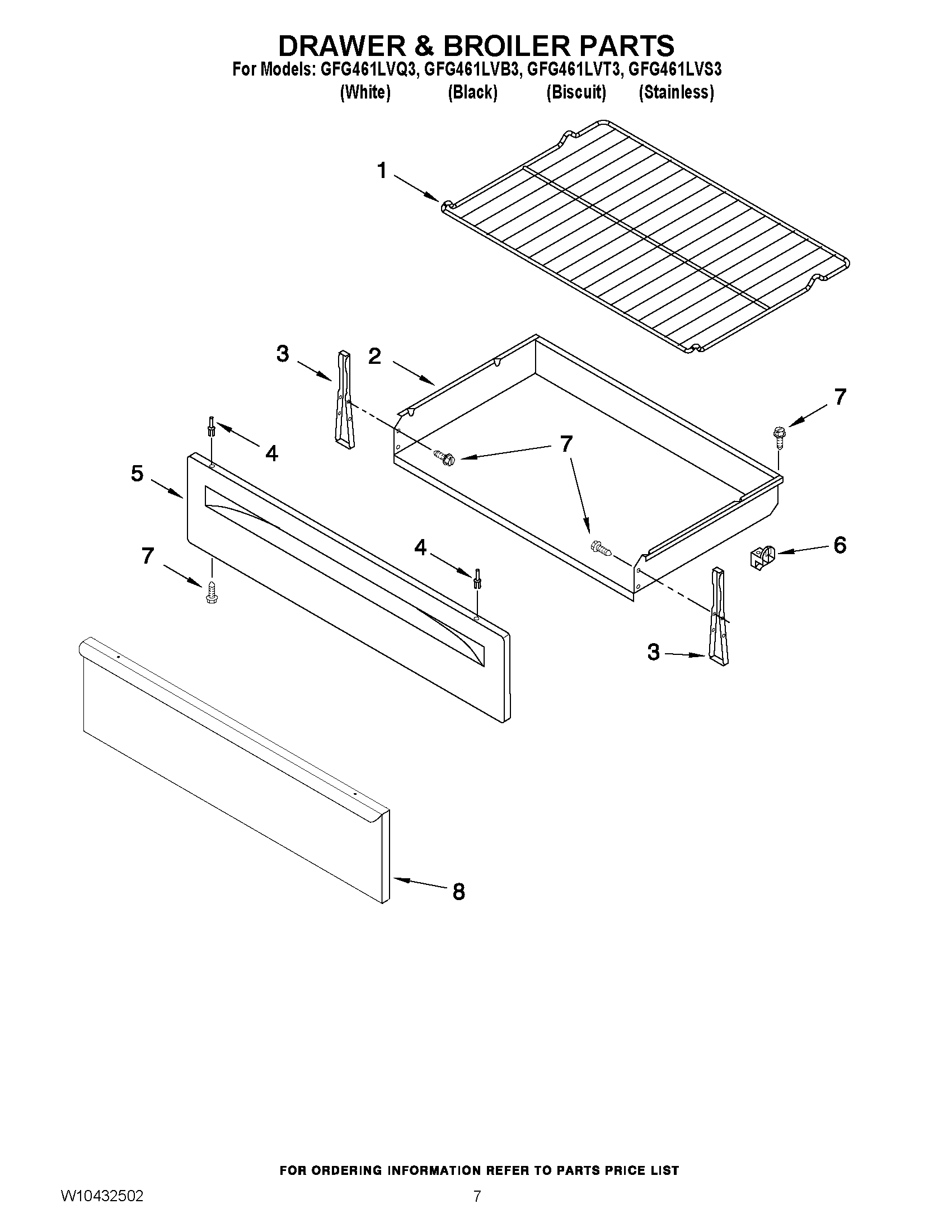

GFG461LVS3 05 – DRAWER & BROILER PARTS

GFG461LVS3 05 – DRAWER & BROILER PARTS

Written by

in

GFG461LVS3 05 – DRAWER & BROILER PARTS

Products

Position	Product
1	RACK-OVEN
2	Bracket, Drawer
2	BRKT-MNTG
2	DRAWER, STORAGE
4	WP3196813 Whirlpool Rivet
4	WP3196814 Whirlpool Rivet
5	Panel, Drawer Front (Biscuit)
5	W11230490 Whirlpool Drawer Panel
5	W11230486 Whirlpool Drawer Panel
6	WP8053334 Whirlpool Drawer Glide
7	WP3196175 Whirlpool Screw
8	PANEL, DRAWER (STAINLESS ONLY)
