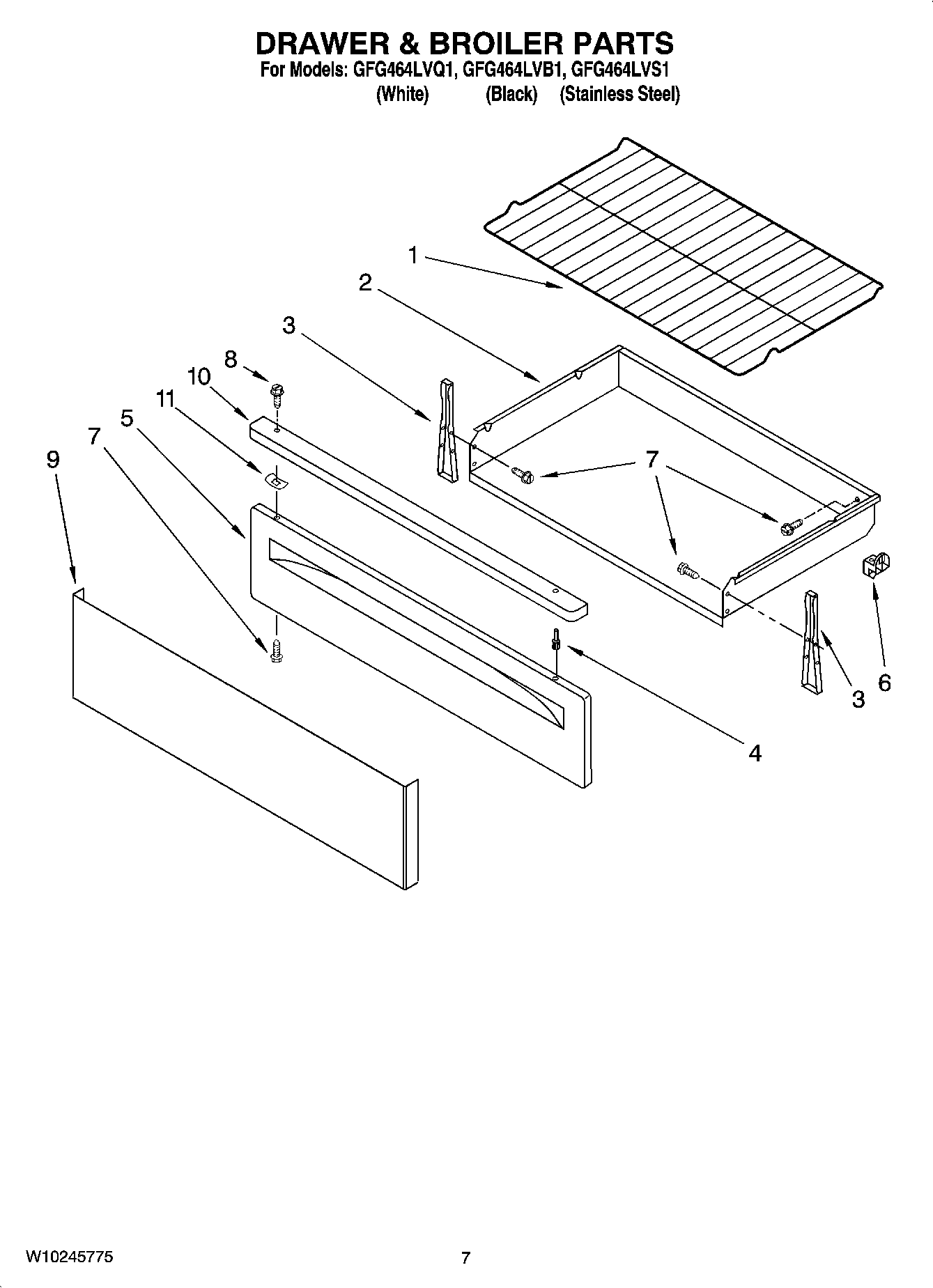

GFG464LVB1 05 – DRAWER & BROILER PARTS

GFG464LVB1 05 – DRAWER & BROILER PARTS

Written by

in

GFG464LVB1 05 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2Drawer, Storage
3Bracket, Drawer
4WP3196814 Whirlpool Rivet
4WP3196813 Whirlpool Rivet
5W11230486 Whirlpool Drawer Panel
5W11230490 Whirlpool Drawer Panel
6WP8053334 Whirlpool Drawer Glide
7WP3400832 Whirlpool Screw
8WPW10031790 Whirlpool Screw
9Panel, Drawer Frnt (Stainless)
10Handle (SS Model)
11WP9781235 Whirlpool Clip
