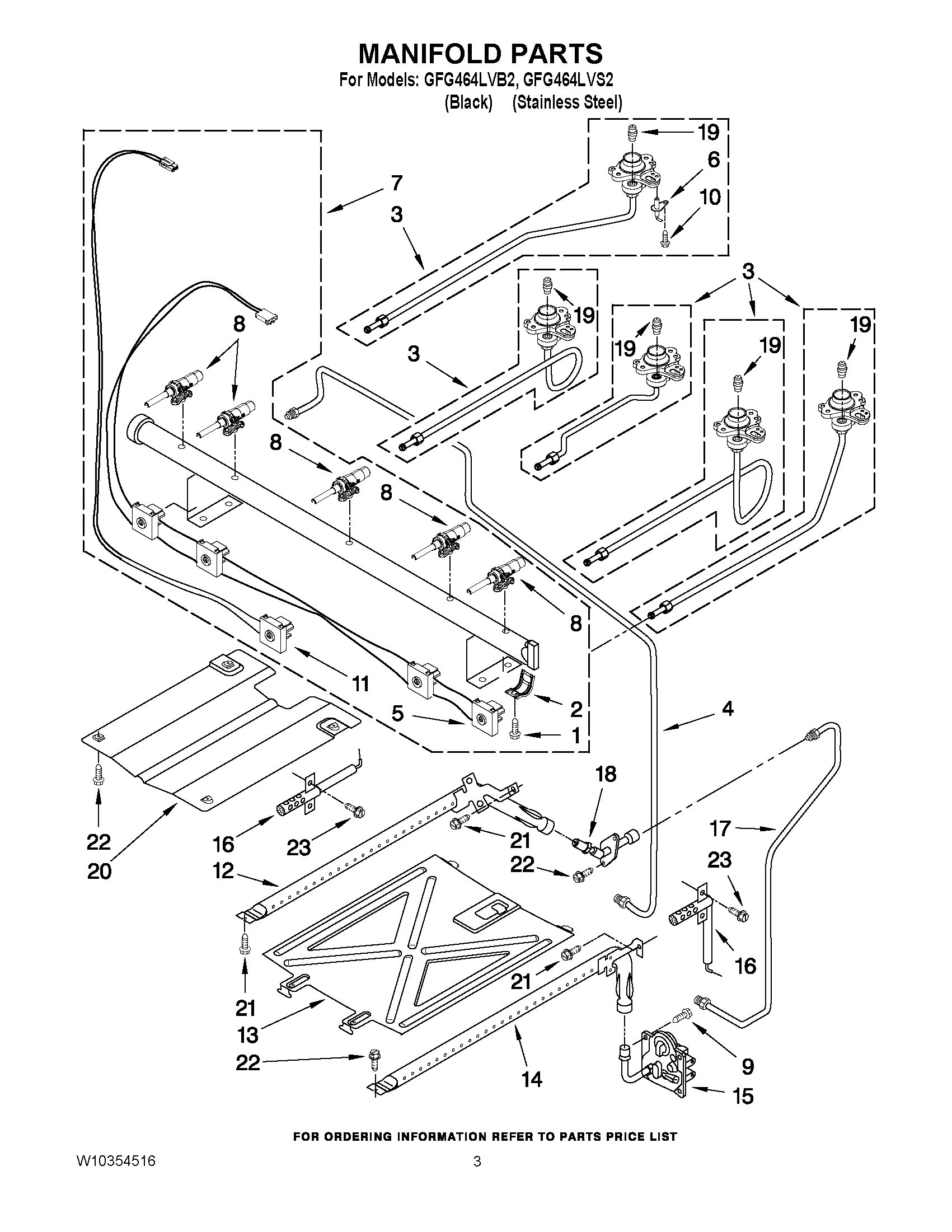

GFG464LVB2 03 – MANIFOLD PARTS

Products

Position	Product
NI	SPUD-ORFCE
1	W10295997 Whirlpool Screw
2	W10949105 Whirlpool Mounting Bracket
3	Tubing, Burner W/Orifice (Center & Left Rear)
3	Tubing, Burner W/Orifice (Left & Right Front)
3	Tubing, Burner W/Orifice (Right Rear)
4	TUBING (MANIFOLD TO REGULATOR)
5	WPW10295998 Whirlpool Wire Harness
6	WPW10216419 Whirlpool Surface Igniter
7	W10314239 Whirlpool Manifold Pipe
8	W10279613 Whirlpool Burner Valve
8	WPW10279615 Whirlpool Burner Valve
8	WPW10279614 Whirlpool Burner Valve
8	WPW10247744 Whirlpool Burner Valve
9	WP3400016 Whirlpool Screw Assembly
10	WP8273062 Whirlpool Screw
11	W10303698 Whirlpool Wire Harness
12	WP8054078 Whirlpool Broiler Burner
13	WPW10184491 Whirlpool Burner Baffle
14	WP9758078 Whirlpool Oven Burner
15	WPW10293048 Whirlpool Gas Valve
16	WP9758079 Whirlpool Oven Igniter
16	WP8054129 Whirlpool Oven Igniter
17	Tubing (Broiler Fitting To Valve)
18	Fitting, Broiler
19	WPW10170510 Whirlpool Orifice
19	WPW10170507 Whirlpool Orifice
19	W10853607 Whirlpool Orifice
19	WPW10170508 Whirlpool Orifice Spud
19	WPW10170506 Whirlpool Orifice Spud
20	W10137062 Whirlpool Burner Baffle
21	3196265 Whirlpool Oven Screw
22	SCREW
23	W11684507 Whirlpool Screw
