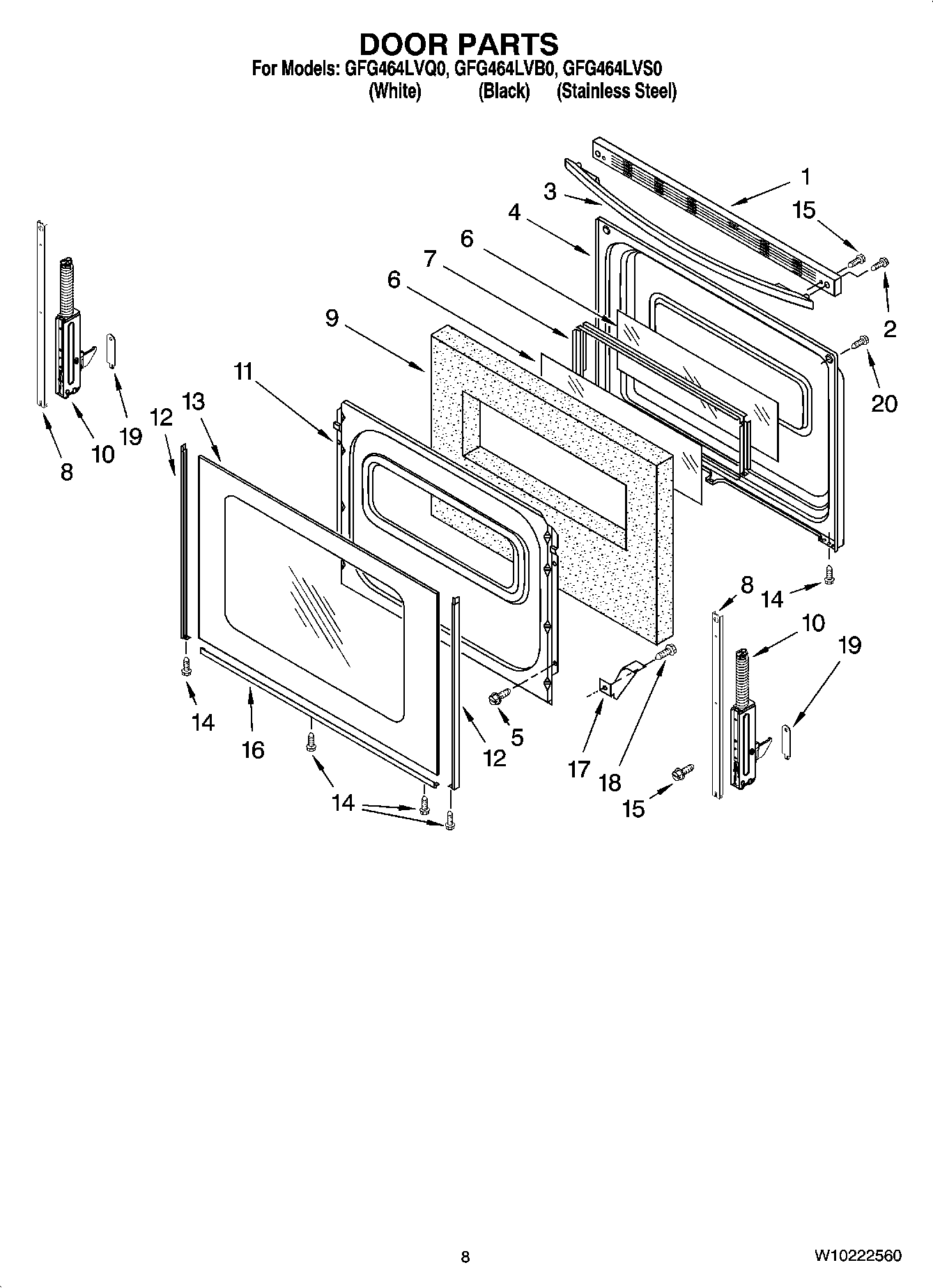

GFG464LVQ0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

GFG464LVQ0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GFG464LVQ0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI65046A1
3196696 Whirlpool Clip
WP3196174 Whirlpool Screw
W11244557 Whirlpool Screw
8212471 Whirlpool Oven Paint
W10170249 Whirlpool Wire Harness
WPW10182767 Whirlpool Wire Tie
3196896 Whirlpool Clip
WPW10701462 Whirlpool Wire Harness
W10170251 Whirlpool Wire Harness
W10157261 Whirlpool Wire Harness
WPL ARI65041A9
WPL ARI65042A2
WPL ARI65043A1
WPL ARI65044A6
WPL ARI65045A8
16515 Whirlpool Clip
3400964 Whirlpool Oven Clip
350930 Whirlpool White Spray Paint
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
511873 Whirlpool Refrigerator Paint
4396923 Whirlpool Broil Pan Set Gray Porcelain
350942 Whirlpool Spray Paint
WPL 799832
285006 Whirlpool Spray
W11447673 Whirlpool Range Tip Anchor
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
1TRIM-VENT
1W10817433 Whirlpool Vent Trim
2W10817436 Whirlpool Screw
3WPW10323589 Whirlpool Door Handle
3W10817434 Whirlpool Door Handle
3WPW10144883 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8W11502236 Whirlpool Door Trim
9WPW10278991 Whirlpool Insulation
10W10347466 Whirlpool Door Hinge
11W11539580 Whirlpool Retainer
128184858 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12W10761014 Whirlpool Right Door Trim
12WP8523166 Whirlpool Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
13WPW10118455 Whirlpool Door Glass Assembly
13WPW10118454 Whirlpool Door Outer Glass White
14W10491985 Whirlpool Screw
15W10777162 Whirlpool Screw
16WP8523177 Whirlpool Door Trim Assembly
16WP8523175 Whirlpool Door Trim Assembly
17W10137382 Whirlpool Clip
18WP3196175 Whirlpool Screw
199761517 Whirlpool Oven Clip Assembly
20WPW10200660 Whirlpool Range Oven Door Handle Screw
