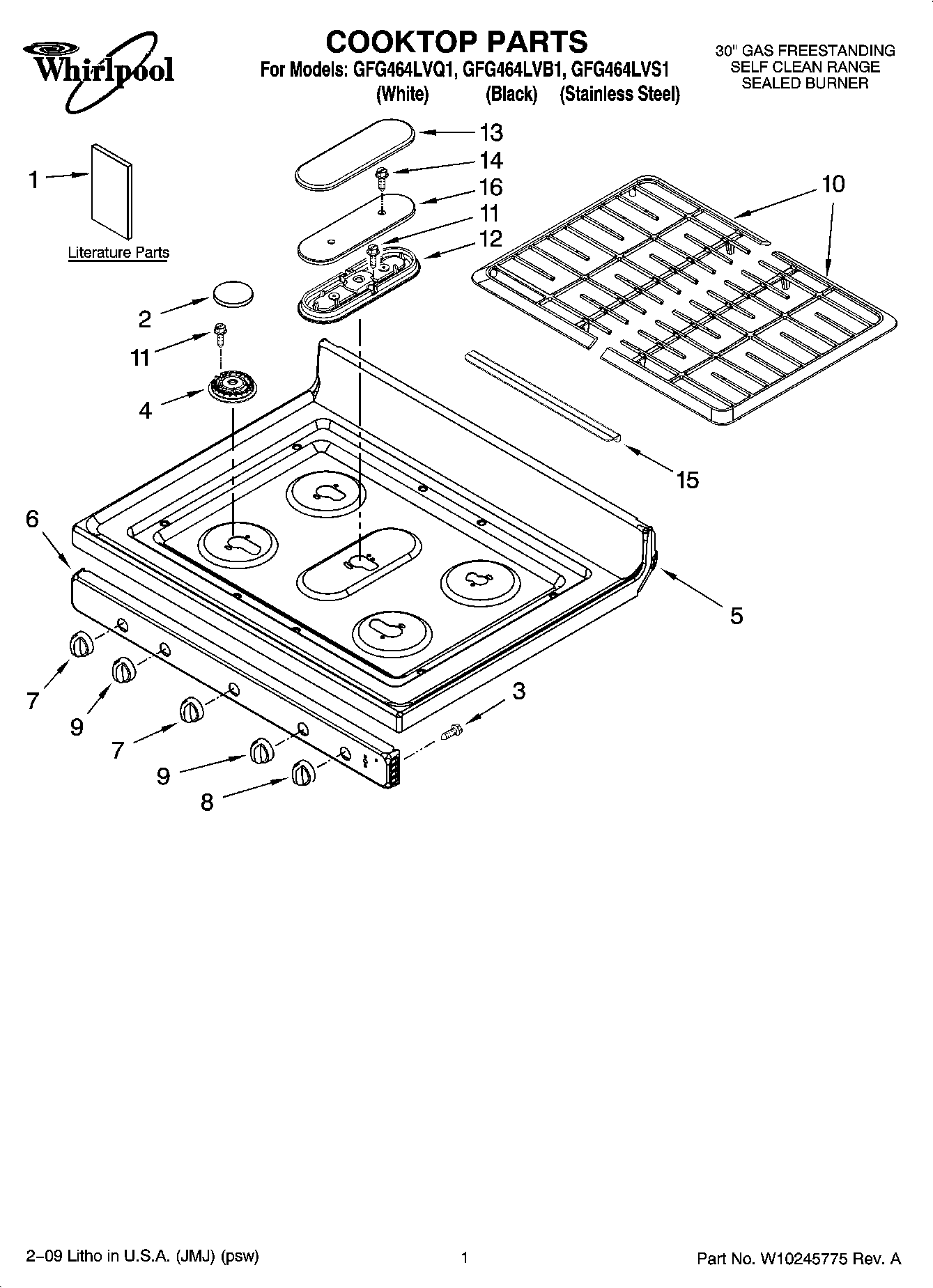

GFG464LVQ1 01 – COOKTOP PARTS

Products

Position	Product
1	Tech Sheet (English)
1	Use & Care Guide
1	Installation Instructions
1	Anti-Tip Template (English/French)
1	Anti-Tip Template (English/Spanish)
1	SAFER COOKING TIPS (ENGLISH
2	WPW10169975 Whirlpool Burner Cap
2	WPW10183370 Whirlpool Burner Cap
2	WPW10183369 Whirlpool Burner Cap
2	WPW10183368 Whirlpool Burner Cap
2	W10169973 Whirlpool Burner Cap
2	Cap, Burner LF & RF (17K) (Grey)
3	WP3196557 Whirlpool Screw
4	WPW10406878 Whirlpool Burner Base (16K)
4	WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
4	WPW10406243 Whirlpool Burner Head Auxiliary 6K
5	Cooktop (Black)
5	Cooktop (White)
6	Panel, Manifold (Stainless)
6	Panel, Manifold (Black)
6	Panel, Manifold (White)
7	WPW10160649 Whirlpool Knob
7	WPW10160648 Whirlpool Knob
8	WPW10134130 Whirlpool Knob
8	WPW10134131 Whirlpool Knob
9	KNOB,POWERBURNER (WHITE)
9	WPW10134134 Whirlpool Knob
10	GRATE, BURNER (BLACK)
10	GRATE, BURNER (GREY)
11	WP3368921 Whirlpool Screw
12	WPW10336094 Whirlpool Burner Assembly Top
13	W10171137 Whirlpool Burner Cap
13	WPW10171140 Whirlpool Burner Cap
14	W10217535 Whirlpool Screw
15	DEFLECTOR, FLUE (WHITE)
15	DEFLECTOR, FLUE (BLACK)
16	WPW10333445 Whirlpool Burner Base
