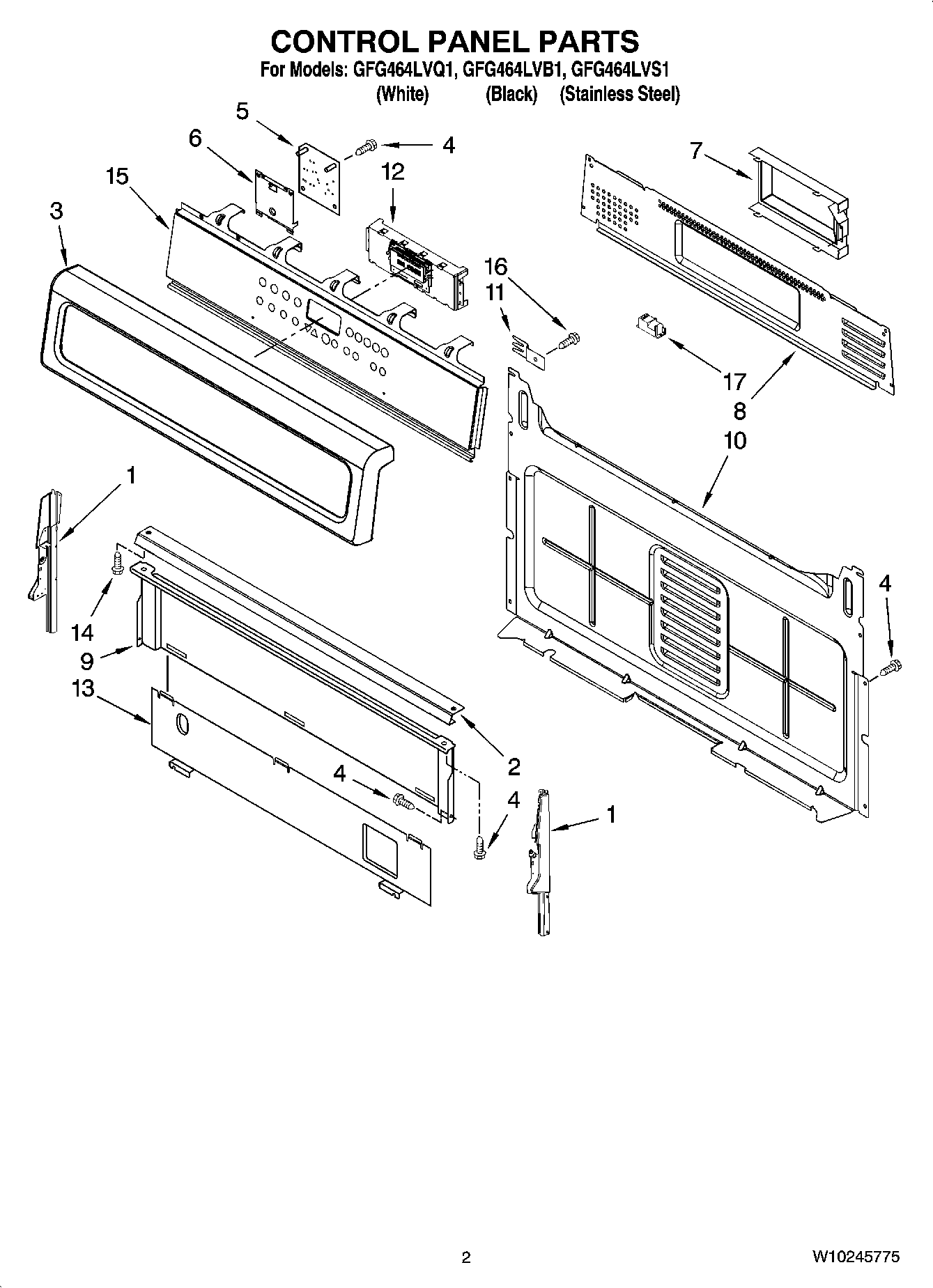

GFG464LVS1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219365 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
2	Brkt-Mntg, Console
3	Panel, Control (Black)
3	Panel, Control (Stainless)
3	Panel, Control (White)
4	SCREW
5	WPW10331686 Whirlpool Oven Spark Module
6	Brkt-Mntg, DSI
7	W10158780 Whirlpool Rear Cover
8	W10198745 Whirlpool Rear Cover
9	W10192841 Whirlpool Heat Shield
10	W10184251 Whirlpool Rear Cover
11	8523412 Whirlpool Mounting Bracket
12	Control, Range
13	8053505 Whirlpool Oven Shield
14	3196166 Whirlpool Screw
14	WP3400832 Whirlpool Screw
15	W10224752 Whirlpool Membrane Switch
15	Active Overlay Assembly (Black)
16	WP3196557 Whirlpool Screw
17	MODULE, SPARK
