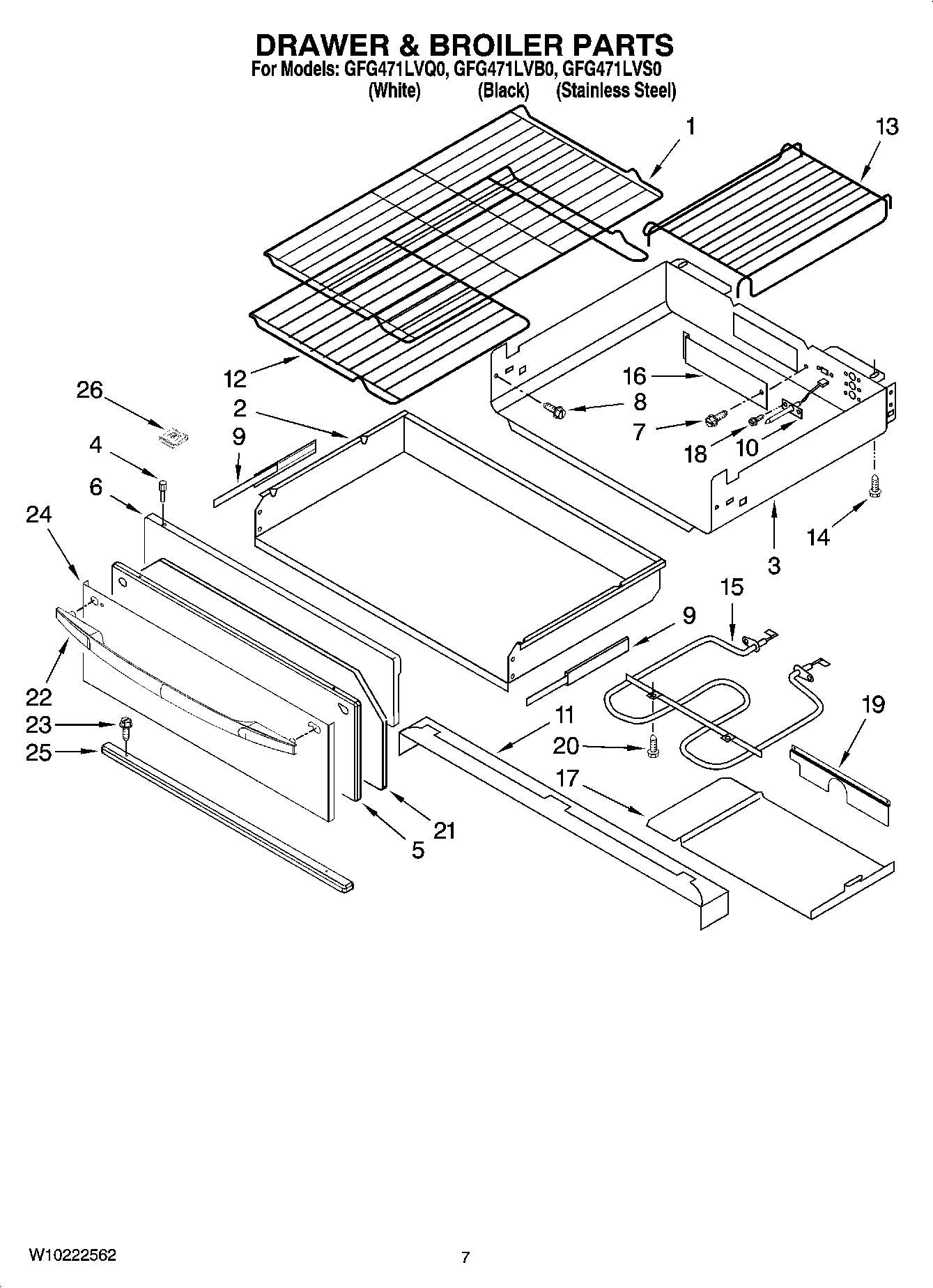

GFG471LVB0 05 – DRAWER & BROILER PARTS

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	Drawer, Warming
3	Enclosure, Drawer
4	WP3196813 Whirlpool Rivet
4	WP3196814 Whirlpool Rivet
5	W11230486 Whirlpool Drawer Panel
5	W11230490 Whirlpool Drawer Panel
6	Panel, Inner
7	WPY706189 Whirlpool Stove Screw
8	WP3400832 Whirlpool Screw
9	Slide, Drawer (Right Hand)
9	Slide, Drawer (Left Hand)
10	WPW10131827 Whirlpool Sensor
11	Shield, Drawer
12	WP8274021 Whirlpool Oven Rack
13	WP8274022 Whirlpool Oven Rack
14	SCREW
15	Element, Warming
16	Cover, Access
17	Baffle, Radiant
19	Cover, Element
20	WP3196174 Whirlpool Screw
21	Insl, Bake Door
22	Handle (White)
22	Handle (Black)
23	WPW10031790 Whirlpool Screw
24	Panel, Drawer Frnt (Stainless)
25	Handle (SS Model)
26	Clip(Stls. Model)
