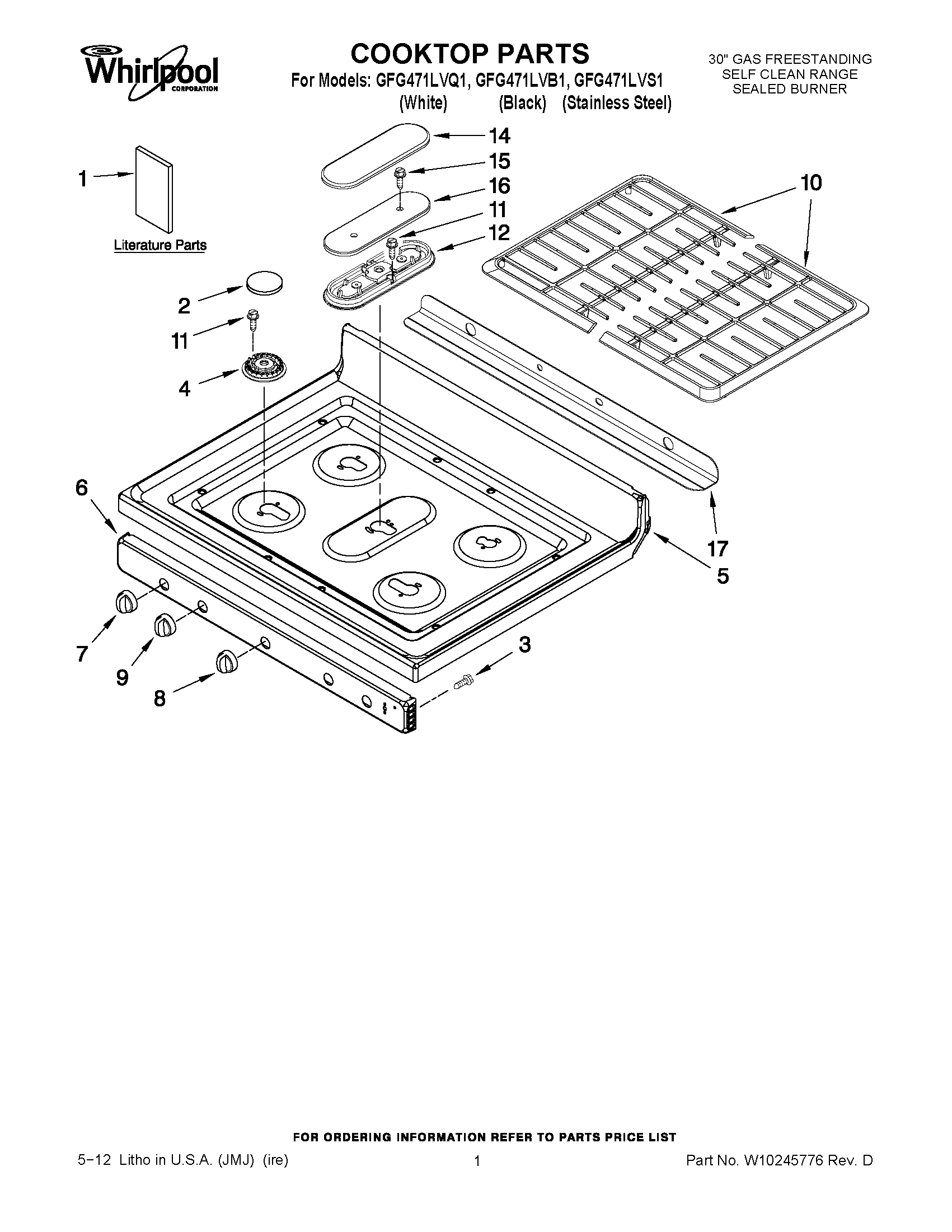

GFG471LVB1 01 – COOKTOP PARTS

Products

Position	Product
1	Tech Sheet
1	SAFER COOKING TIPS (ENGLISH
1	Anti-Tip Template (English/Spanish)
1	Anti-Tip Template (English/French)
1	Use & Care Guide
1	Installation Instructions
2	WPW10183369 Whirlpool Burner Cap
2	WPW10183370 Whirlpool Burner Cap
2	WPW10169975 Whirlpool Burner Cap
2	W10169973 Whirlpool Burner Cap
2	Cap, Burner LF & RF (17K) (Grey)
2	WPW10183368 Whirlpool Burner Cap
3	WP3196557 Whirlpool Screw
4	WPW10406878 Whirlpool Burner Base (16K)
4	WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
4	WPW10406243 Whirlpool Burner Head Auxiliary 6K
5	Cooktop (White)
5	Cooktop (Black)
6	Panel, Manifold (Stainless)
6	Panel, Manifold (White)
6	Panel, Manifold (Black)
7	WPW10160649 Whirlpool Knob
7	WPW10160648 Whirlpool Knob
8	WPW10134130 Whirlpool Knob
8	WPW10134131 Whirlpool Knob
9	KNOB,POWERBURNER (WHITE)
9	WPW10134134 Whirlpool Knob
10	GRATE, BURNER (BLACK)
10	GRATE, BURNER (GREY)
11	WP3368921 Whirlpool Screw
12	WPW10336094 Whirlpool Burner Assembly Top
14	WPW10171140 Whirlpool Burner Cap
14	WPW10333445 Whirlpool Burner Base
15	W10217535 Whirlpool Screw
16	W10171137 Whirlpool Burner Cap
17	DEFLECTOR, FLUE (WHITE)
17	DEFLECTOR, FLUE (BLACK)
