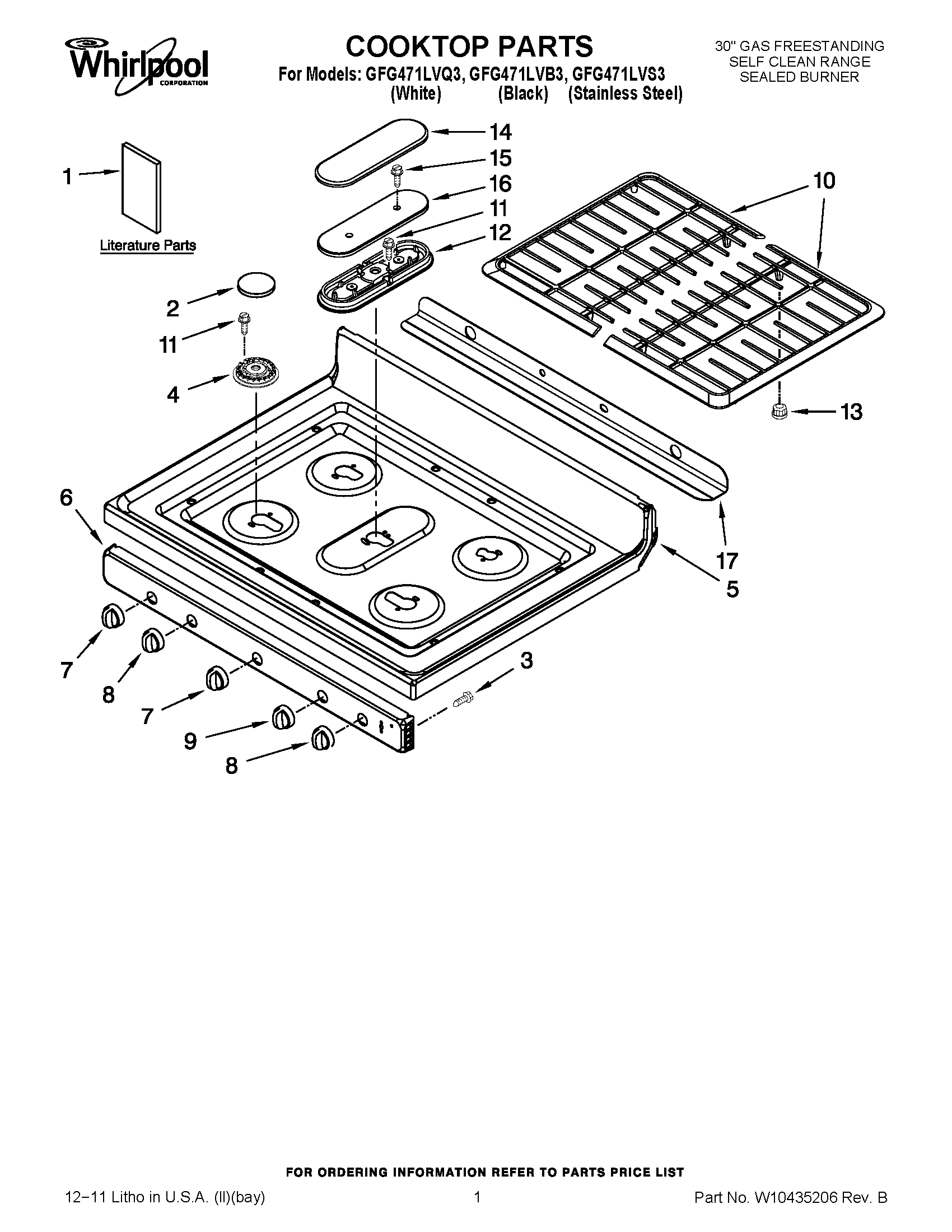

GFG471LVB3 01 – COOKTOP PARTS

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	Anti-Tip Template (English/Spanish)
1	Anti-Tip Template (English/French)
1	TECH SHEET
1	INSTALLATION INSTRUCTIONS
1	Use & Care Guide
2	SET, BURNER CAP (WETSTONE)
2	WPW10183375 Whirlpool Burner Cap
3	WP3196557 Whirlpool Screw
4	WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
4	WPW10406243 Whirlpool Burner Head Auxiliary 6K
4	WPW10406878 Whirlpool Burner Base (16K)
5	Cooktop (Black)
5	Cooktop (White)
6	Panel, Manifold (Black)
6	Panel, Manifold (Stainless)
6	Panel, Manifold (White)
7	WPW10160649 Whirlpool Knob
7	WPW10160648 Whirlpool Knob
8	KNOB,POWERBURNER (WHITE)
8	WPW10134134 Whirlpool Knob
9	WPW10134130 Whirlpool Knob
9	WPW10134131 Whirlpool Knob
10	KIT, BURNER GRATE (GREY)
10	KIT, BURNER GRATE (BLACK)
11	WP3368921 Whirlpool Screw
12	WPW10336094 Whirlpool Burner Assembly Top
13	8186321 Whirlpool Range Foot Pads Set of 4
14	WPW10171140 Whirlpool Burner Cap
14	W10171137 Whirlpool Burner Cap
15	W10217535 Whirlpool Screw
16	WPW10333445 Whirlpool Burner Base
17	DEFLECTOR, FLUE (WHITE)
17	DEFLECTOR, FLUE (BLACK)
