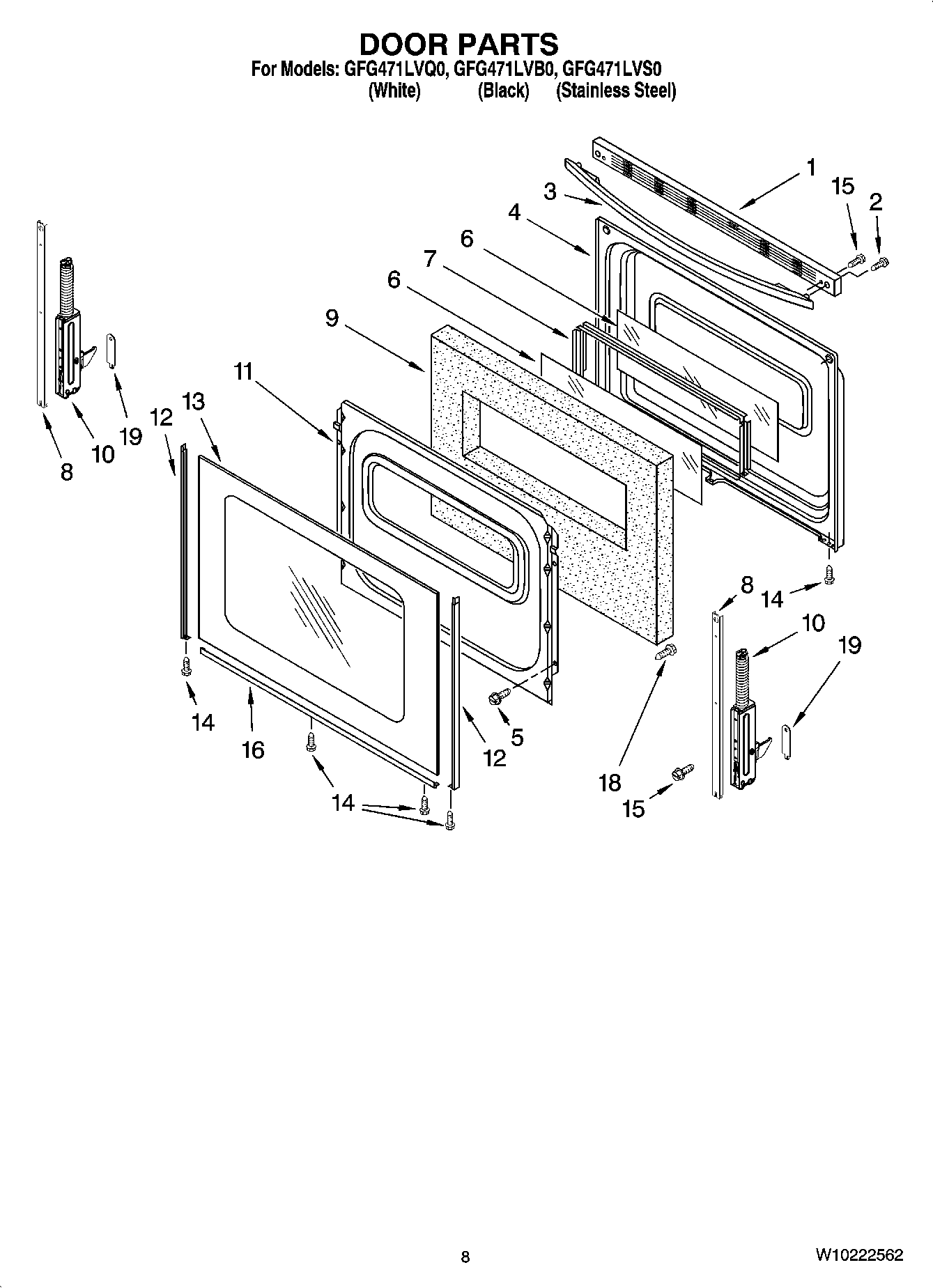

GFG471LVS0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

GFG471LVS0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GFG471LVS0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	W10045060 Whirlpool Grounding Wire
	WPL ARI65095A4
	3400964 Whirlpool Oven Clip
	16515 Whirlpool Clip
	W11244557 Whirlpool Screw
	Harness, Wire (Main)
	W10170249 Whirlpool Wire Harness
	WPL 9758531
	WP3196174 Whirlpool Screw
	8212471 Whirlpool Oven Paint
	3196696 Whirlpool Clip
	Grease
	WPW10701462 Whirlpool Wire Harness
	3196896 Whirlpool Clip
	WPL ARI65096A9
	WPL ARI65097A2
	W11447673 Whirlpool Range Tip Anchor
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL ARI65100A5
	350942 Whirlpool Spray Paint
	511873 Whirlpool Refrigerator Paint
	WPL 799832
	WPW10208653 Whirlpool Insulation
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10339879 Whirlpool Wire Tie
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	WPL ARI65099A6
	285006 Whirlpool Spray
	WPL ARI65098A4
1	W10817433 Whirlpool Vent Trim
1	TRIM-VENT
2	W10817436 Whirlpool Screw
3	W10817434 Whirlpool Door Handle
3	WPW10323589 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	W11502236 Whirlpool Door Trim
9	WPW10278991 Whirlpool Insulation
10	W10347466 Whirlpool Door Hinge
11	W11539580 Whirlpool Retainer
12	W10761014 Whirlpool Right Door Trim
12	WP8523166 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
12	Trim, Door Side (Black Left Hand)
12	8184858 Whirlpool Door Trim
13	WPW10118454 Whirlpool Door Outer Glass White
13	Glass, Outer Door (Black)
14	W10491985 Whirlpool Screw
15	W10777162 Whirlpool Screw
16	WP8523177 Whirlpool Door Trim Assembly
16	WP8523175 Whirlpool Door Trim Assembly
18	WP3196175 Whirlpool Screw
19	9761517 Whirlpool Oven Clip Assembly
