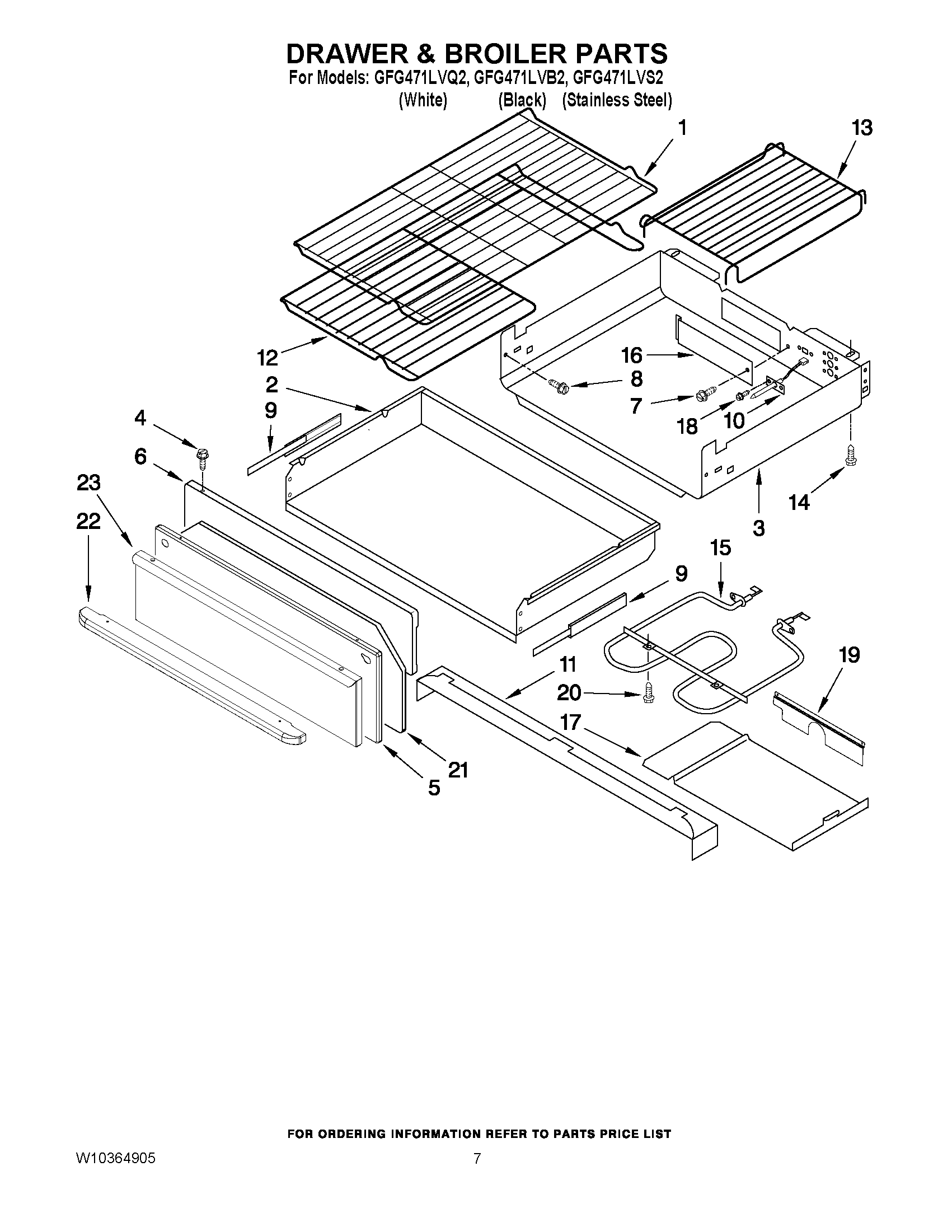

GFG471LVS2 05 – DRAWER & BROILER PARTS

GFG471LVS2 05 – DRAWER & BROILER PARTS

Written by

in

GFG471LVS2 05 – DRAWER & BROILER PARTS

Products

PositionProduct
1RACK-OVEN
2Drawer, Warming
3Enclosure, Drawer
4WPW10031790 Whirlpool Screw
5Toe Panel (Black)
5Toe Panel (White)
6Panel, Inner
7WPY706189 Whirlpool Stove Screw
8WP3400832 Whirlpool Screw
9Slide, Drawer (Right Hand)
9Slide, Drawer (Left Hand)
10WPW10131827 Whirlpool Sensor
11Shield, Drawer
12WP8274021 Whirlpool Oven Rack
13WP8274022 Whirlpool Oven Rack
14SCREW
15ELEMENT, WARMING DRAWER
16Cover, Access
17Baffle, Radiant
19Cover, Element
20WP3196174 Whirlpool Screw
21Insl, Bake Door
22Handle (White)
22Handle (Black)
23PANEL, DRAWER (STAINLESS ONLY)
