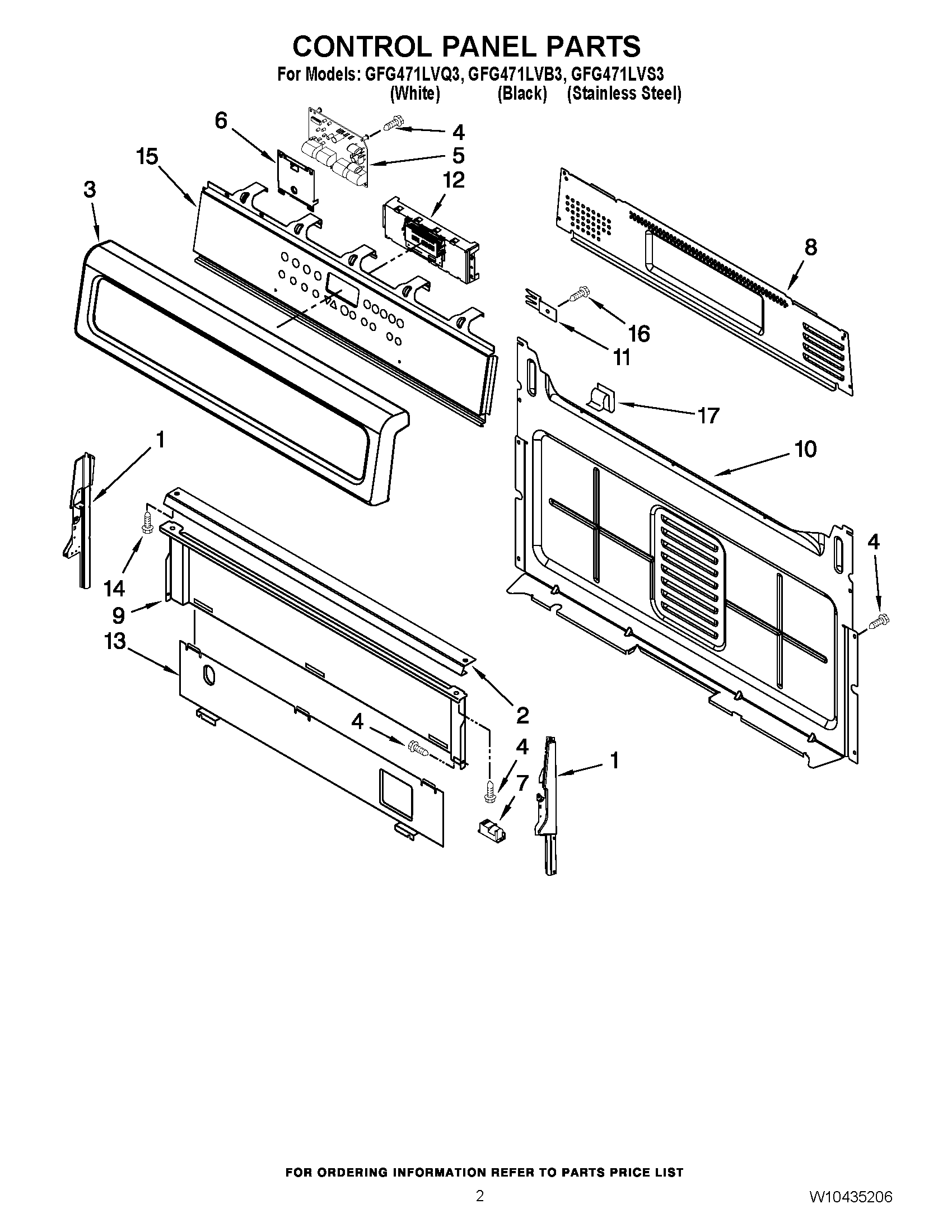

GFG471LVS3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
2Brkt-Mntg, Console
3Panel, Control (White)
3Panel, Control (Black)
3Panel, Control (Stainless)
4WP3196154 Whirlpool Screw Assembly
5WPW10331686 Whirlpool Oven Spark Module
6Brkt-Mntg, DSI
7MODULE, SPARK
8W10198745 Whirlpool Rear Cover
9W10192841 Whirlpool Heat Shield
10W10184251 Whirlpool Rear Cover
118523412 Whirlpool Mounting Bracket
12CONTROL, RANGE EOC
138053505 Whirlpool Oven Shield
14WP3196175 Whirlpool Screw
14WP3400832 Whirlpool Screw
15W10224755 Whirlpool Membrane Switch
15W10224756 Whirlpool Membrane Switch
16WP3196557 Whirlpool Screw
17WP8273564 Whirlpool Clip
