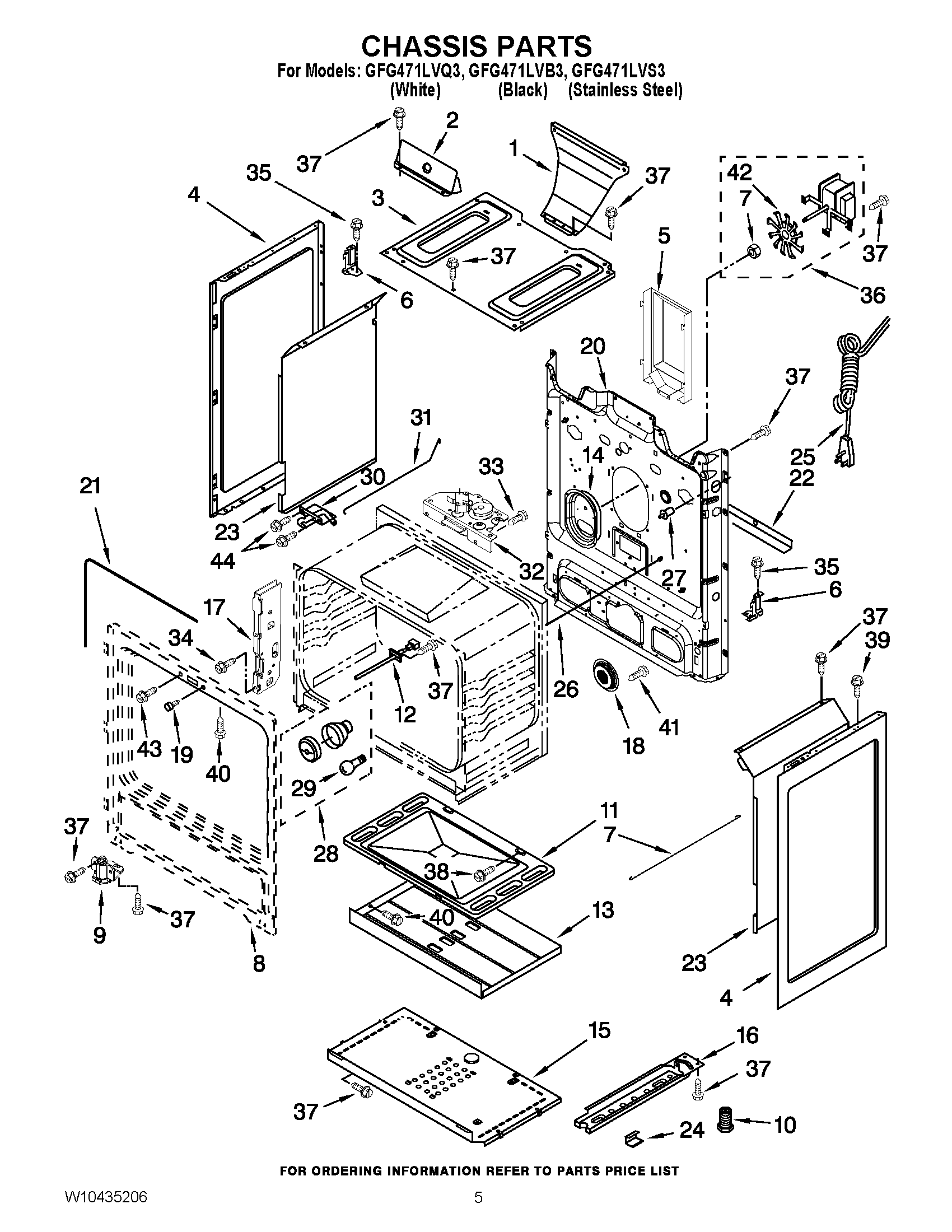

GFG471LVS3 04 – CHASSIS PARTS

Products

Position	Product
NI	W11688737 Whirlpool Insulation
NI	W11684915 Whirlpool Insulation
1	W11457094 Whirlpool Oven Flue
2	WP8272747 Whirlpool Heat Shield
3	W11379351 Whirlpool Burner Box
4	W11730303 Whirlpool Side Panel
4	WPW10575396 Whirlpool Side Panel
5	W10158780 Whirlpool Rear Cover
6	8523249 Whirlpool Oven Support Bracket
7	NUT
8	CABINET (NOT A SERVICEABLE PART)
9	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WP3195097 Whirlpool Oven Bottom
12	WPW10181986 Whirlpool Oven Sensor
13	8053967 Whirlpool Oven Heat Baffle
14	W10134126 Whirlpool Cover
15	8053505 Whirlpool Oven Shield
16	WPW10306546 Whirlpool Base Rail
17	W10647259 Whirlpool Hinge Receiver
18	WPW10134124 Whirlpool Fan Cover
19	W10877054 Whirlpool Spacer Assembly
20	BACK, MAIN
21	W11542153 Whirlpool Door Gasket
22	BRACE, MAIN BACK
23	9761449 Whirlpool Oven Retainer
23	9761448 Whirlpool Oven Retainer
24	W10137382 Whirlpool Clip
25	WP9757891 Whirlpool Power Cord
26	9757239 Whirlpool Oven Door Rod
27	WP9757262 Whirlpool Light Switch
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WP9761013 Whirlpool Door Latch
31	W10078370 Whirlpool Latch Rod
32	WPW10107820 Whirlpool Door Latch
33	W10491985 Whirlpool Screw
34	W10777162 Whirlpool Screw
35	WP3196557 Whirlpool Screw
36	W11676354 Whirlpool Range Convection Fan
38	W10379120 Whirlpool Screw
39	WP3196175 Whirlpool Screw
40	SCREW
41	WP4449809 Whirlpool Screw
42	W10758272 Whirlpool Convection Fan
43	WP3400832 Whirlpool Screw
44	W11169708 Whirlpool Screw
