GFG471LVS3 06 – DOOR PARTS

GFG471LVS3 06 – DOOR PARTS

Written by

in

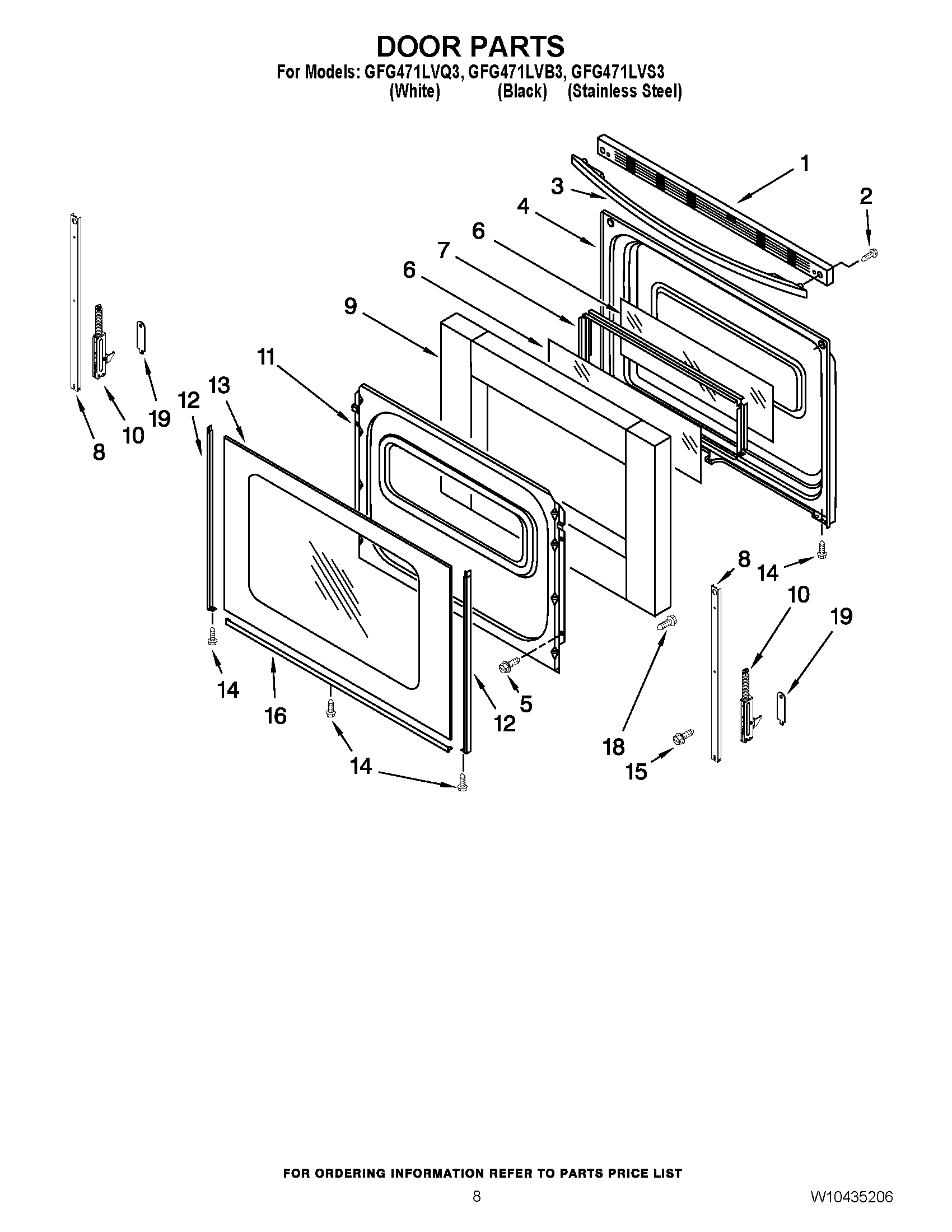

GFG471LVS3 06 – DOOR PARTS

Products

PositionProduct
1TRIM-VENT
1W10817433 Whirlpool Vent Trim
2W10817436 Whirlpool Screw
3W10817434 Whirlpool Door Handle
3WPW10144883 Whirlpool Door Handle
3WPW10323589 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8W11502236 Whirlpool Door Trim
9WPW10278991 Whirlpool Insulation
10WPW10299227 Whirlpool Range Door Hinge
10WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
11W11539580 Whirlpool Retainer
12W10761014 Whirlpool Right Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP8523166 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
13WPW10330077 Whirlpool Door Glass
13WPW10118454 Whirlpool Door Outer Glass White
13WPW10118455 Whirlpool Door Glass Assembly
14W10491985 Whirlpool Screw
15WPW10200660 Whirlpool Range Oven Door Handle Screw
16WP8523175 Whirlpool Door Trim Assembly
16WP8523177 Whirlpool Door Trim Assembly
18WP3196175 Whirlpool Screw
199761517 Whirlpool Oven Clip Assembly
