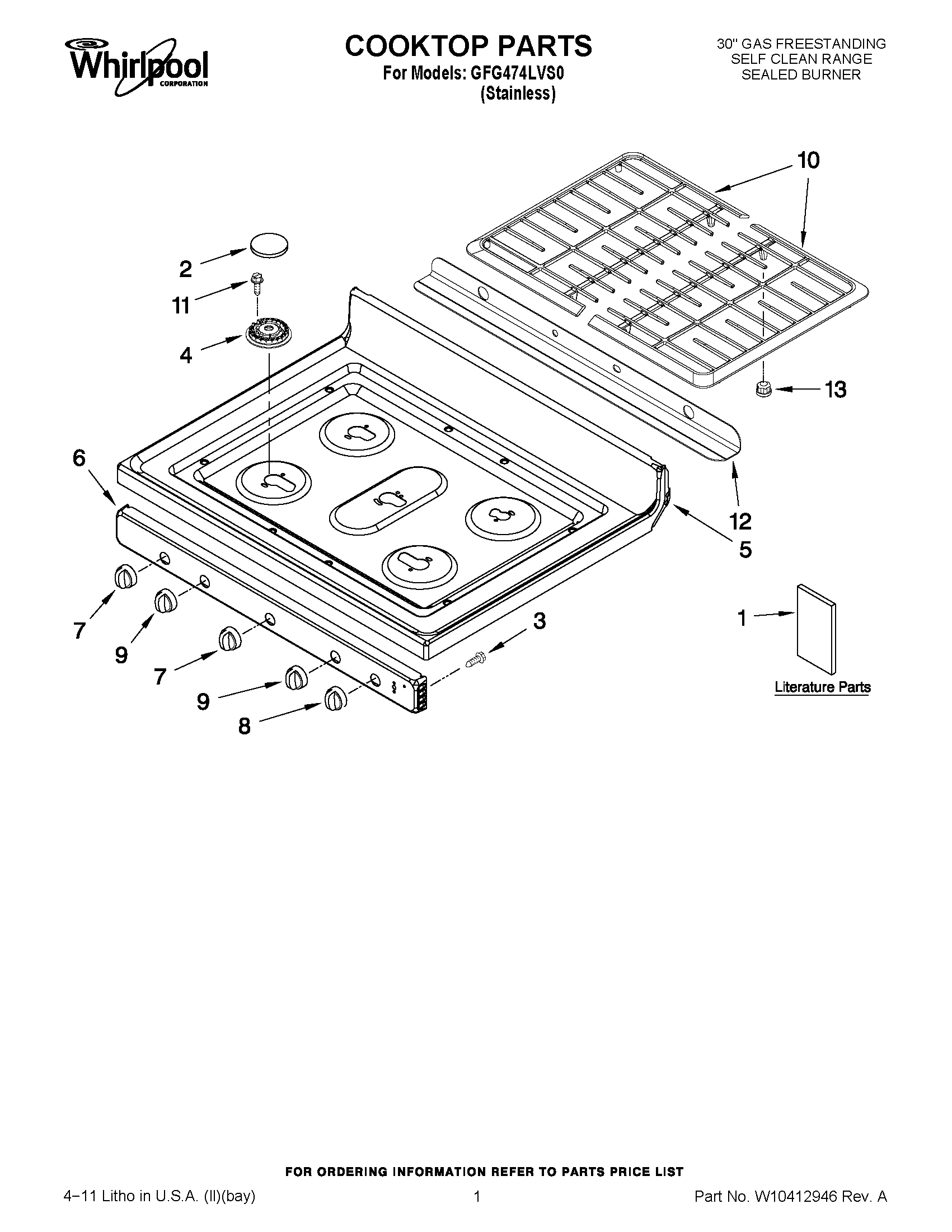

GFG474LVS0 01 – COOKTOP PARTS

Products

PositionProduct
NIGRIDDLE
1USE & CARE GUIDE
1Installation Instructions
1Tech Sheet (English)
1Anti-Tip Template (English/French)
1Anti-Tip Template (English/Spanish)
1SAFER COOKING TIPS (ENGLISH
2WPW10183374 Whirlpool Burner Cap
3WP3196557 Whirlpool Screw
4WPW10406243 Whirlpool Burner Head Auxiliary 6K
4WPW10406878 Whirlpool Burner Base (16K)
4WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
5PANEL, MANIFOLD (BLACK)
5Panel, Manifold (Stainless)
5Cooktop (Black)
7WPW10160649 Whirlpool Knob
8WPW10134134 Whirlpool Knob
9WPW10134131 Whirlpool Knob
10KIT, BURNER GRATE (BLACK)
11WP3368921 Whirlpool Screw
12DEFLECTOR, FLUE (BLACK)
138186321 Whirlpool Range Foot Pads Set of 4
